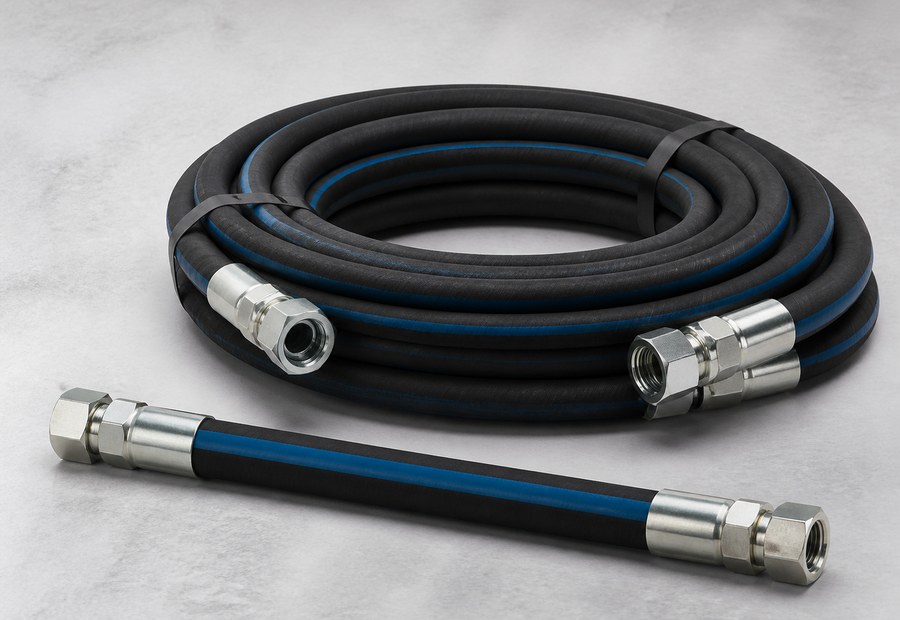

EN854 1TE / 2TE Wrapped Cover Braided Hydraulic Hose

Name: EN854 1TE / 2TE Wrapped Cover Braided Hydraulic Hose - Indo Hydraulics
SKU: EN854-1TE-2TE-WRAPPED-COVER-BRAIDED-HYDRAULIC-HOSE

Review the catalog family, product category and inquiry path before requesting a quote.

Live categories Distributor inquiry Specification review

EN854 1TE / 2TE Wrapped Cover Braided Hydraulic Hose

Quote on request

Catalog product for distributor, OEM, and project inquiry.

SKU: EN854-1TE-2TE-WRAPPED-COVER-BRAIDED-HYDRAULIC-HOSE Categories: EN854 1TE / 2TE, Wrapped Cover Braided Hydraulic Hose

Product Specifications

Specification Table

Catalogue parameters for size, pressure, bend radius and weight. This table can be edited in the product editor.


Metric Size	Imperial Size	SAE Dash Size	Inside DiameterI.D.		Reinforcement O.D.R.O.D.		Outside DiameterO.D.			Max Working PressureW.P.		Proof PressureP.P.		Min Burst PressureB.P.		Min Bend Radiusmin B.R.		WeightW.T.
mm	inch	Dash	Min	Max	Min	Max	Min	Max	Max	MPa	Psi	MPa	Psi	MPa	Psi	inch	mm	kg/m
4.8	3/16"	-3	4.6	5.4	8.9	10.1	11.9	13.5	12.5	21	3045	42	6090	84	12180	3.54	90	0.20
6.3	1/4"	-4	6.2	7.0	10.6	11.7	15.1	16.7	14.1	19.2	2780	39	5580	77	11165	3.94	100	0.25
8	5/16"	-5	7.7	8.5	12.1	13.3	16.7	18.3	15.7	17.5	2540	35	5075	70	10150	4.53	115	0.31
10	3/8"	-6	9.3	10.1	14.5	15.7	19.0	20.6	18.1	15.7	2280	32	4570	63	9135	4.92	125	0.36
12.5	1/2"	-8	12.3	13.5	17.5	19.0	22.2	23.8	21.5	14	2030	28	4060	56	8120	7.09	180	0.45
16	5/8"	-10	15.5	16.7	20.6	22.2	25.4	27.0	24.7	10.5	1520	21	3045	42	6090	8.07	205	0.52
19	3/4"	-12	18.6	19.8	24.6	26.2	29.4	31.0	28.6	8.7	1260	18	2540	35	5075	9.45	240	0.65
25	1"	-16	25.0	26.4	32.5	34.1	36.9	39.3	36.6	7	1015	14	2030	28	4060	11.8	300	0.91

Catalog notes

Description

EN854 1TE / 2TE Wrapped Cover Braided Hydraulic Hose is listed in the customer hydraulic hose and fitting catalogue. Send an inquiry for size, pressure rating, coupling style, and assembly details.
