Description

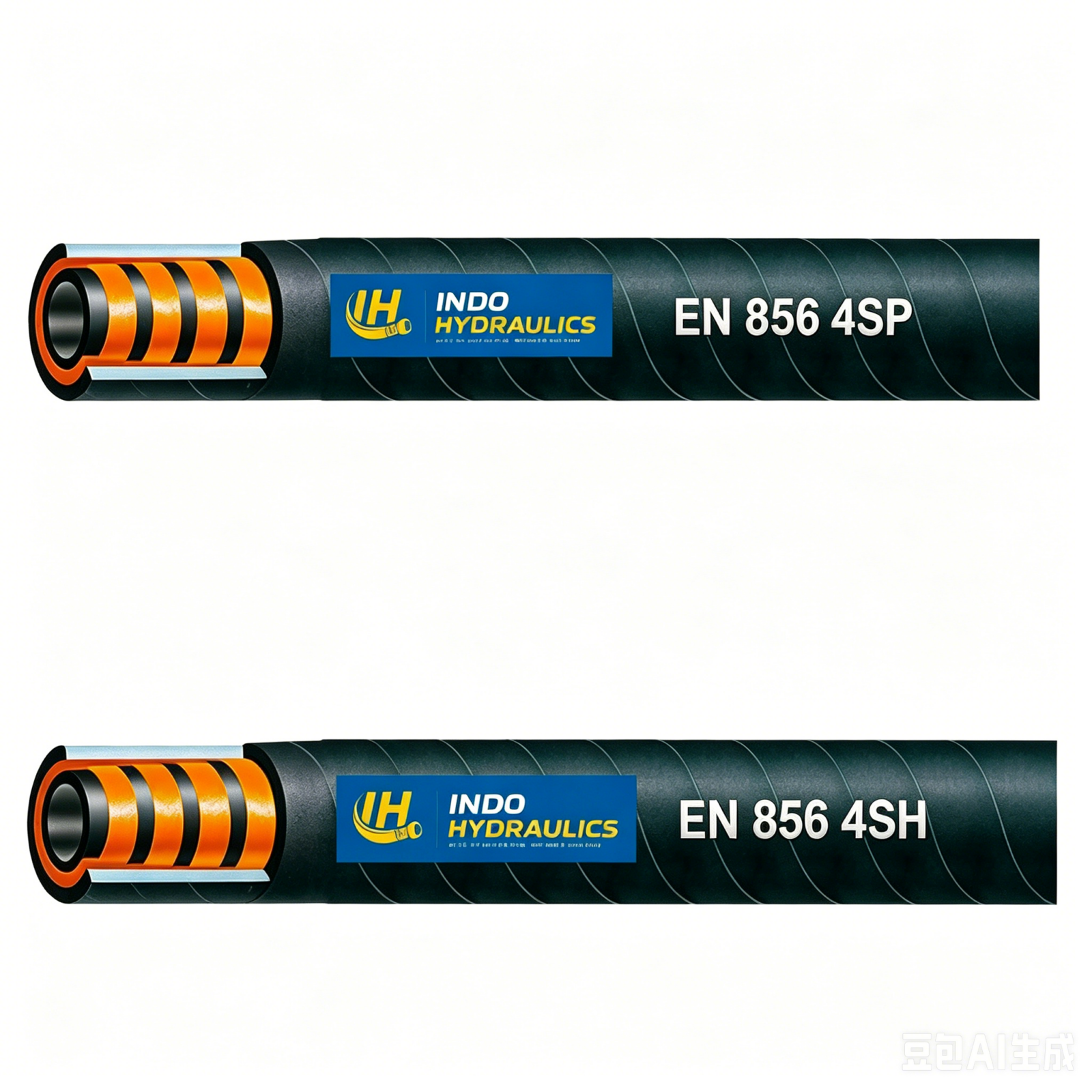

EN856 4SP / 4SH Spiral Hydraulic Hose
EN856 4SP / 4SH Spiral Hydraulic Hose is designed for high-pressure hydraulic systems operating under severe working conditions. Reinforced with four layers of high tensile steel wire spiral reinforcement, these hoses provide outstanding pressure performance, superior impulse resistance, and exceptional durability.
Compared with traditional braided hydraulic hoses, EN856 4SP and 4SH hoses are specifically engineered for heavy-duty hydraulic applications requiring higher working pressure and longer service life.
The wrapped cover construction ensures excellent resistance to abrasion, weather, ozone, and harsh environmental conditions, making the hose ideal for mining, construction, forestry, agriculture, and industrial hydraulic systems.
Construction
Tube: Oil-resistant synthetic rubber
Reinforcement: Four layers of high tensile steel wire spiral reinforcement
Cover: Wrapped synthetic rubber resistant to abrasion, weather, and ozone
Features
- High-pressure spiral hydraulic hose
- Four steel wire spiral reinforcement layers
- Excellent impulse resistance
- Superior abrasion resistance
- Outstanding flexibility
- Long service life
- Suitable for severe operating conditions
Applications
- Mining Equipment
- Excavators
- Construction Machinery
- Wheel Loaders
- Forestry Equipment
- Industrial Hydraulic Systems
- Agricultural Machinery
- Mobile Hydraulic Equipment
Standards
- EN856 4SP
- EN856 4SH
Difference Between 4SP and 4SH
EN856 4SP offers excellent flexibility and is suitable for high-pressure hydraulic systems.
EN856 4SH is designed for even higher pressure applications and provides enhanced durability for extremely demanding working environments.
Temperature Range
-40°C to +100°C (-40°F to +212°F)
OEM Service
Indo Hydraulics provides OEM branding, customized packaging, private label services, and hydraulic hose assembly solutions for distributors, wholesalers, and industrial customers worldwide.
