Safer slope operation
Remote control keeps the operator away from cutter decks, loose footing and flying debris while the machine works on slopes or rough ground.

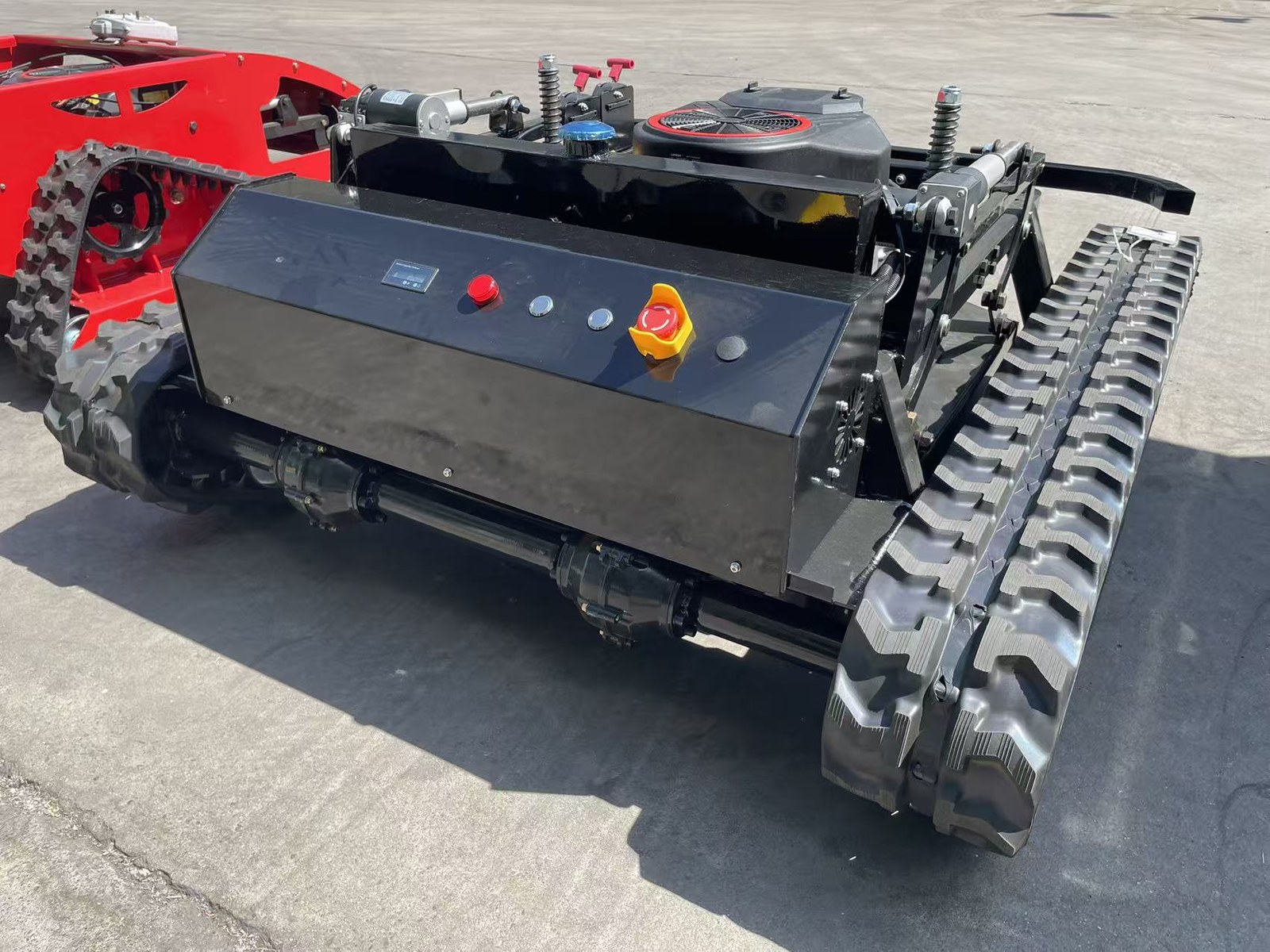

1000mm remote-control mower with crawler traction and 55° climbing capability for slopes, orchards and rough grass.
Configuration Overview
SH-1000DL key fit and buying notes
1000mm remote-control mower with crawler traction and 55° climbing capability for slopes, orchards and rough grass. The content is rebuilt from the 2026 model specification sheet and matched to real product photos.
Configuration-led selling
The 2026 sheet includes engine, battery, runtime, remote range and packing details so buyers can compare options before quotation.
OEM-ready product media
Real machine photos, walkaround footage and factory lineup images are used across the product catalog for a clearer sales presentation.
Product Specifications
| Parameter | Specification |
|---|---|
| Machine / packing size | Machine size: L 1420mm, W 1520mm, H 620mm; Packing size: L 1470mm, W 1570mm, H 750mm |
| Weight | Net approx. 325KG, packed approx. 390KG |
| Operating parameters | Cutting width: 1000mm; Cutting height: 20-180mm; Track width: 150mm; Ground contact: 1000mm; Travel speed: 0-5km/h; Max slope: 55° |
| Engine options | TorqueLine 608CC (electric start, 8L or 10L 92# gasoline); TorqueLine 764CC (8L or 10L 92# gasoline); TorqueLine 803CC (8L or 10L 92# gasoline); IronOak 810CC (8L or 10L 92# gasoline) |
| Export certification | EU5 / EPA |
| Start mode | Electric start |
| Max RPM | 3600r/min |
| Oil capacity | 1600ml |
| Fuel use | 2.2L/h |
| Fuel / tank | 8L or 10L / 92# gasoline |
| Electrical system | DC 24V / 48V range-extended charging generator: brushless 2500W; brushless drive motor: 1000W-1200W×2; copper-gear lift motor: DC 160W×2 |
| Control module | 5V low-voltage PWM integrated port control module reduces component count and wiring harness, lowering terminal failure rates; high-power split-type low-voltage protection controller offers strong heat dissipation, low failure rate and stable operation; brushless controller braking function. |
| Remote type | 2.4G |
| Remote range | 70-800m |

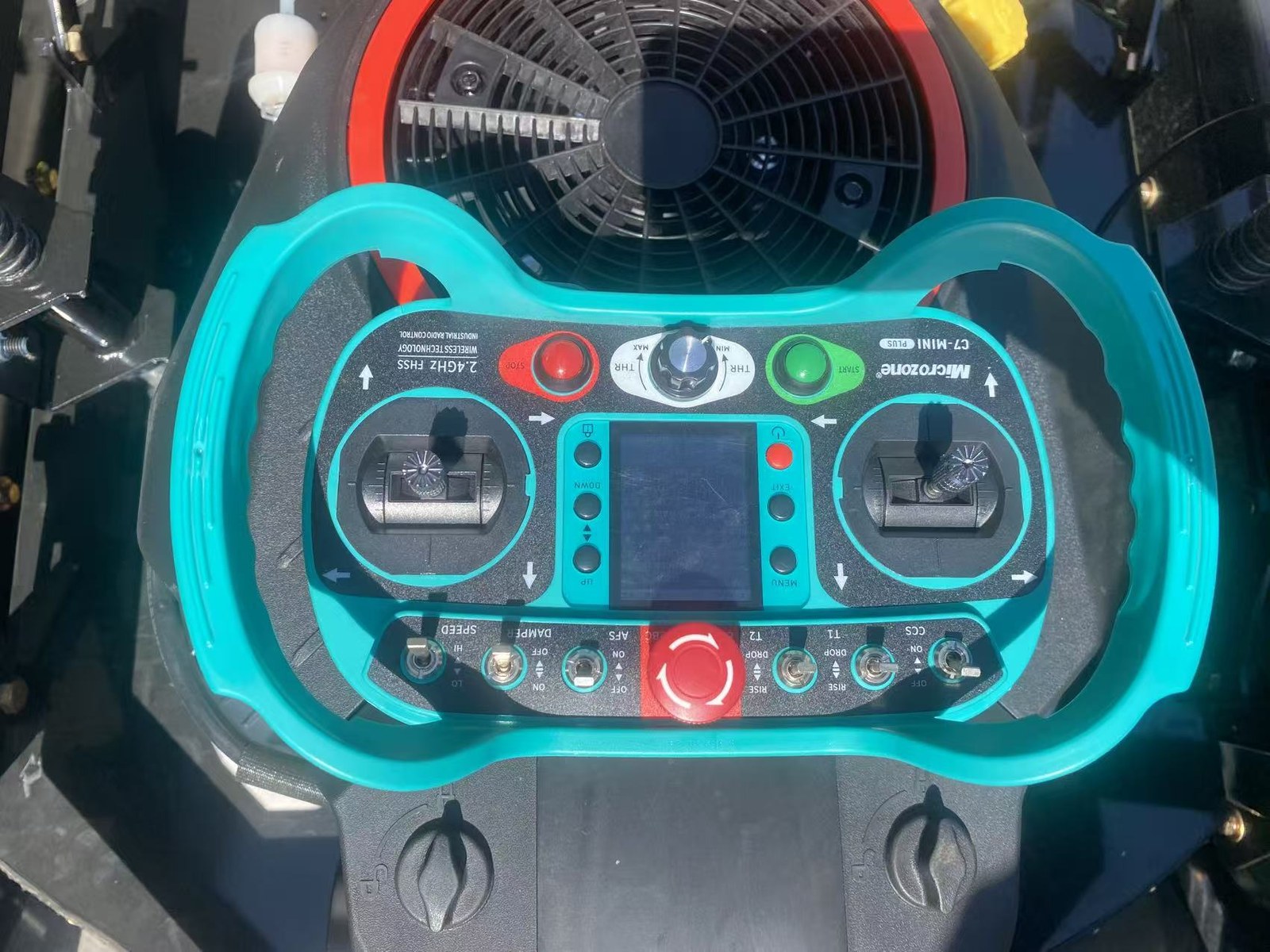

| Remote functions | Remote start/stop; forward/back/left/right turning; engine speed adjustment; cutting height adjustment; cruise control; remote lighting; emergency stop |
| Remote certifications | Korea certification, US FCC, CE, Japan certification, Australia certification |
| Transmit power | ≤1000mW |
| Emergency stop | Standard |
| Signal-loss protection | Standard |
| Brake | Optional |
| Loading quantity | 20ft wooden case: 12 units; 40ft wooden case: 24 units |
Request a quote for SH-1000DL
Share terrain, slope, cutting width, quantity and destination details for this mower model.
