Description

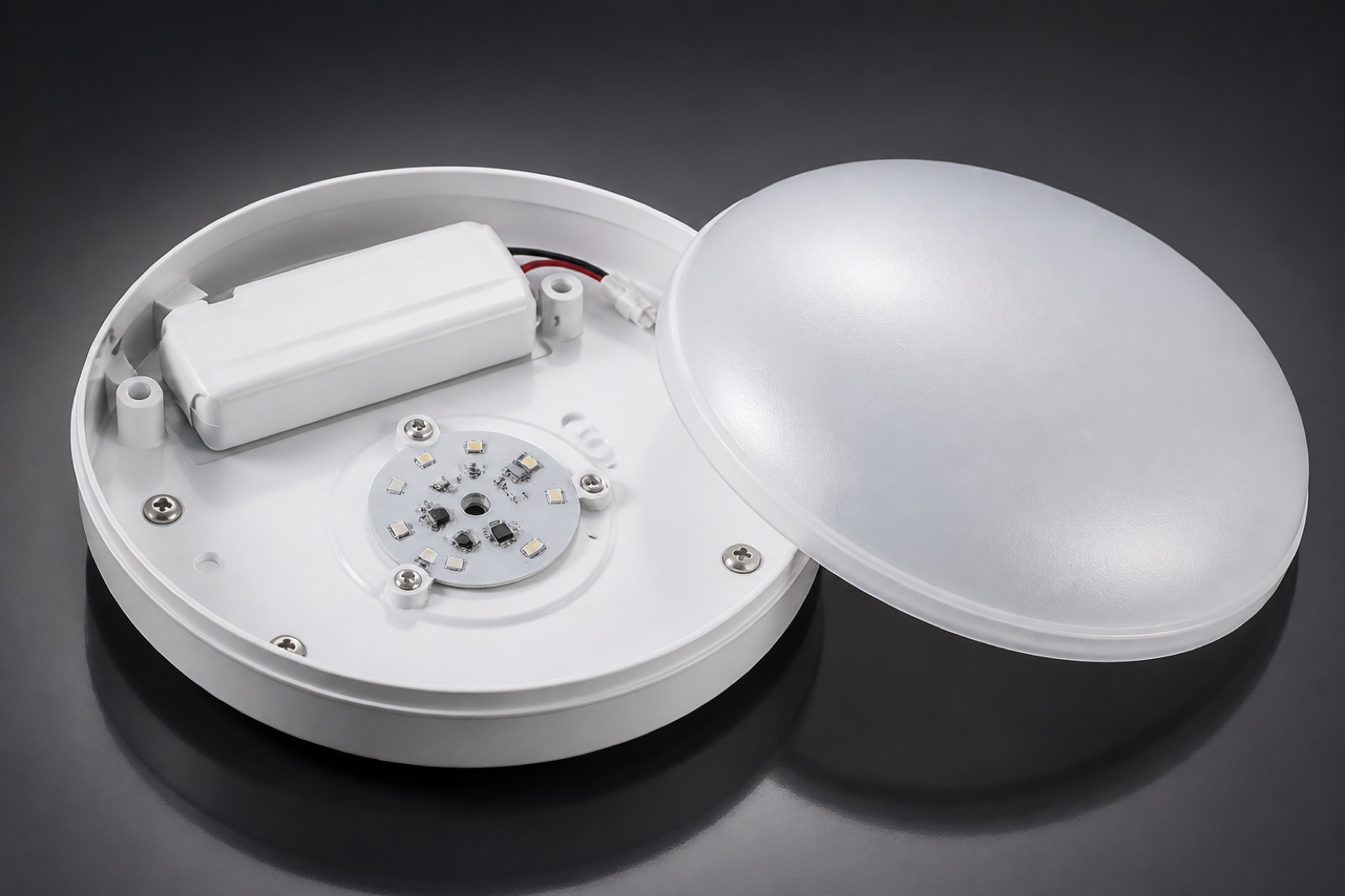

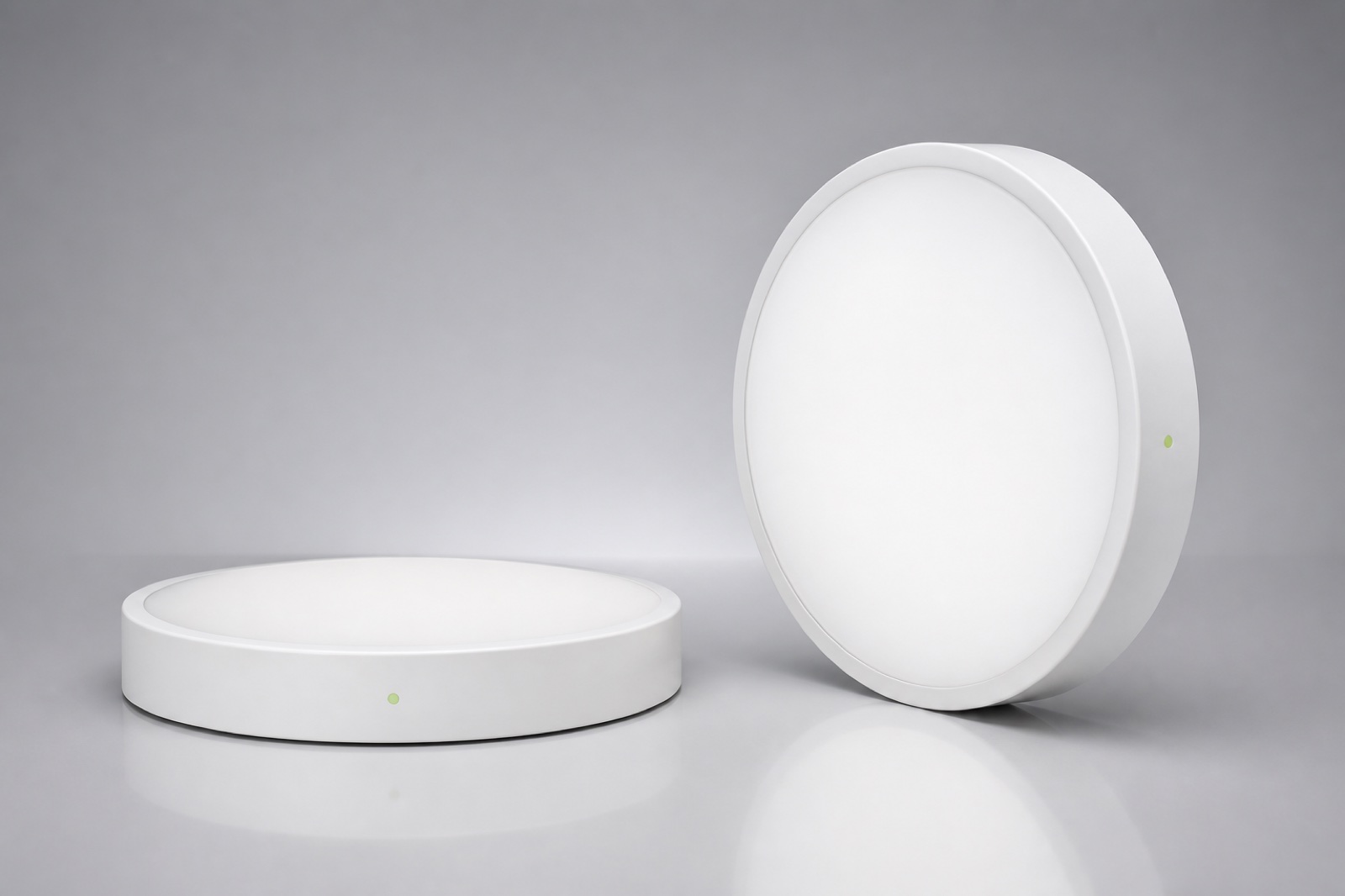

EB-Round is the fitting most projects order by the pallet. A shallow 26mm disc, an opal diffuser that spreads light across the escape route rather than pooling it under the fixture, and a LiFePO4 pack sized for a full 3-hour duration. The base plate takes standard conduit entries on four sides, so it goes up without adapters.
Highlights
- 3-hour duration from a LiFePO4 pack rated for 4 years at 55°C
- Non-maintained, maintained and sustained wiring from the same body
- One-button manual test, with an optional self-test version on the same footprint
- Opal diffuser measured for escape route spacing up to 12m at 1 lux
Typical applications
Corridors, stairwells, lift lobbies, plant rooms, and general escape routes in offices, schools and healthcare buildings.
