Description

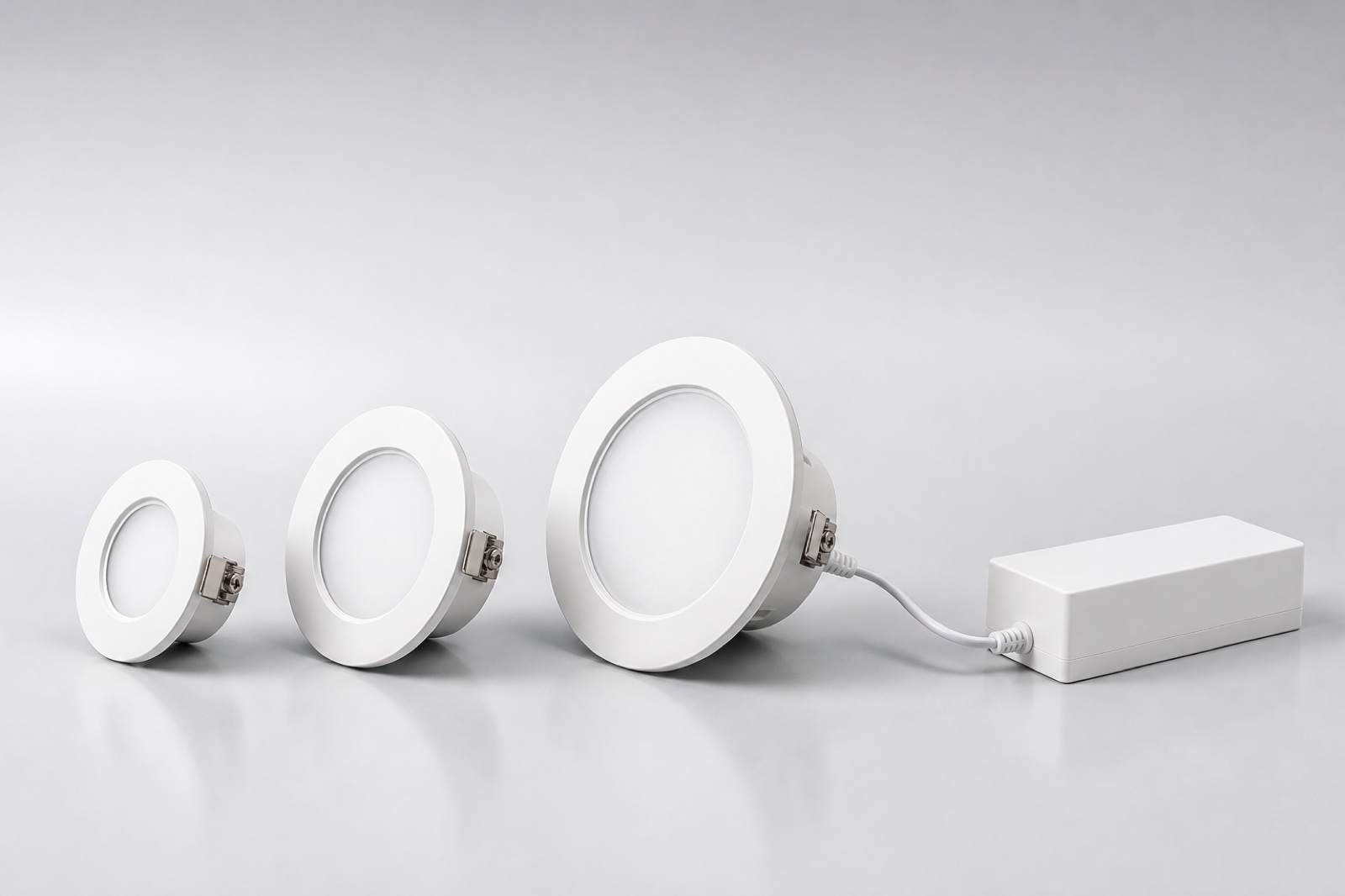

ED-Recessed exists so the emergency provision does not spoil the ceiling. The visible part is a 75mm trim with an opal lens; the battery sits in a separate box above the ceiling on a 1.5m lead, which keeps the aperture small and puts the heaviest component where it can be serviced from the void. Three cut-out sizes cover most grid and plasterboard details.
Highlights
- Ø75mm aperture — the smallest 3-hour recessed emergency in the range
- Remote battery box on a 1.5m lead, serviceable from the ceiling void
- Corridor and open-area lens options measured to the same spacing tables

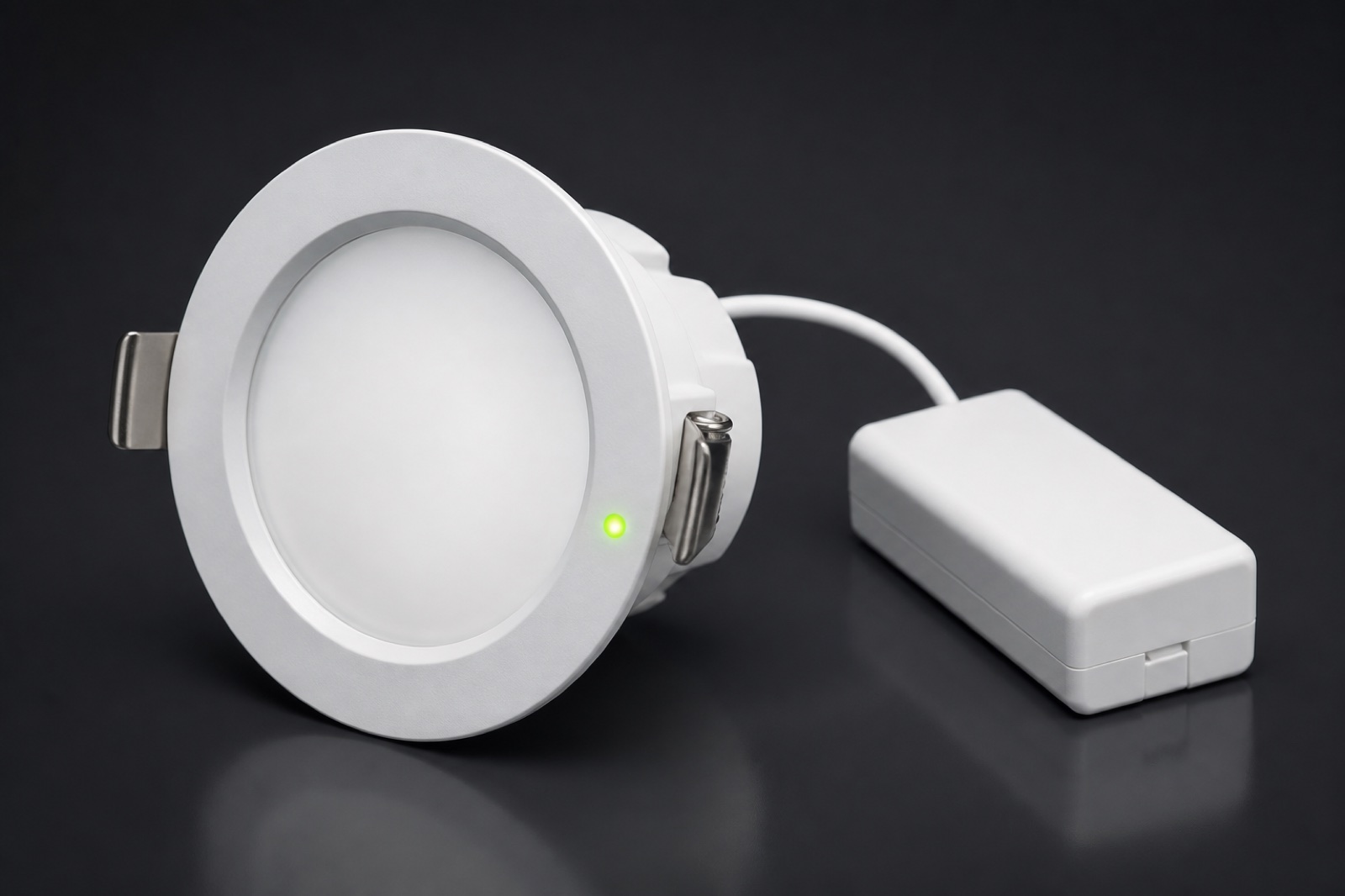

- Green charge indicator visible on the trim without a separate pilot
Typical applications
Hotel corridors, offices with exposed grid or plasterboard ceilings, retail, and residential common areas.
