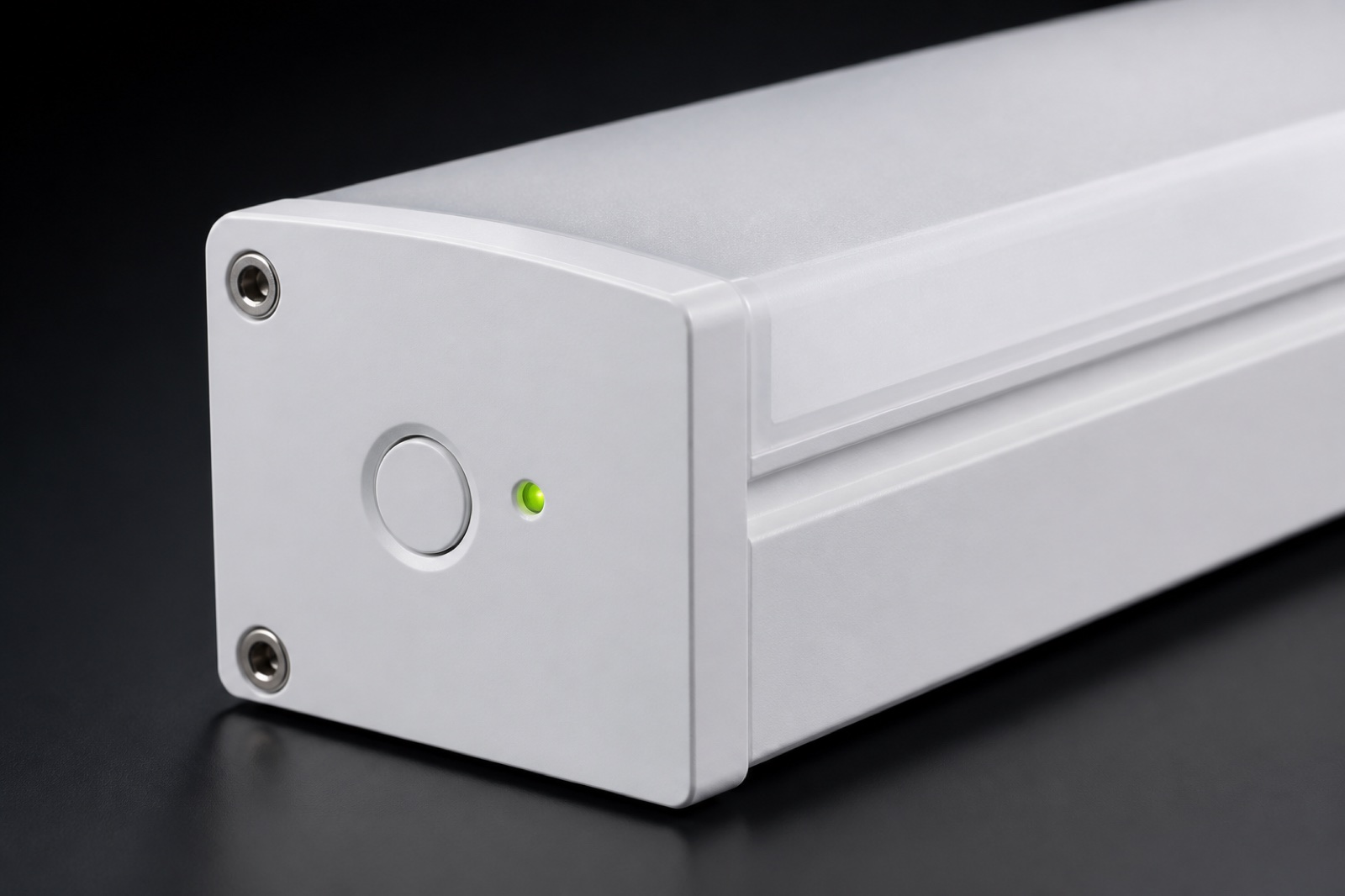

Emergency batten end cap and test button
Compact slim emergency lights

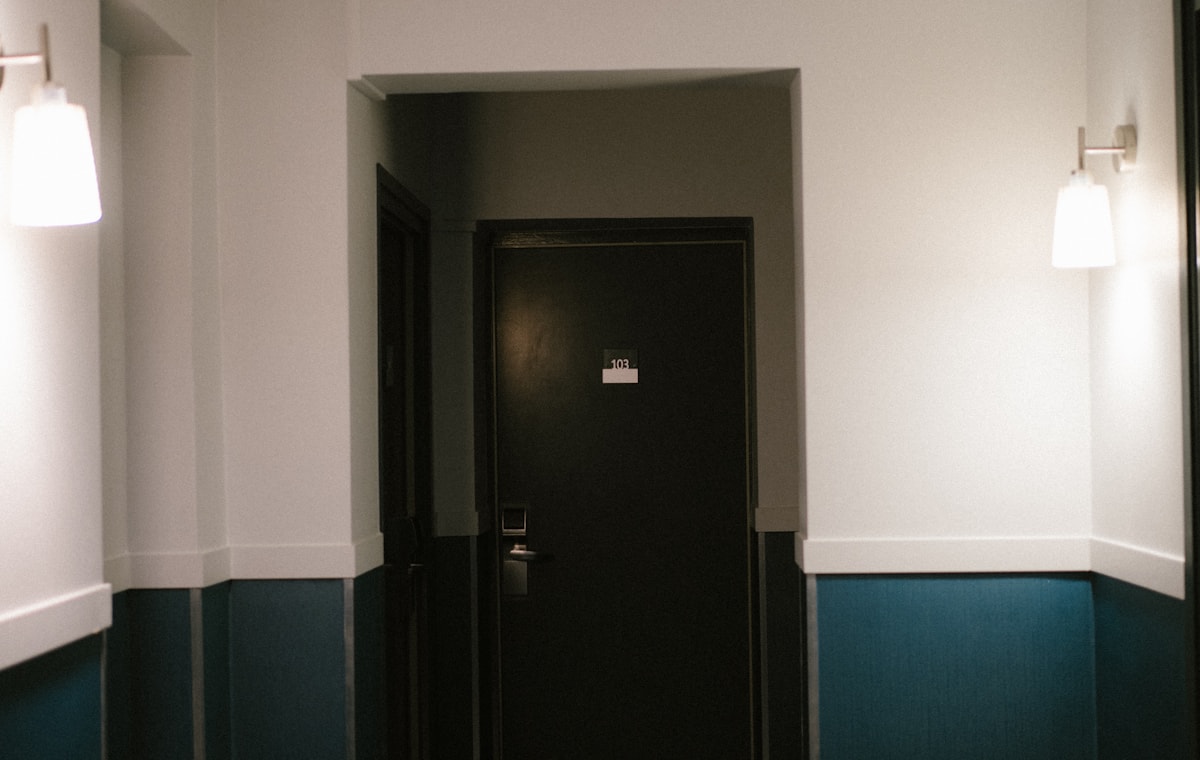

Hotel corridor lighting scene

ES-Batten Slim Emergency Light

Power4W (600mm)
Beam Angle120° opal diffusion
Cut SizeRecessed 20 x 20mm channel (surface kit available)
DimmingNon-maintained / Maintained
Frequency50/60Hz
LED ChipSMD 2835
Installation MethodRecessed, surface or shadow gap
Light Efficiency125lm/W
CCT6000K
CRI≥80
UGR< 19
SDCM<5
IP LevelIP20
MaterialAnodised aluminium extrusion, opal PC diffuser
ColorMatte White, Anodised Silver, Matte Black
AdjustabilityFixed

Share quantity, ceiling conditions, CCT, beam angle, and dimming needs for a faster recommendation.

Product familyEmergency Slim Light

Description

ES-Batten is what gets specified when the emergency light has to disappear into a shadow gap, a handrail or a coffer. The extrusion is 18mm deep with a continuous opal diffuser, and the gear tray runs inside the profile rather than hanging off the end, so the run stays uninterrupted.

Highlights

  • 18mm deep aluminium profile with a continuous opal diffuser
  • Gear and battery inside the profile — no end box breaking the line
  • 300mm, 600mm and 1200mm lengths on the same cross section
  • Recessed, surface and shadow-gap mounting kits available

Typical applications

Shadow gaps and coffers, handrails and stair nosings, hotel corridors, and architectural escape routes.
