Description

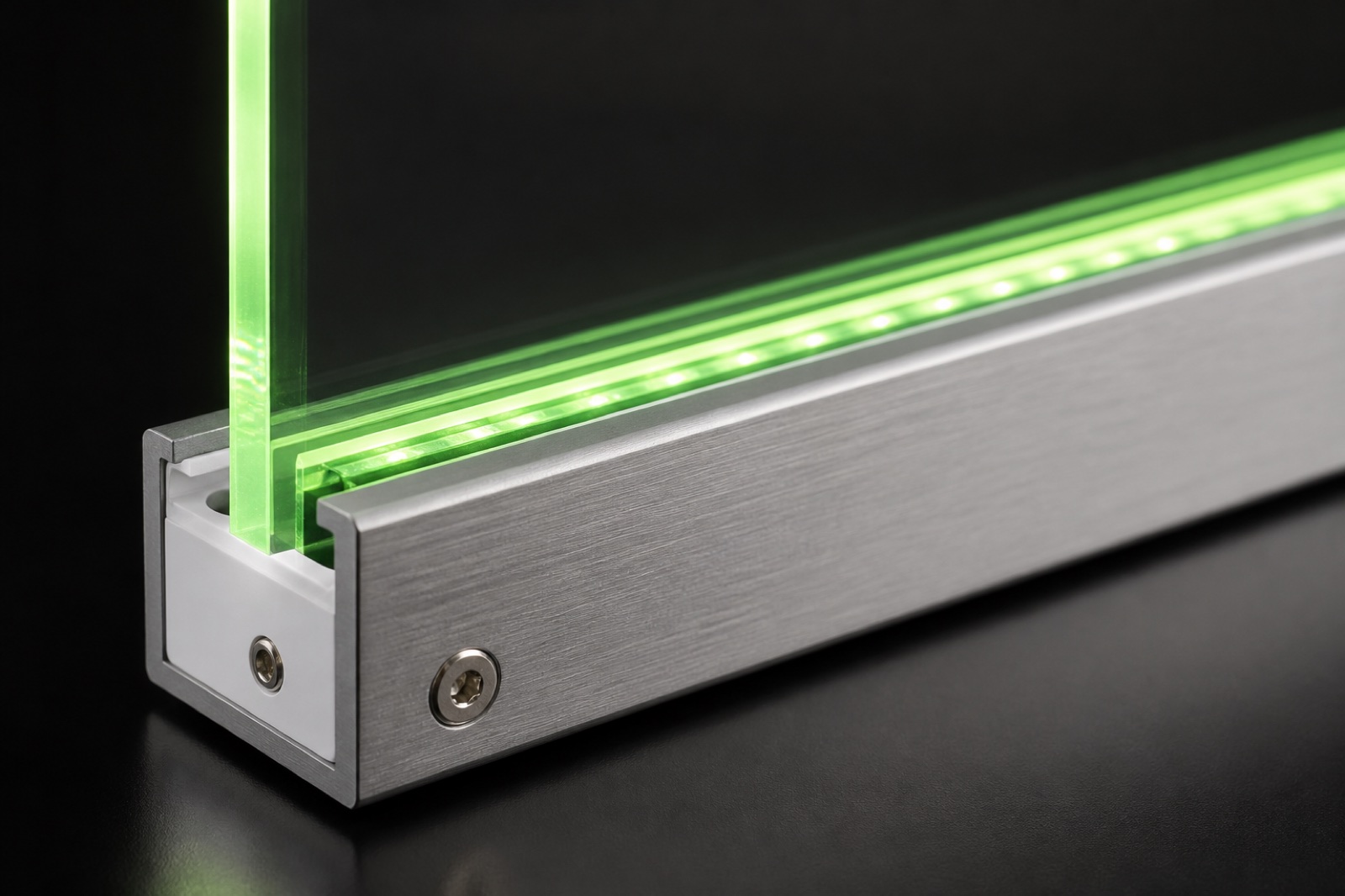

EX-Edge puts the pictogram inside the glass. A row of LEDs in the base injects light into the edge of a clear acrylic panel, and only the engraved running-man and arrow pick it up, so the sign floats. Legends are supplied as reversible slides, which means a left, right or straight arrow is a field decision rather than a separate order code.
Highlights
- Frameless 8mm clear acrylic, engraved pictogram, no visible housing around the panel
- 30m viewing distance to the standard escape-route legend
- Reversible arrow slides — left, right, straight and down from one stocked unit
- Ceiling, wall and recessed bases share the same panel
Typical applications
Hotel and office lobbies, retail flagships, conference centres, museums, and any escape route where a plastic box would look wrong.
