PIR detector with a sealed optics chamber; ignores pets to 25 kg and reports tamper separately from motion.
Response within one business day. Include duty point or application details for a faster match.
| Detection | Passive infrared |
|---|---|
| Coverage | 12 m, 110° |
| Pet immunity | up to 25 kg |
| Tamper | Cover + wall switch |
| Power | 9–16 V DC |
| Operating temp | −10 to 55 °C |
| Warranty | 3 years |

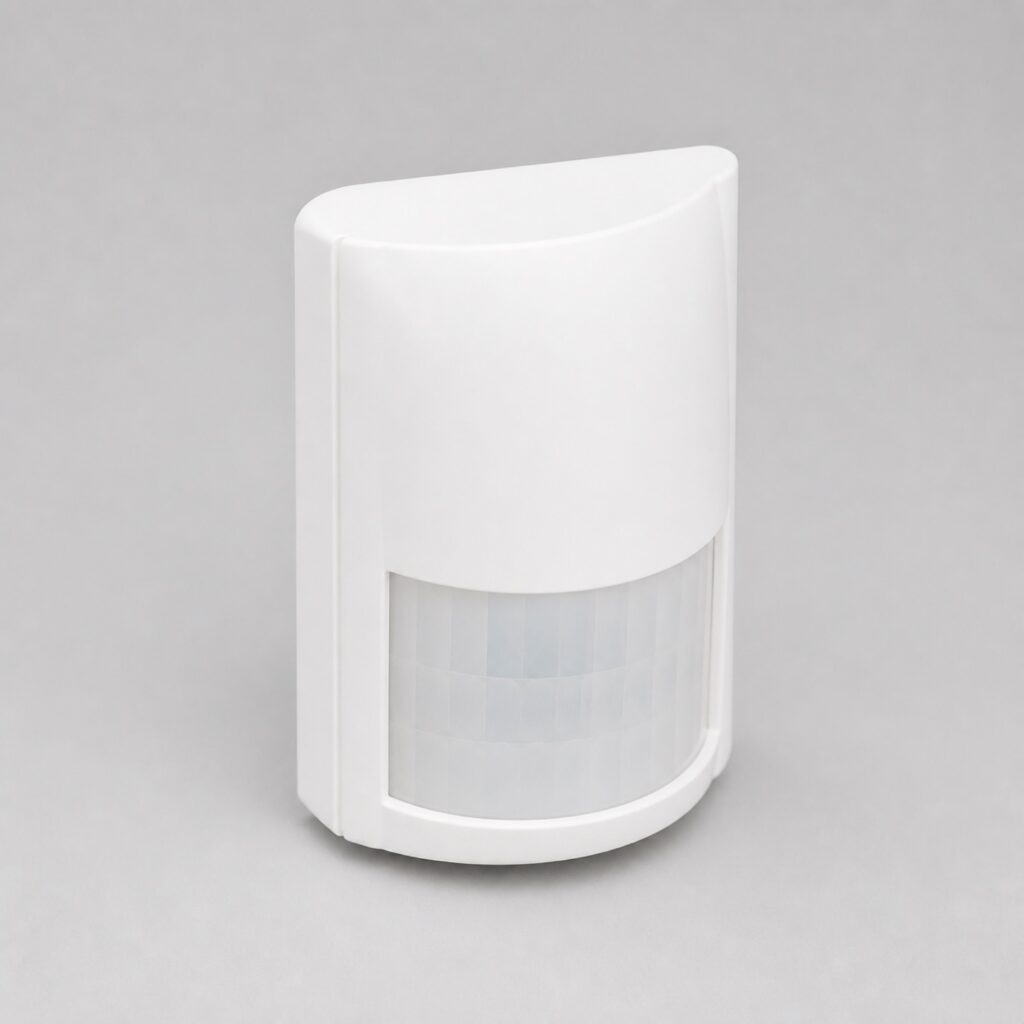

The S6 watches a 12-meter fan of floor with a passive infrared element tuned to ignore anything the size of a cat and notice anything the size of a person. Corner or flat mounting covers a room from the door’s blind side.
Cover and wall tampers report separately from motion, so the panel knows the difference between an intruder and a screwdriver. A sealed optics chamber keeps insects from becoming false alarms.
Reed-and-magnet pair in paintable ABS housings; 20 mm of gap tolerance forgives doors that…
