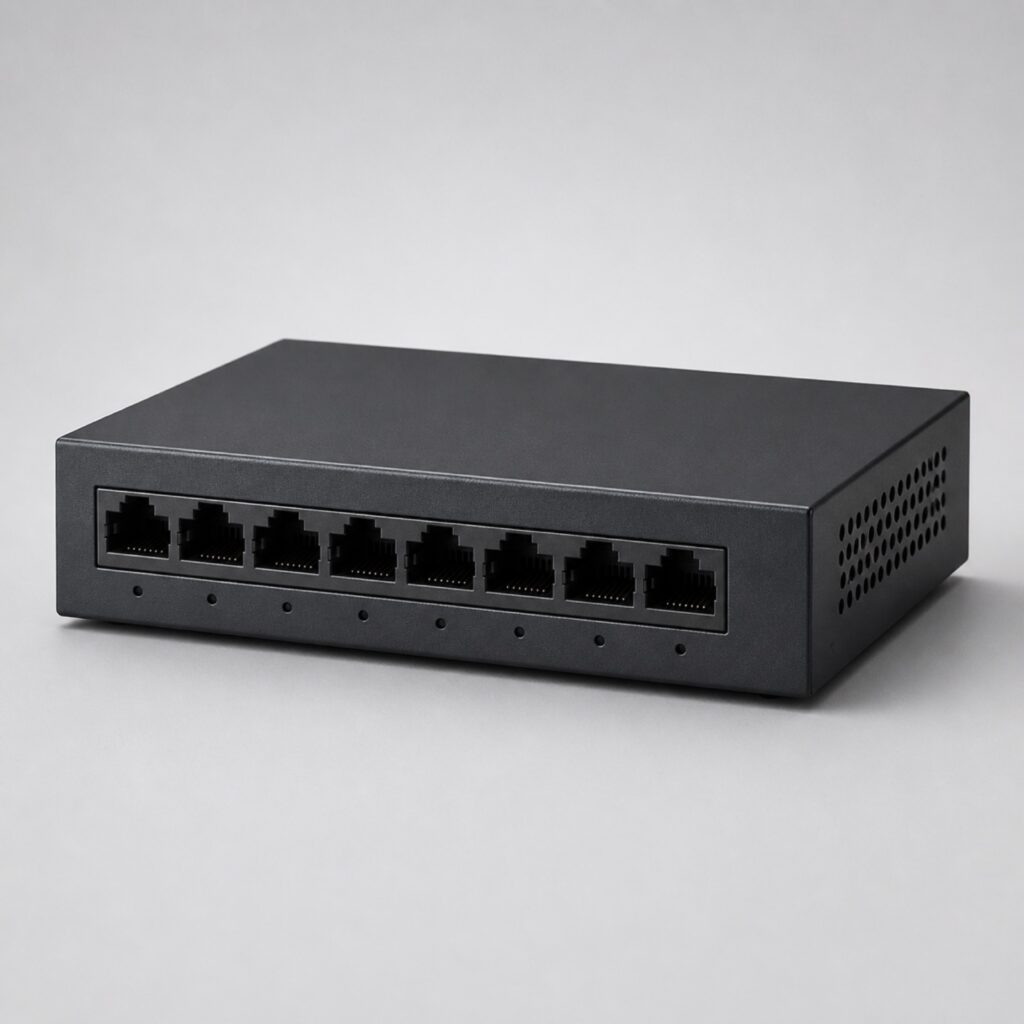

Eight-port gigabit PoE switch in a fanless steel case; extend mode stretches a run to 250 m.
Response within one business day. Include duty point or application details for a faster match.
| Ports | 8 × Gigabit PoE + 2 uplink |
|---|---|
| PoE budget | 120 W (802.3af/at) |
| Switching capacity | 20 Gbps |
| Extend mode | up to 250 m per run |
| Mounting | Desktop, wall or DIN adapter |
| Operating temp | −10 to 55 °C |
| Warranty | 5 years |
The X8 feeds eight cameras with power and gigabit data, holds a 120 W budget without breaking a sweat, and survives the warm corners cameras get installed in. Two uplink ports carry the aggregate stream to the recorder or the core switch.
Extend mode trades speed for distance on runs up to 250 meters — often the difference between one cabinet and two. The fanless steel case mounts on a wall, a shelf or a DIN adapter.
30 W injector in a flame-retardant flat case, for the one run the switch…
