For oils, polymers and anything too thick for a centrifugal, the GearFlow provides steady, pulse-free transfer with pressure held across a wide viscosity band. Hardened gears and bushes take the wear; a relief valve protects the line.
Positive Displacement

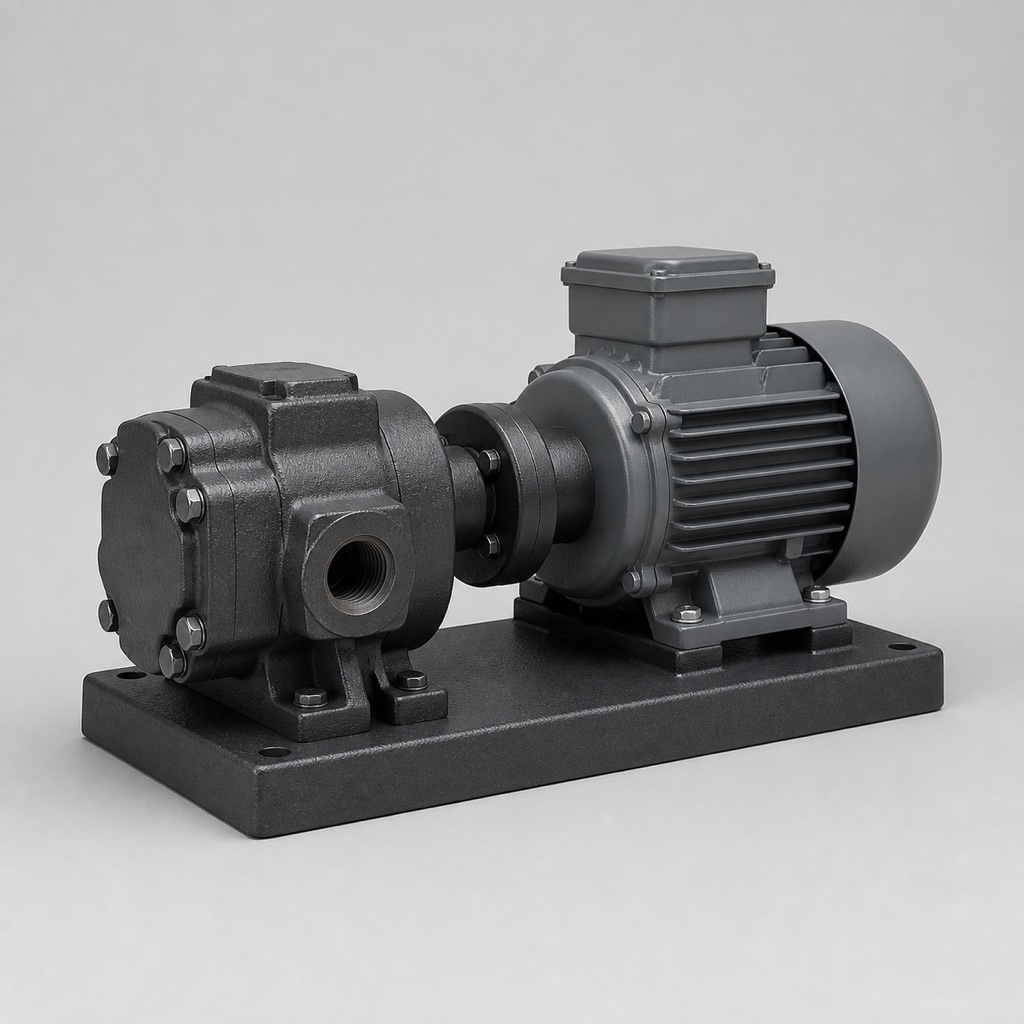

GearFlow Transfer Pump
External gear pump for oils and viscous media, smooth pulse-free delivery.
- Flow rateup to 18 m³/h
- Pressureup to 12 bar
- Viscosityup to 50,000 cSt
- BodyCast iron, hardened gears
Response within one business day. Include duty point or application details for a faster match.
Technical Specifications
| Flow rate | up to 18 m³/h |
|---|---|
| Pressure | up to 12 bar |
| Viscosity | up to 50,000 cSt |
| Body | Cast iron, hardened gears |
| Relief valve | Integrated, adjustable |
| Warranty | 2 years |
