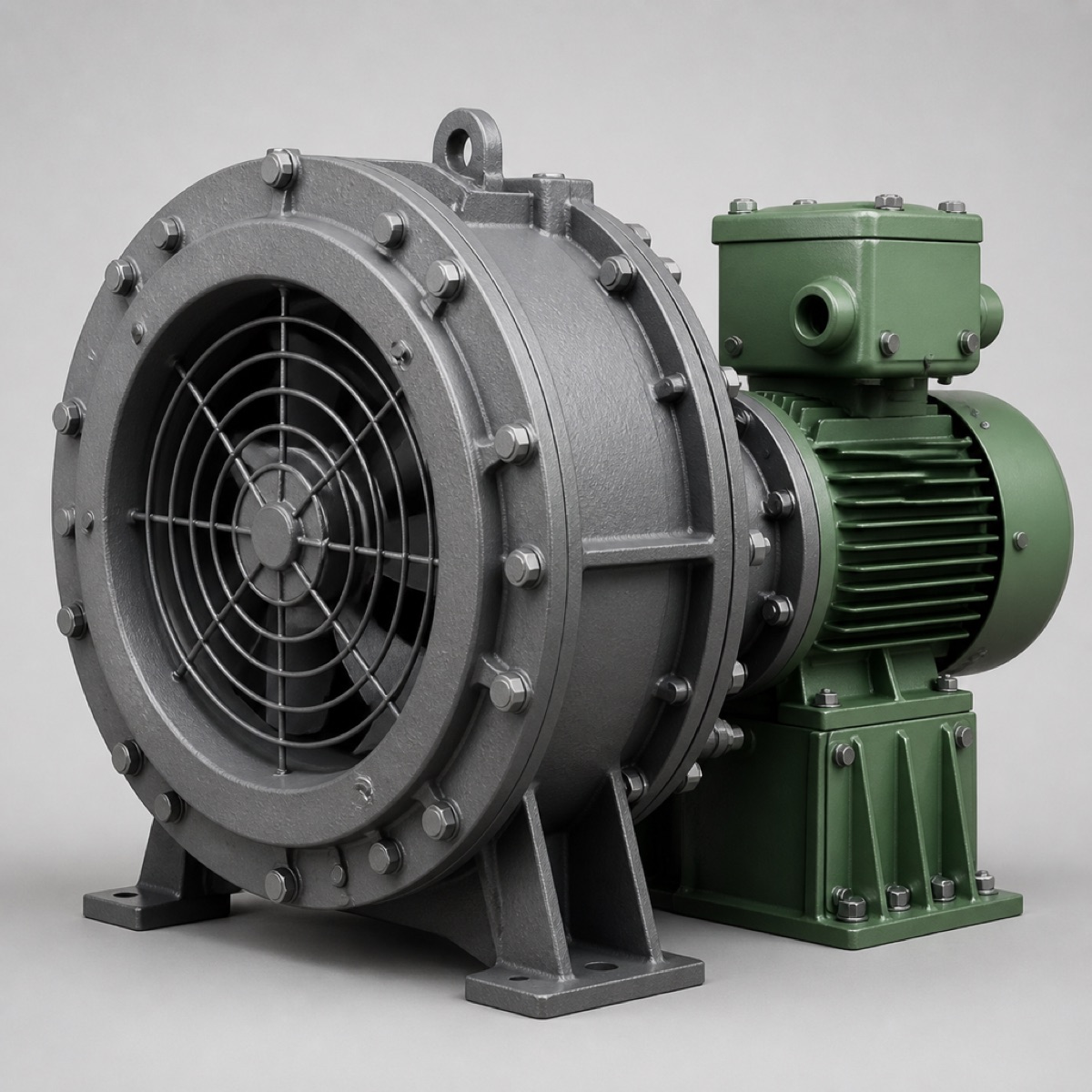

EX-560 Spark-Reduced Axial Fan
A 560 mm axial fan built with non-sparking material pairings and increased clearances, for extract from areas classified as potentially explosive atmospheres.
- Non-sparking material pairing at every potential rub point
- Running clearances increased over the standard fan and recorded at build
- Certified motor supplied as an item by the motor manufacturer
- Zone, gas group, temperature class and surface temperature confirmed before selection
Specifications
- Airflow range
- 5 000 – 26 000 m³/h
- Static pressure
- up to 800 Pa
- Impeller diameter
- 560 mm
- Motor power
- 1.1 – 7.5 kW, certified motor
- Speed
- 950 / 1 450 rpm
- Material pairing
- Aluminium impeller, non-ferrous rub ring
- Earthing
- Shaft and casing bonded to a single earth stud
- Air temperature limit
- -20 °C to +60 °C
Technical notes
Product detail
Fans for classified areas are not a variant of a standard fan with a different motor. The material pairing at every point where a rub could occur, the running clearance, the earthing path and the bearing arrangement all change together, and the equipment category required is set by your own area classification, not by us.
What we build
The EX-560 is built with an aluminium impeller running inside a steel case fitted with a non-ferrous rub ring, giving a material pairing that is not recognised as an ignition source in the standard combinations. Running clearances are increased over the standard fan, shaft and casing are bonded to a single earth stud, and the motor is supplied as a certified item from the motor manufacturer.
Certification
ATEX is a category of equipment for use in explosive atmospheres, defined by the applicable European directives. Placing a fan on that market requires assessment against those directives, and the documentation belongs to the assessed configuration, not to the model name. [Client to confirm which certificates, notified body assessments and equipment category markings are held for this configuration before any of them are stated on this page.]
What we need from you
Send the zone classification, the gas or dust group, the temperature class required and the maximum surface temperature permitted. Without those four, any fan offered is a guess.
Inspection
Clearances are recorded at build and should be re-measured at each scheduled inspection. A fan that was compliant on the day it shipped is not compliant after a bearing has worn.
Enquire about this model
EX-560 Spark-Reduced Axial Fan
Include the airflow, the static pressure and the air temperature and we will confirm the impeller size, the motor rating and the sound data for your duty point.
We reply to every enquiry within one business day.
