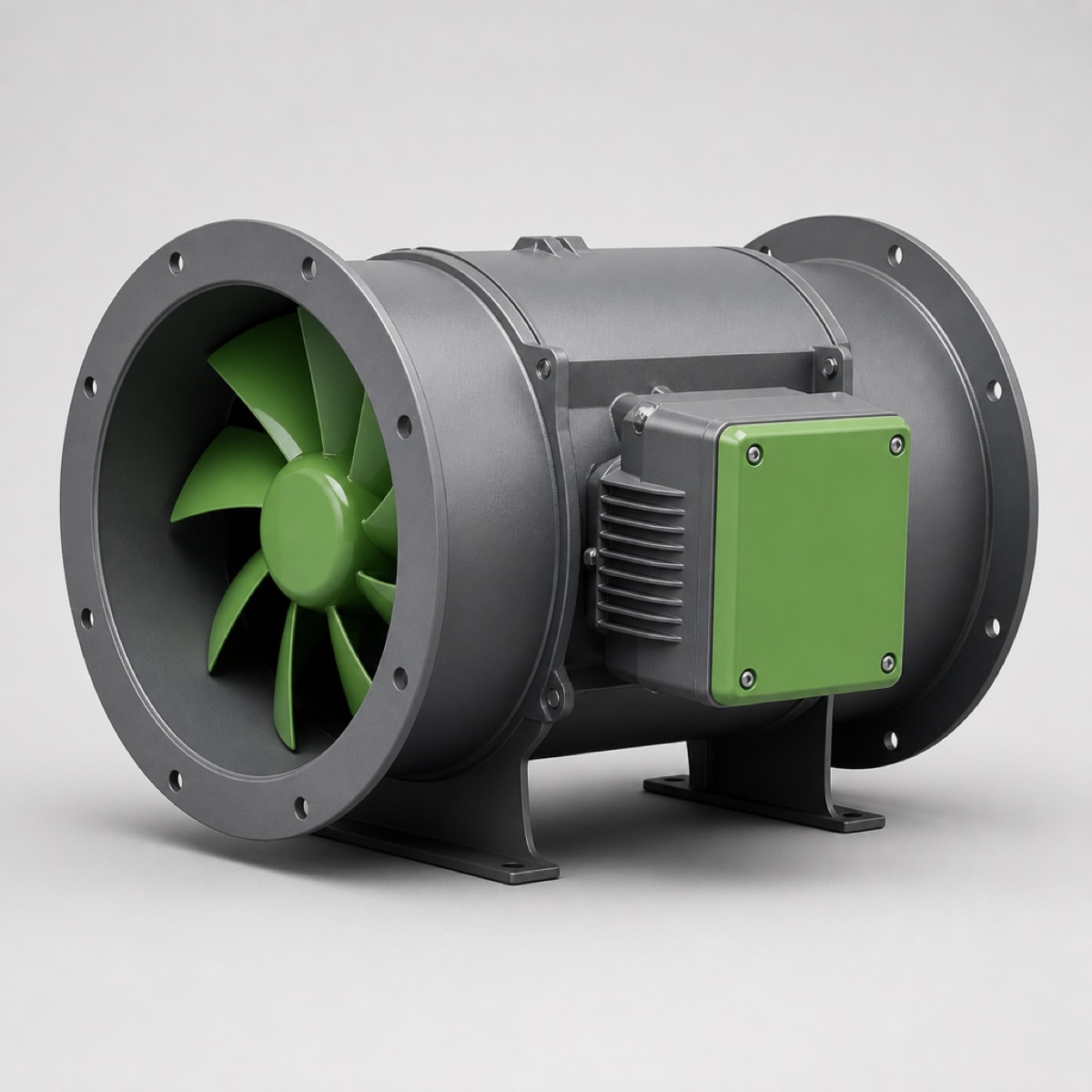

ID-315 Inline Circular Duct Fan
A 315 mm mixed-flow inline fan that mounts in the duct run, for supply, extract and booster duty in occupied buildings.
- Mixed-flow impeller for the moderate resistance of a real duct run
- Acoustically lined casing, with casing-radiated sound data available on request
- Motor and impeller withdraw on a slide plate without breaking duct connections
- EC motor option with 0-10 V or Modbus speed control and current reporting
Specifications
- Airflow range
- 900 – 3 400 m³/h
- Static pressure
- up to 620 Pa
- Duct diameter
- 315 mm
- Motor power
- 0.25 – 1.1 kW, AC or EC
- Speed
- 1 400 – 2 700 rpm
- Sound power level
- 64 – 81 dB(A), ISO 13347 method
- Casing material
- Galvanised steel, acoustically lined
- Air temperature limit
- -20 °C to +60 °C
Technical notes
Product detail
Inline fans are specified when there is no room for a plant area and the fan has to live in the duct itself. The ID-315 uses a mixed-flow impeller, which sits between an axial and a centrifugal on the pressure/volume trade-off and suits the moderate resistance of a real duct run with bends in it.
Noise in occupied space
Because the fan is inside the building envelope, casing-radiated noise matters as much as in-duct noise. The casing is acoustically lined as standard. Where the fan passes through a ceiling void above a quiet room, ask for the casing-radiated figure specifically; the in-duct value is the one usually quoted and it is the wrong one for that question.
Mounting orientation
The fan can be installed horizontally or vertically. Antivibration mounts are supplied and should be used; a rigid mount into a plasterboard ceiling grid will transmit the running frequency into the room below regardless of how quiet the fan is.
Maintenance access
The motor and impeller assembly withdraws from the casing on a slide plate, so the duct connections stay in place during service. Allow the withdrawal length beside the fan when you set out the duct.
Control
EC motor option available, which gives smooth speed control down to low flow without a separate drive and reports its own running current over a 0-10 V or Modbus interface.
Enquire about this model
ID-315 Inline Circular Duct Fan
Include the airflow, the static pressure and the air temperature and we will confirm the impeller size, the motor rating and the sound data for your duty point.
