Safer slope operation
Remote control keeps the operator away from cutter decks, loose footing and flying debris while the machine works on slopes or rough ground.
1200mm remote-control mower with crawler traction and 55° climbing capability for slopes, orchards and rough grass.
Configuration Overview
SH-1200LB key fit and buying notes
1200mm remote-control mower with crawler traction and 55° climbing capability for slopes, orchards and rough grass. The content is rebuilt from the 2026 model specification sheet and matched to real product photos.
Configuration-led selling
The 2026 sheet includes engine, battery, runtime, remote range and packing details so buyers can compare options before quotation.
OEM-ready product media
Real machine photos, walkaround footage and factory lineup images are used across the product catalog for a clearer sales presentation.
Product Specifications
| Parameter | Specification |
|---|---|
| Machine / packing size | Machine size: L 1650mm, W 1400mm, H 1000mm; Packing size: L 1720mm, W 1470mm, H 1130mm |
| Weight | Net approx. 370KG, packed approx. 440KG |
| Operating parameters | Cutting width: 1200mm; Cutting height: 20-380mm; Track width: 150mm; Ground contact: 1000mm; Travel speed: 0-5km/h; Max slope: 55° |
| Engine options | DuraCore 195F (recoil / electric start, 5.5L -10# diesel); TorqueLine 459CC (recoil / electric start, 10L 92# gasoline); TorqueLine 622CC (electric start, 10L 92# gasoline); TorqueLine 764CC (electric start, 10L 92# gasoline); TorqueLine 999CC (electric start, 10L 92# gasoline) |
| Export certification | EU5 |
| Start mode | Recoil / electric start |
| Max RPM | 3000r/min |
| Oil capacity | 1650ml |
| Fuel use | 1.9L/h |
| Fuel / tank | 5.5L / -10# diesel |

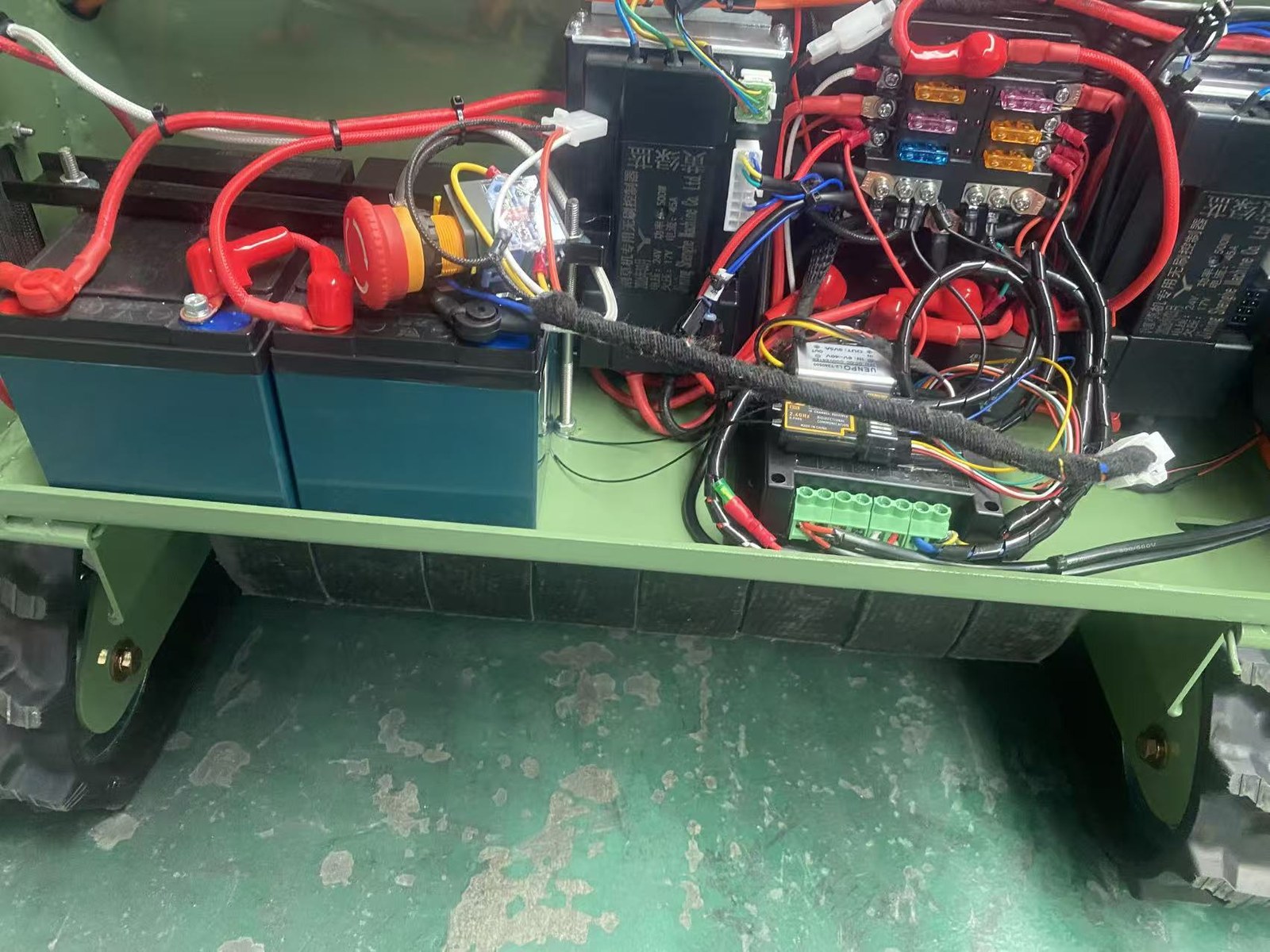

| Electrical system | DC 24V with dedicated 12V 37Ah starter battery; range-extended charging generator: brushless 2500W; drive motor: 1000W×2; hydraulic lift motor: DC 300W, max thrust 2.5T, actuator speed 5-6mm/s |
| Control module | 5V low-voltage PWM integrated port control module reduces component count and wiring harness, lowering terminal failure rates; high-power split-type low-voltage protection controller offers strong heat dissipation, low failure rate and stable operation; brushless controller braking function. |
| Remote type | 2.4G |
| Remote range | 70-800m |
| Remote functions | Remote start/stop; forward/back/left/right turning; engine speed adjustment; cutting height adjustment; cruise control; remote lighting; emergency stop |
| Remote certifications | Korea certification, US FCC, CE, Japan certification, Australia certification |
| Transmit power | ≤1000mW |
| Emergency stop | Standard |
| Signal-loss protection | Standard |
| Brake | Optional |

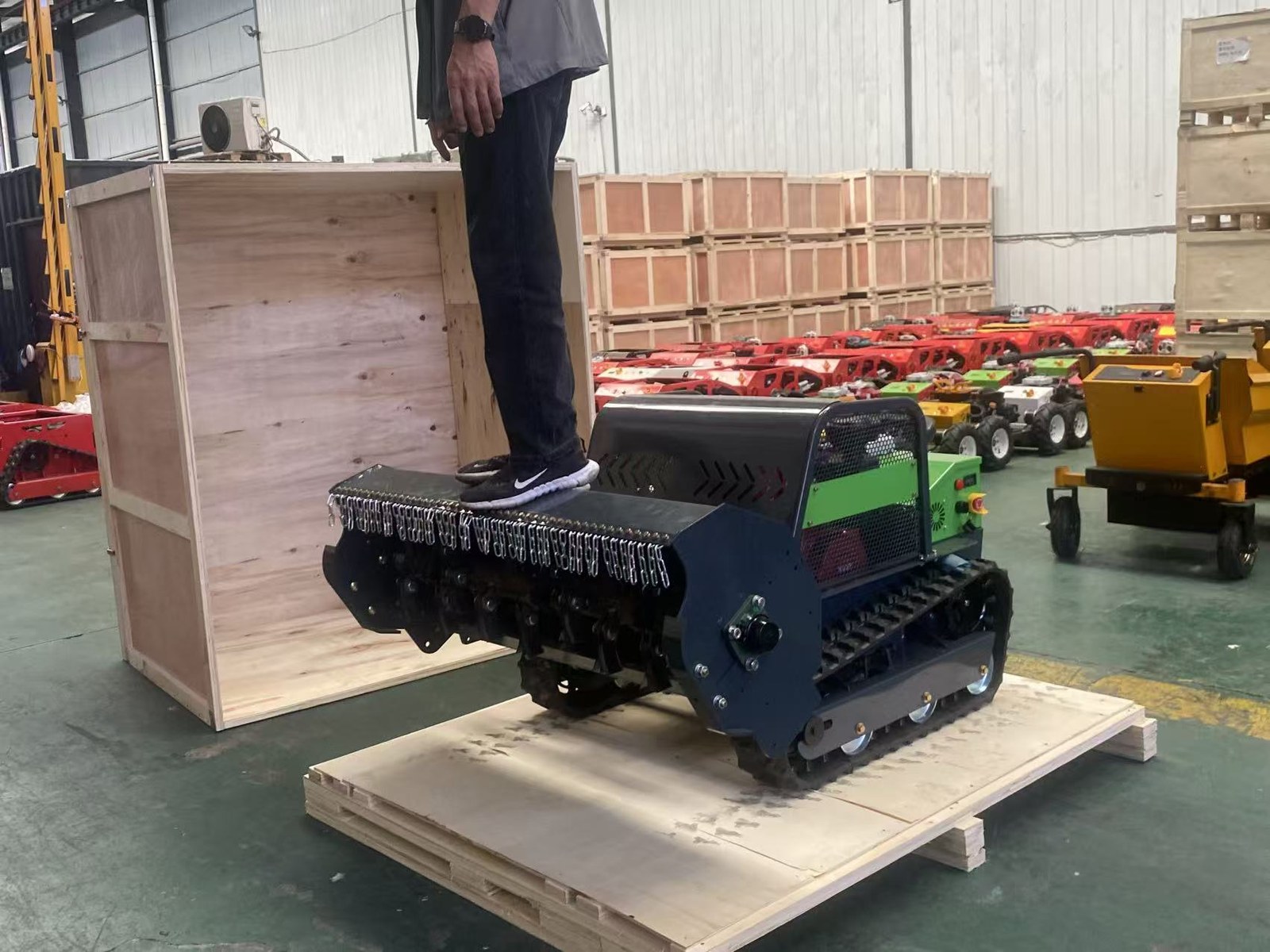

| Loading quantity | 20ft wooden case: 8 units; 40ft wooden case: 16 units |
Request a quote for SH-1200LB
Share terrain, slope, cutting width, quantity and destination details for this mower model.
