One box that manages array, battery and backup circuits together.
Response within one business day. Include duty point or application details for a faster match.
| Dimensions | 515 × 440 × 185 mm |
|---|---|
| Rated Power | 10 kW AC |
| Efficiency | 97.5% peak |
| Operating Range | −25 °C to +60 °C |
| Weight | 24 kg |
| Certification | IEC 62109, CE |
| Warranty | 10 years |

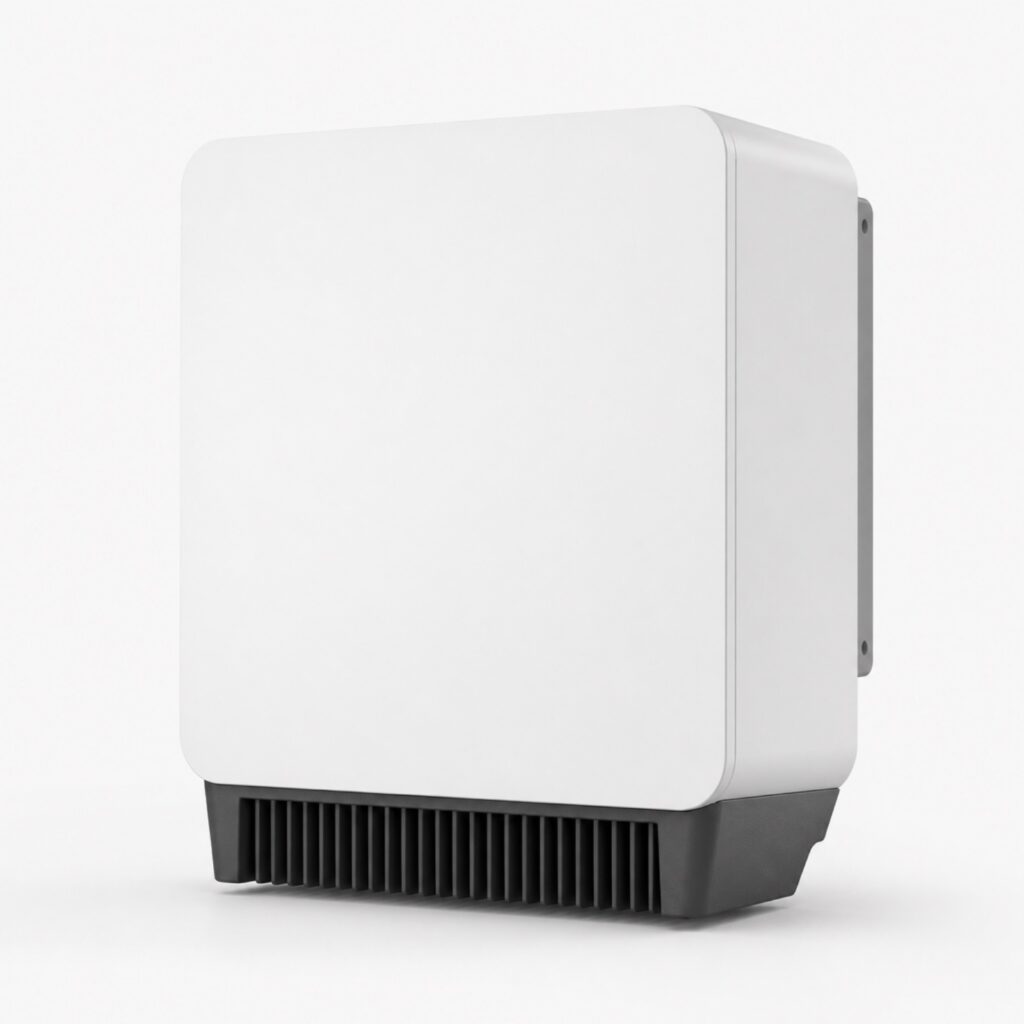

The HV-H10K is the heart of a storage-ready system: a 10 kW hybrid inverter that charges the battery from the array, feeds the house, and switches essential circuits to backup within milliseconds when the grid drops.
Battery coupling is high-voltage DC, keeping conversion losses low, and the integrated energy manager follows a simple priority you set: self-consumption first, backup reserve second, export last. It pairs natively with the HV-E series batteries.
An 8 kW dual-MPPT string inverter built for hot roofs and long days.
