Seeding & Planting

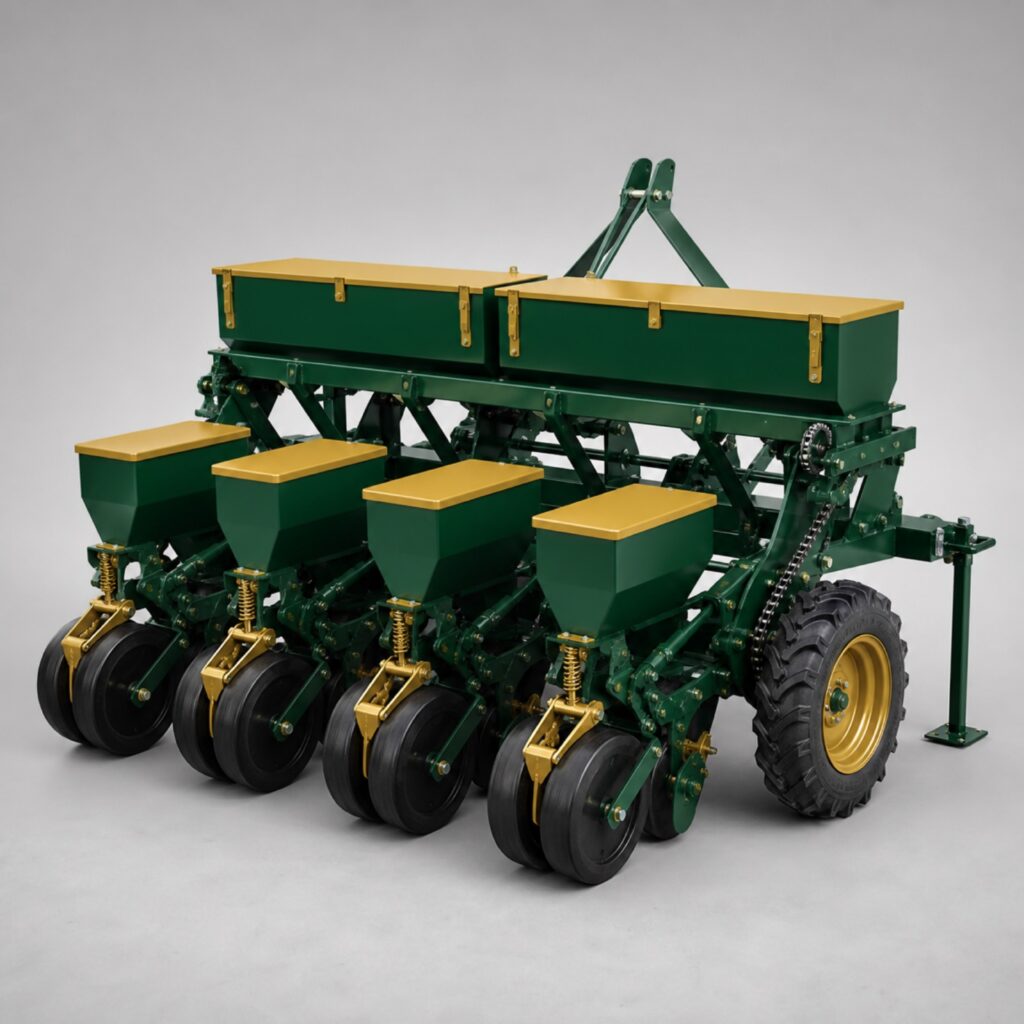

AS-P160 Mechanical Planter

Ground-driven plate metering and steel fertilizer boxes — no fan, nothing hydraulic to maintain.

  • Dimensions2,750 × 1,900 × 1,480 mm
  • Working Width2.4 m, 4 rows at 60 cm
  • Power RequirementTractor 60–90 hp class
  • CapacitySeed boxes 30 L per row, fertilizer 60 L per row

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions 2,750 × 1,900 × 1,480 mm
Working Width 2.4 m, 4 rows at 60 cm
Power Requirement Tractor 60–90 hp class
Capacity Seed boxes 30 L per row, fertilizer 60 L per row
Weight 890 kg
Certification CE machinery directive design basis
Warranty 24 months

Overview

The AS-P160 uses proven mechanical seed plates and ground-driven metering — no fan, no hydraulic demand, and very little that a farm workshop cannot maintain. Press wheels close the furrow with adjustable pressure, and steel fertilizer boxes band starter fertilizer beside the row.

Plate sets cover common row crops, and changing them is a lunchtime job with the supplied plate kit. The toolbar accepts row-unit spacing changes on clamped brackets, so the same frame plants different crops through the season.
