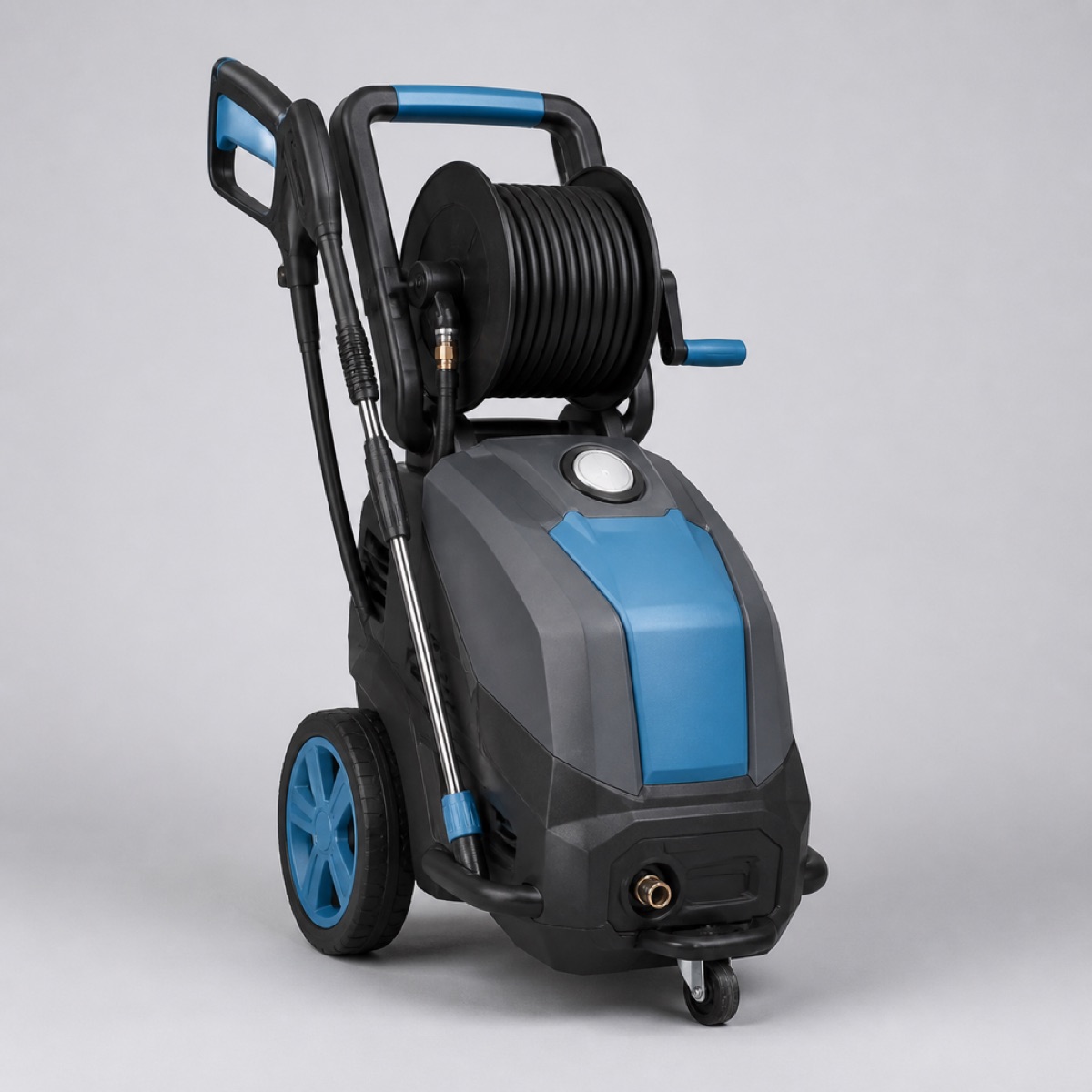

PW-200 Cold Water Pressure Washer

A 200 bar three-phase cold water washer with a brass pump head, for yards, vehicles and plant a scrubber cannot reach.

Slow-running 1,400 rpm pump instead of a high-speed one

Pressure adjusted at the unloader, not by changing nozzles

Detergent injected after the pump, so nothing corrosive passes through it

Hose reel mounted above the pump, clear of standing water

Specifications

Working pressure: 40 – 200 bar, adjustable at the unloader
Flow rate: 900 L/h
Pump: 3-piston, brass head, ceramic pistons, 1,400 rpm
Power source: 400 V three phase, 5.5 kW
Inlet water: up to 60 °C
Sound pressure: 76 dB(A) at 1 m
Hose: 10 m fitted, reel takes 20 m
Weight: 78 kg

Product detail

Every site has surfaces that a scrubber will never clean: loading bays, bin stores, vehicle chassis, plant guarding. The PW-200 is the machine for those, built around a slow-running three-piston pump rather than a high-speed one, because pump speed is what decides how long a washer lasts in daily use.

Pump

A brass head with ceramic pistons runs at 1,400 rpm. Working pressure is adjustable at the unloader from 40 to 200 bar, so the same machine strips a concrete apron and washes a painted vehicle panel without swapping nozzles for every job.

Water supply and detergent

Inlet water up to 60 °C is accepted, which matters where a site already has a hot supply. Detergent is drawn through a low-pressure injector after the pump, so nothing corrosive passes through the pump head.

On the yard

The frame is a folded steel skid on 250 mm wheels with the hose reel mounted above the pump, out of the water. Ten metres of high-pressure hose is standard and the reel takes twenty. Motor protection, isolation and the electrical connection on site are matters for a qualified installer, and [Client to confirm the supply arrangements offered with this model].
