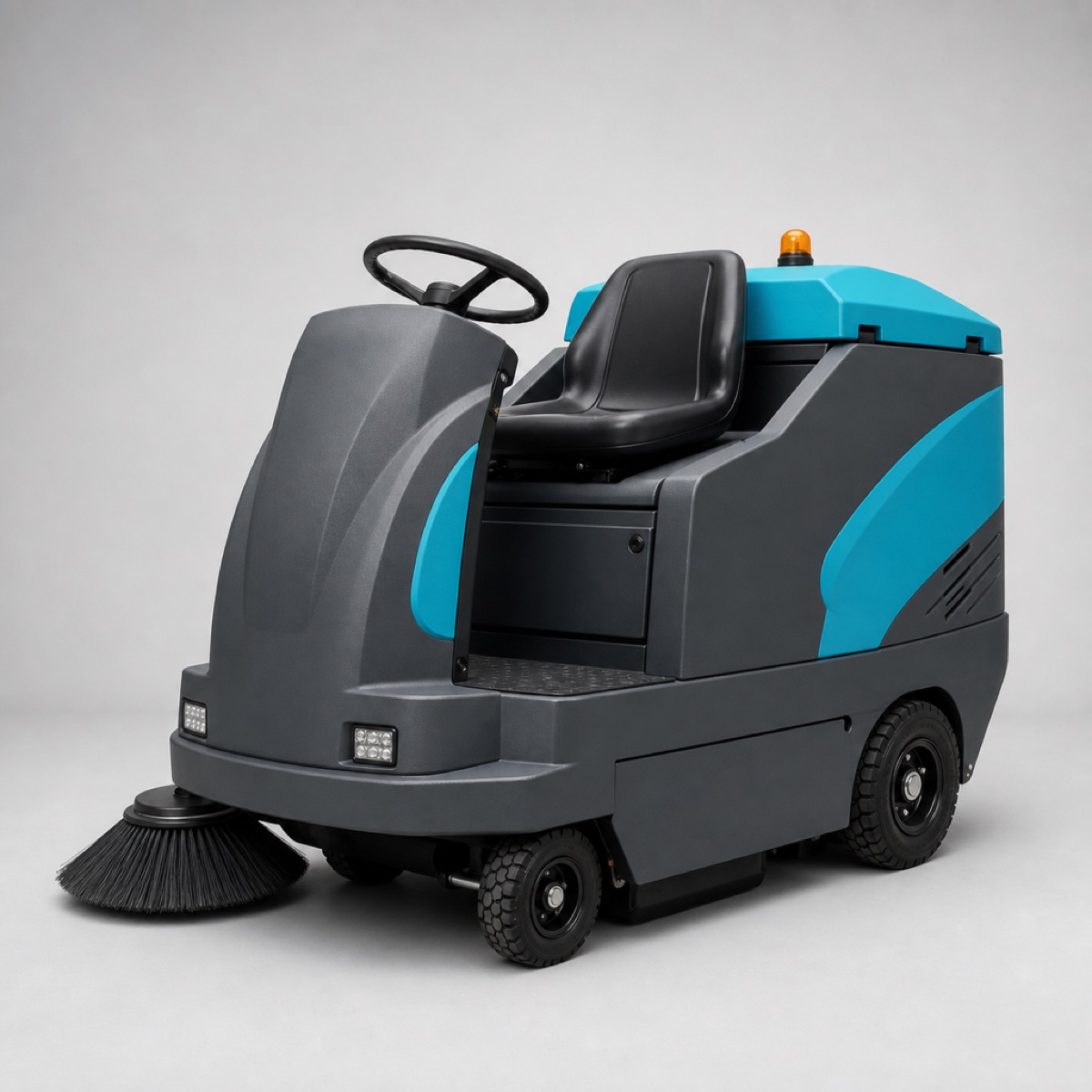

SW-800 Ride-on Sweeper

An 800 mm ride-on sweeper with a 1,150 mm path using both side brooms, for dry debris ahead of a scrubber or on its own.

1,150 mm swept path with both side brooms down

Side brooms lift independently for wall lines and racking legs

Manual filter shaker used at every hopper tip, not once a shift

High tip empties into a standard 1,100 L wheeled bin at 1,450 mm

Specifications

Sweeping width, main broom: 800 mm
Sweeping width, with both side brooms: 1,150 mm
Hopper capacity: 70 L, hydraulic high tip
Productivity, theoretical: 6,900 m²/h
Productivity, practical: 4,000 – 4,800 m²/h
Power source and run time: 24 V, 180 Ah lithium, up to 3.5 h sweeping with the fan running
Sound pressure: 69 dB(A) at the operator position
Weight, ready to work: 340 kg
Turning radius: 1,600 mm

Product detail

Scrubbing a floor that has not been swept wastes water and shortens brush life. The SW-800 takes the dry debris off first: pallet splinters, shrink wrap, grit tracked in from a yard, and the fine dust that a scrubber turns into slurry.

Sweeping path

The main broom is 800 mm. With both side brooms down the swept path is 1,150 mm, which is the figure to plan a route against. The side brooms lift independently so the operator can drop one to run a wall line and keep the other clear of racking legs.

Dust control

A panel filter with a manual shaker sits between the hopper and the vacuum fan. On dusty floors the shaker is used at each hopper tip rather than at the end of a shift, which keeps the airflow up and stops the filter blinding. Filter class should be matched to the dust on your site.

Hopper

The 70 litre hopper is on a hydraulic lift and empties into a standard 1,100 litre wheeled bin without the operator handling debris. Empty height is 1,450 mm. Check that against the bins you actually have before you order, because a machine that cannot reach the bin becomes a machine that is emptied by hand.
