Straight-line piston filling with a single-head capper at discharge.
Response within one business day. Include duty point or application details for a faster match.
| Dimensions | 2,600 × 1,100 × 1,900 mm |
|---|---|
| Throughput | Up to around 40 containers/min, product dependent |
| Power | 220–240 V, 1-phase, 3 kW |
| Air Supply | 6 bar, 200 NL/min |
| Material | 316L stainless product path |
| Certification | CE machinery directive design basis |
| Warranty | 24 months |

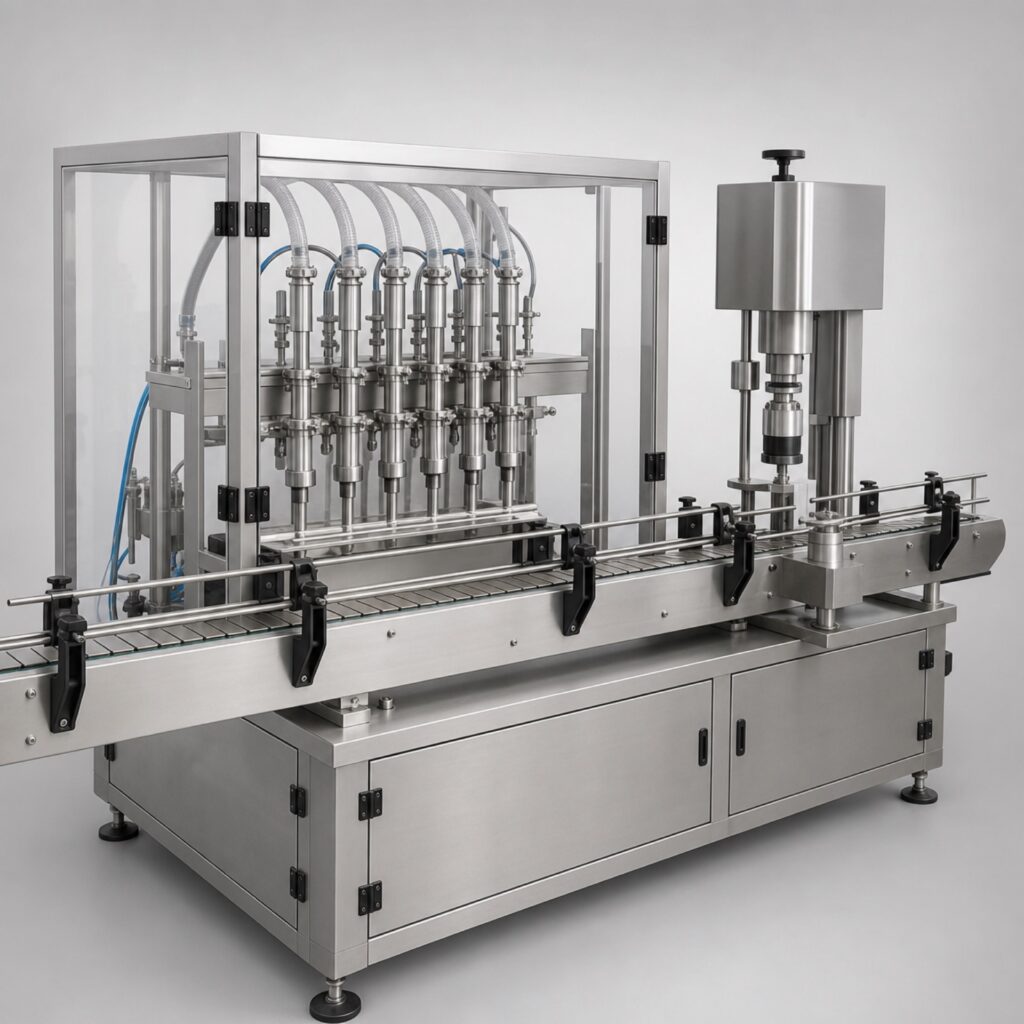

The PF-FC120 doses by servo piston across a row of stainless nozzles above a slat conveyor, then torques closures at a single capping head before discharge. The straight-line layout is simple to walk, simple to clean and simple to extend when the line grows.
Pistons and nozzles size to the product — thin liquids, emulsions or particulate sauces — and volume changes are numeric entries, not mechanical swaps. The frame is open underneath for washdown and drainage.
Fill, cap and discharge in one rotary frame — compact and consistent.
