Filling & Capping

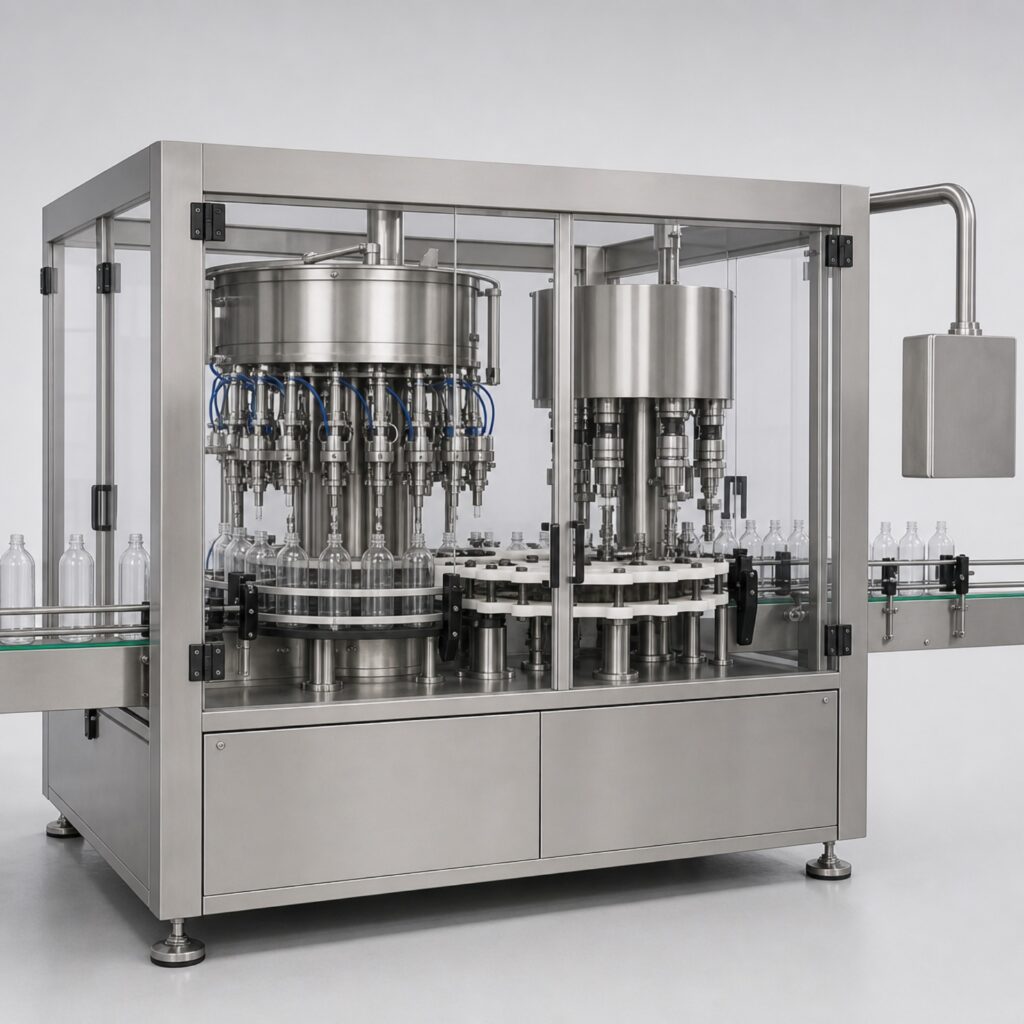

PF-FC400 Rotary Filling & Capping Monoblock

Fill, cap and discharge in one rotary frame — compact and consistent.

  • Dimensions3,200 × 2,100 × 2,200 mm
  • ThroughputUp to around 100 containers/min, product dependent
  • Power380–480 V, 3-phase, 11 kW
  • Air Supply6 bar, 400 NL/min

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions 3,200 × 2,100 × 2,200 mm
Throughput Up to around 100 containers/min, product dependent
Power 380–480 V, 3-phase, 11 kW
Air Supply 6 bar, 400 NL/min
Material 316L stainless product path
Certification CE machinery directive design basis
Warranty 24 months

Overview

The PF-FC400 combines a rotary filler and a capping turret in one stainless monoblock: containers enter on a feed screw, fill under servo-driven volumetric valves, transfer directly to the capper, and leave sealed. Direct transfer removes the open-container conveyor where spills and contamination usually start.

Fill volume, dive profile and capping torque store per recipe. Contact parts strip without tools for cleaning, and the guard doors are full-height glass — the whole process stays visible and fully interlocked.

It suits liquids from thin sauces to viscous personal-care products, with valve options chosen to the application.
