Two applicator heads and a stabilising top belt for flat and oval containers.
Response within one business day. Include duty point or application details for a faster match.
| Dimensions | 3,000 × 1,500 × 1,700 mm |
|---|---|
| Throughput | Up to around 120 containers/min, size dependent |
| Power | 220–240 V, 1-phase, 3 kW |
| Air Supply | 6 bar, 80 NL/min |
| Material | Stainless steel frame, anodised heads |
| Certification | CE machinery directive design basis |
| Warranty | 24 months |

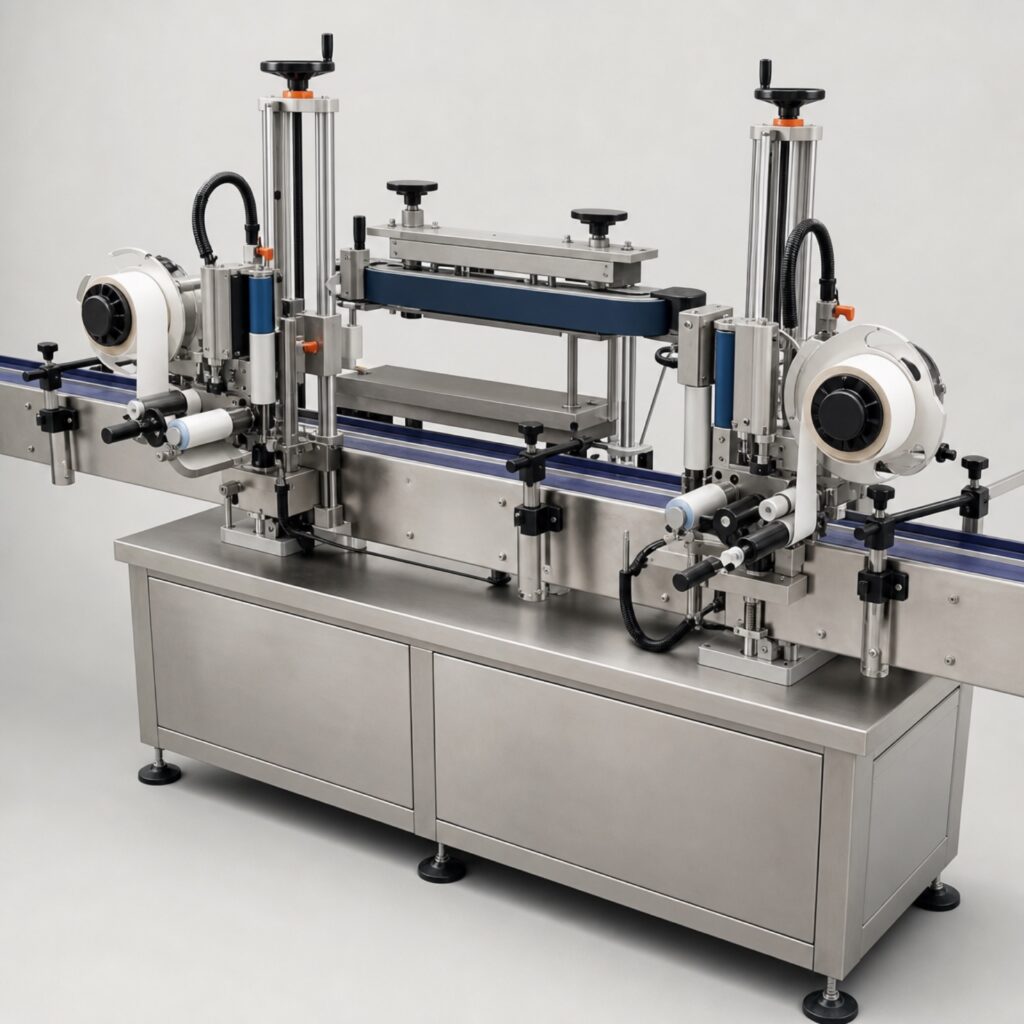

The PF-LB150 carries two applicator heads on adjustable columns, placing front and back labels in one pass while a top hold-down belt keeps flat and oval containers tracking straight. Head positions read off scales, so a recorded setup restores in minutes.
Both heads run independent servo drives with their own product sensors — labels of different lengths stay in register at any line speed within range. The conveyor integrates into existing lines with matching transfer heights at both ends.
Servo label application for round containers at production speed.
