Shrink Wrapping

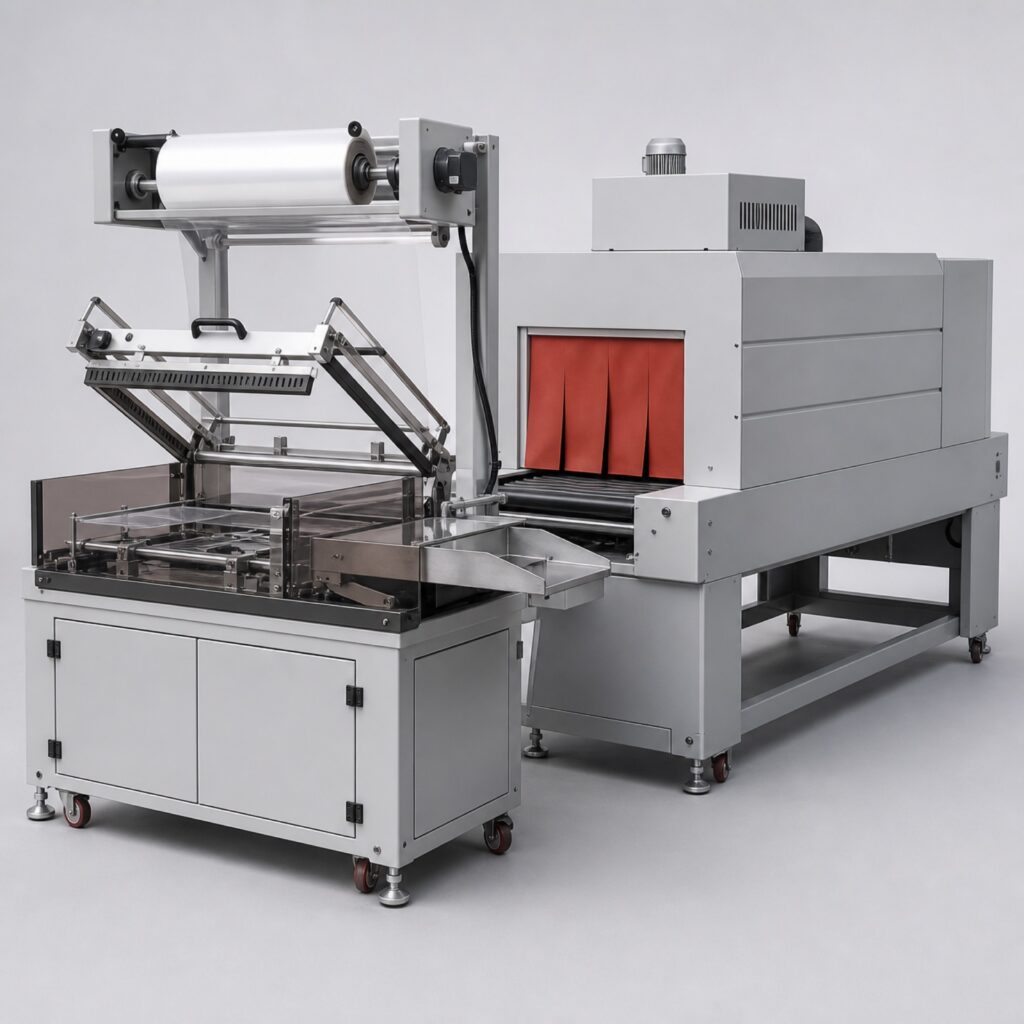

PF-SW220 Shrink Wrapper with Tunnel

Sealing bar and heated tunnel in one frame for bundles and trays.

  • Dimensions4,600 × 1,100 × 1,800 mm
  • ThroughputUp to around 25 bundles/min, format dependent
  • Power380–480 V, 3-phase, 18 kW
  • Air Supply6 bar, 120 NL/min

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions 4,600 × 1,100 × 1,800 mm
Throughput Up to around 25 bundles/min, format dependent
Power 380–480 V, 3-phase, 18 kW
Air Supply 6 bar, 120 NL/min
Material Powder-coated steel, stainless tunnel chamber
Certification CE machinery directive design basis
Warranty 24 months

Overview

The PF-SW220 collates products, wraps them in film from a top-and-bottom reel pair, seals with a bar sealer and shrinks in an insulated hot-air tunnel — one machine from loose products to tight bundles. Film overlap and tunnel profile store per recipe.

The tunnel chamber circulates air through adjustable nozzles for an even shrink without cold corners, and the insulated hood keeps the outside surface at touchable temperature. Print-registered film is supported with an eye-mark sensor at the unwind.

Request a Quote

Tell us about your application and required quantity. Our engineers reply within one business day.
