Shoots and shrinks full-body sleeves onto bottles and jars.
Response within one business day. Include duty point or application details for a faster match.
| Dimensions | 2,800 × 900 × 2,100 mm |
|---|---|
| Throughput | Up to around 90 containers/min, size dependent |
| Power | 380–480 V, 3-phase, 14 kW |
| Air Supply | 6 bar, 150 NL/min |
| Material | Stainless steel frame and tunnel |
| Certification | CE machinery directive design basis |
| Warranty | 24 months |

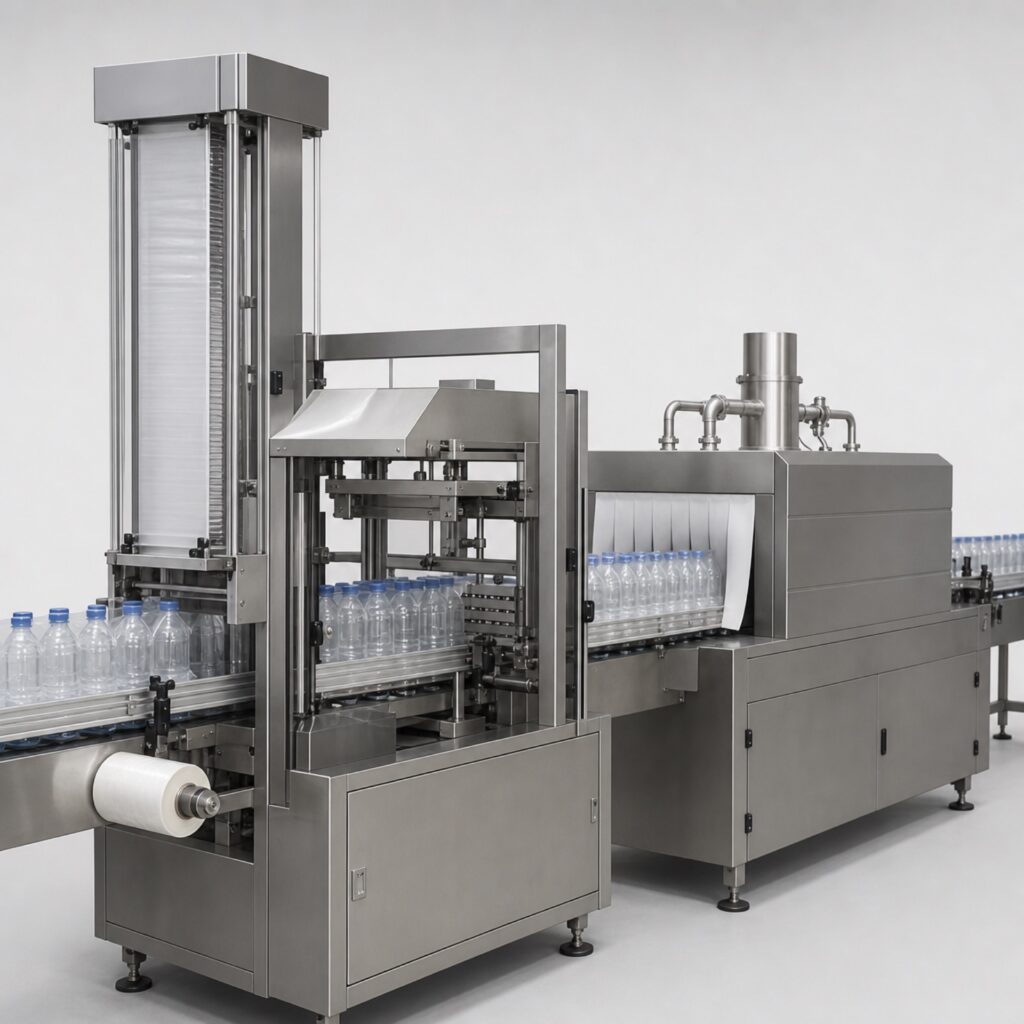

The PF-SW90 opens flattened sleeve material over a mandrel, cuts to length and shoots each sleeve onto the passing container, then finishes it in a compact steam tunnel for a wrinkle-free, full-body fit. Sleeve length and shoot position are servo-set from the panel.
The steam section runs on a small integrated generator with condensate return, keeping installation to power, water and a drain. Tooling swaps between container diameters on quick-release mandrel segments.
