Checkweighers

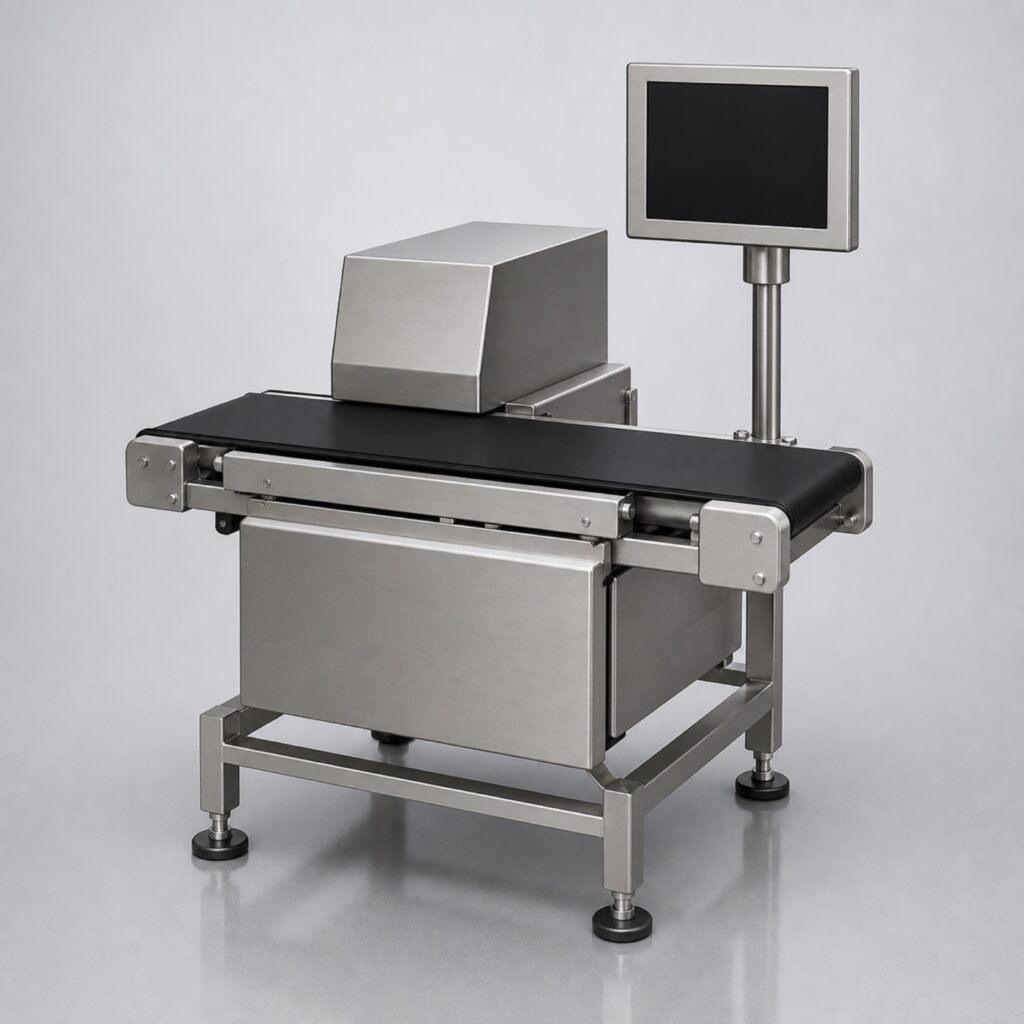

VK-300 Inline Checkweigher

Every pack weighed, every reject caught — at up to 150 packs per minute.

  • Capacity30 g to 3 kg packs
  • Readability0.1 / 0.5 g by range
  • Throughputup to 150 packs/min
  • Accuracy classDynamic verification-ready

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Capacity 30 g to 3 kg packs
Readability 0.1 / 0.5 g by range
Throughput up to 150 packs/min
Accuracy class Dynamic verification-ready
Protection IP65 stainless frame
Interface Ethernet + digital I/O
Warranty 2 years

Overview

The VK-300 drops into packaging lines and weighs every single pack in motion, flagging under- and over-weight product before it reaches a customer. The stainless frame and open belt design rinse down quickly at changeover.

Recipes store per product, so changeovers are a two-touch job on the terminal. Reject options include air blast and pusher, and the I/O is ready for stack lights and line-stop interlocks.

Weight data streams over Ethernet for batch records and statistical fill control — most customers pay for the machine in give-away savings alone.
