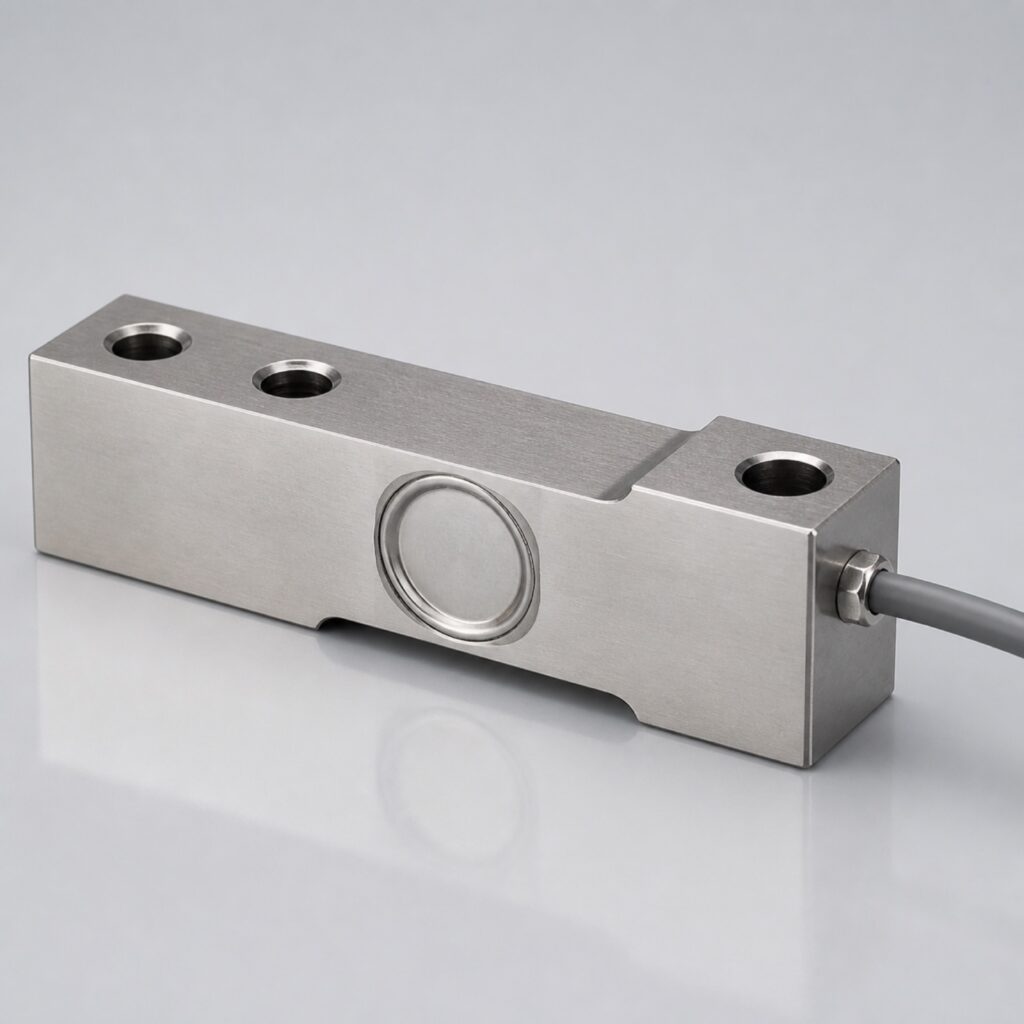

The scale-builder's staple: stainless shear beam with sealed gauge cavity.
Response within one business day. Include duty point or application details for a faster match.
| Capacity | 250 kg to 5 t versions |
|---|---|
| Rated output | 2.0 mV/V ±0.02% |
| Accuracy class | C3 equivalent (3000 divisions) |
| Material | 17-4 PH stainless |
| Protection | IP68 welded seal |
| Cable | 6 m shielded, 4-wire |
| Warranty | 3 years |
The VL-S carries floor scales, tank legs and conveyor weighers around the world. The machined stainless body takes load through a single shear web, giving clean linearity and strong resistance to side forces.
The gauge cavity is welded and helium-checked, not potted — humidity and washdown stay outside for the sensor’s whole life. Each cell ships with its test certificate and corner-trim data sheet.
Tension and compression sensing for hoppers, test rigs and force checks.
