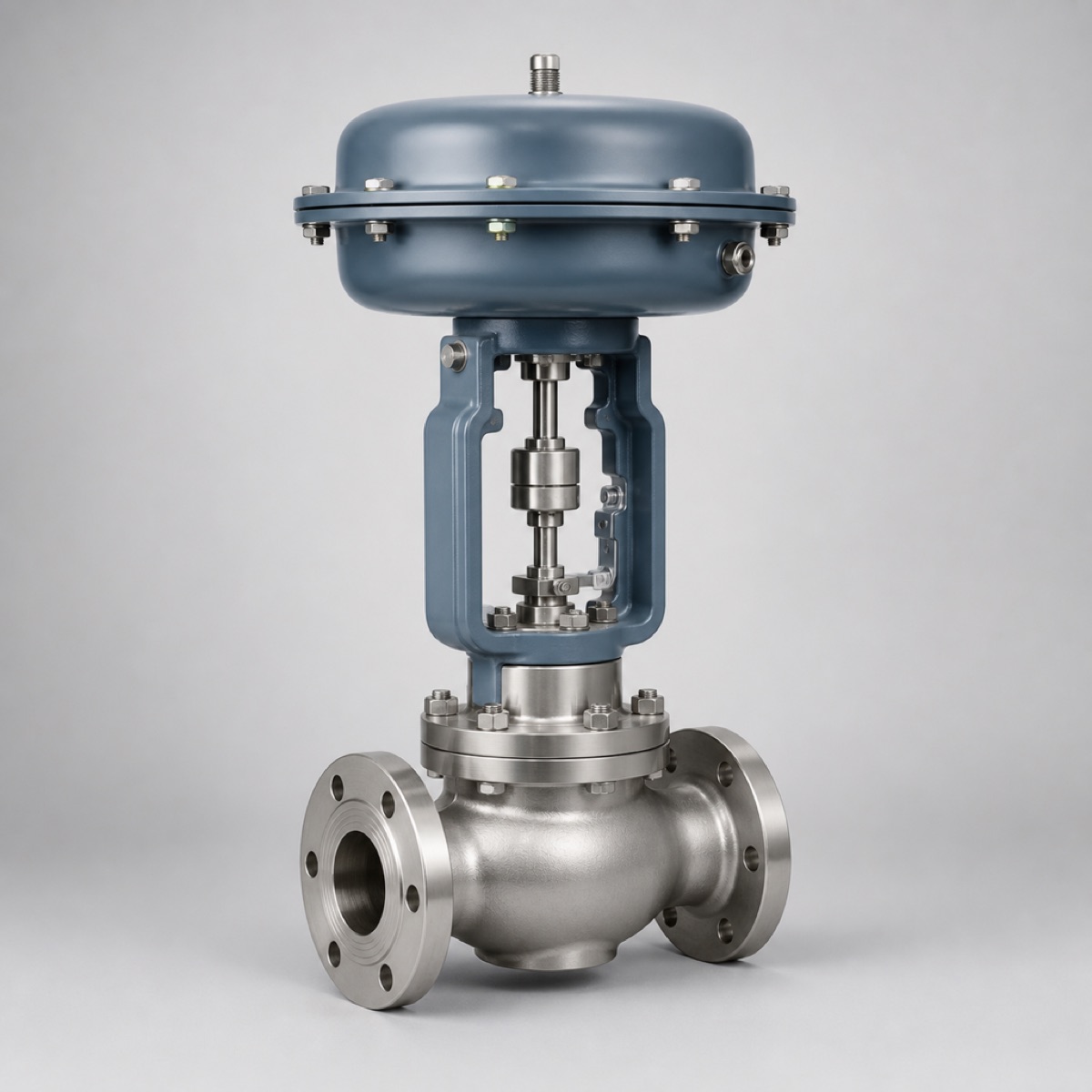

VK-300 Cage-Guided Globe Control Valve

A cage-guided globe control valve supplied as a sized assembly, with the calculated Cv, travel and noise check recorded on the datasheet.

Sizing sheet with calculated Cv, travel and noise check issued with the quotation

Cage guiding keeps the plug stable at low openings

Multi-stage anti-cavitation trim where the pressure drop demands it

Bench stroked with its own positioner, with stroke time recorded

Specifications

Design standard: ASME B16.34, sizing to IEC 60534
Nominal size: DN25 – DN300 (NPS 1 – 12)
Pressure class: Class 150 / 300 / 600
Body material: ASTM A216 WCB, A351 CF8M
Trim material: 316 stainless, hardfaced or multi-stage anti-cavitation cage
Characteristic: Equal percentage, linear or quick opening cage
End connection: Raised face flange to ASME B16.5, butt weld to B16.25
Operating temperature: -29 °C to +425 °C, trim and packing dependent
Face-to-face: ASME B16.10
Actuation: Spring and diaphragm with digital positioner, fail open or fail closed

Product detail

A control valve is not a catalogue item with a size on it. It is a calculation: the flow you need at minimum, normal and maximum conditions, the pressure drop available at each, and the trim that will deliver that range without cavitating or choking. The VK-300 is quoted against those numbers, and the sizing sheet is issued with the quotation so it can be checked before anything is machined.

Trim

A guided cage carries the plug over its whole travel, which keeps the plug stable at low openings where an unguided plug would chatter. Equal percentage, linear and quick opening characteristics are cut into the cage. Where the pressure drop is high enough to flash or cavitate, a multi-stage cage takes the drop in steps rather than all at one seat.

Actuator and positioner

Spring and diaphragm actuator sized on the shut-off differential, not the operating one, with the fail position set from the process requirement. The valve is bench stroked with its positioner fitted, and the stroke time and bench set are recorded.

What to send us

Flow at minimum, normal and maximum, inlet pressure and pressure drop at each, medium and its state, inlet temperature, and the fail action. Line size alone is not enough to size a control valve and any supplier who quotes from it is guessing.
