A 3.2 m sliding carriage that squares full sheets with one operator and no second pass.
Response within one business day. Include stock sizes or application details for a faster match.
| Sliding stroke | 3,200 mm |
|---|---|
| Motor power | 5.5 kW main + 0.75 kW scoring |
| Spindle speed | 4,000 / 8,000 rpm |
| Table size | Cast iron + alloy slider |
| Dust port | 120 mm + 80 mm overhead |
| Weight | 780 kg |
| Warranty | 3 years |

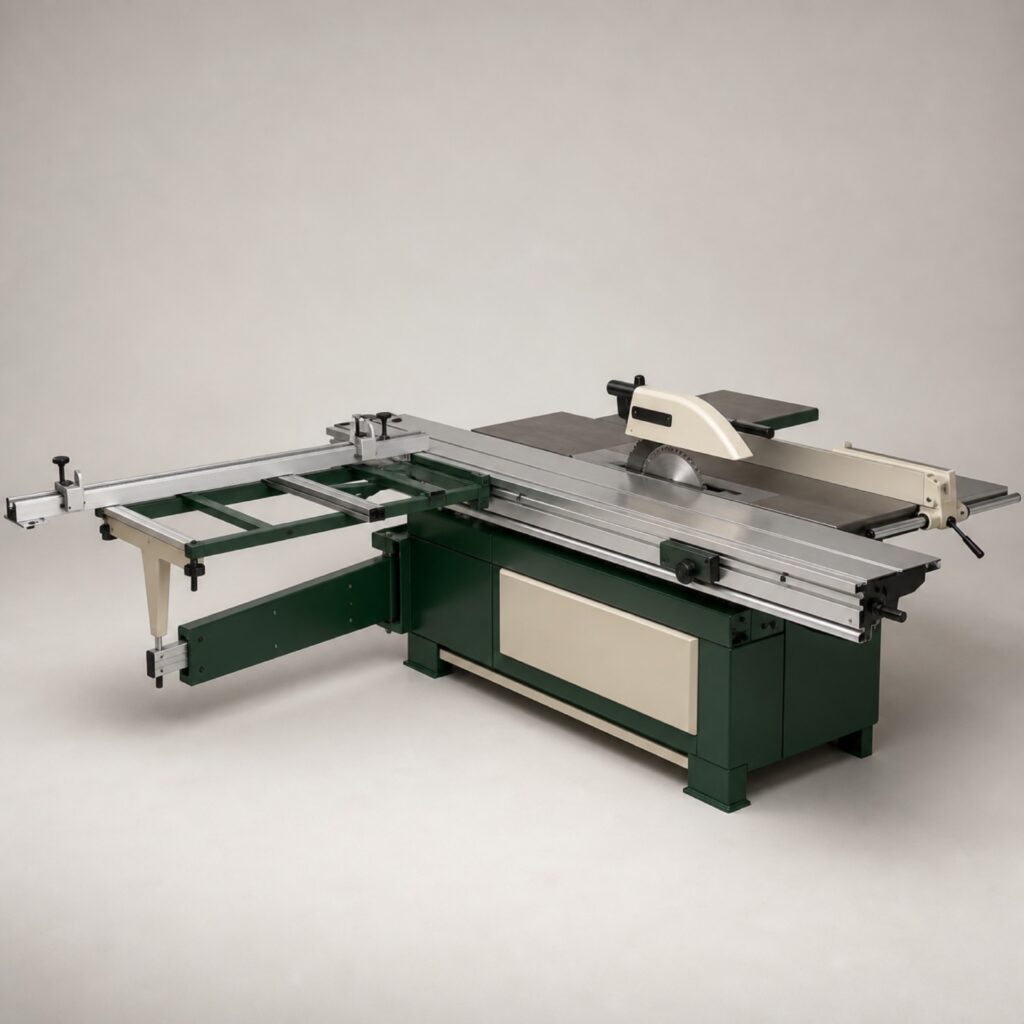

The PS-32 carries a full sheet on a precision-ground aluminium sliding table riding sealed steel bearings. The crosscut fence indexes on hardened stops, and the scoring unit keeps melamine edges chip-free on both faces.
Blade tilt and rise run on ground trapezoidal screws with digital-free mechanical dials — nothing to drift, nothing to reboot.
The shop anchor: a cast iron cabinet saw that cuts square on year one…
