Interchangeable-spindle shaper with a micro-adjust fence for profile work that repeats.
Response within one business day. Include stock sizes or application details for a faster match.
| Max tool diameter | 250 mm |
|---|---|
| Motor power | 5.5 kW / 7.5 hp |
| Spindle speed | 3,000–10,000 rpm, 4 steps |
| Table size | 1,000 x 800 mm cast iron |
| Dust port | 120 mm fence + 100 mm table |
| Weight | 480 kg |
| Warranty | 3 years |

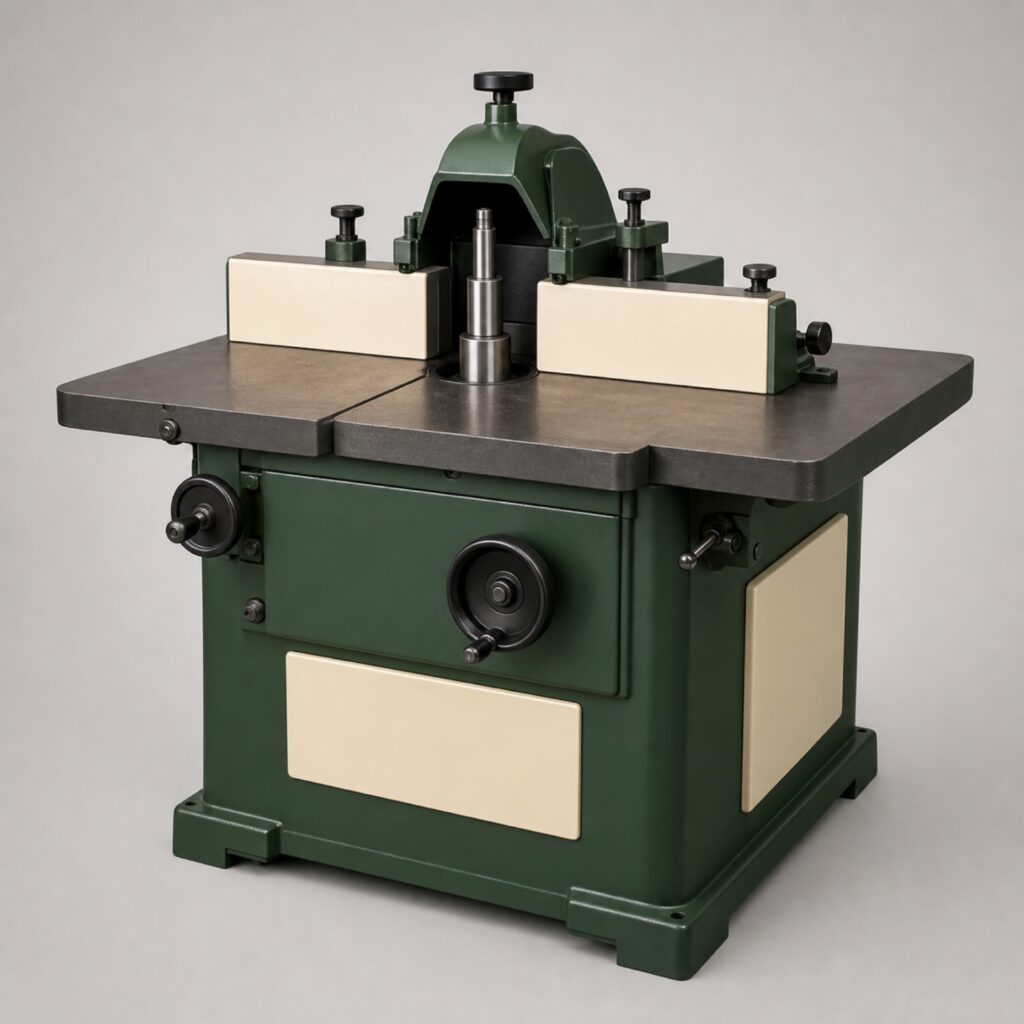

The SM-71 spindle swaps between 30 mm and 50 mm arbors without pulling the cartridge, and tilts to 45 degrees for undercut profiles. The fence hood adjusts on twin micrometer dials reading to a tenth of a millimetre.
Four speeds cover everything from large panel-raising heads to small grooving cutters, with electronic braking standard.
