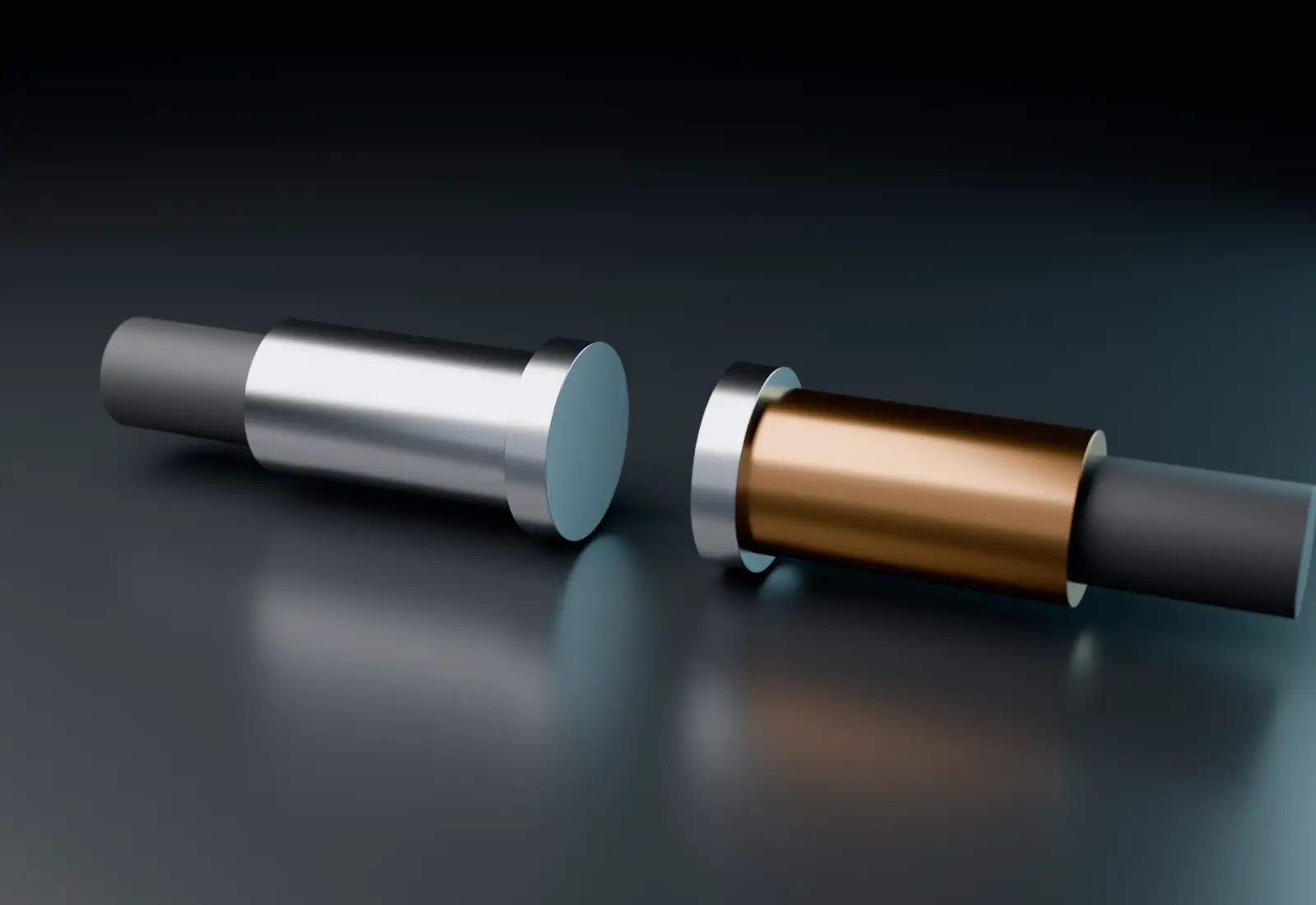

QD-16 Quick Disconnect

Dry-break coupling that lets a sled be pulled under load with under 0.1 mL of spill.

ModelQD-16

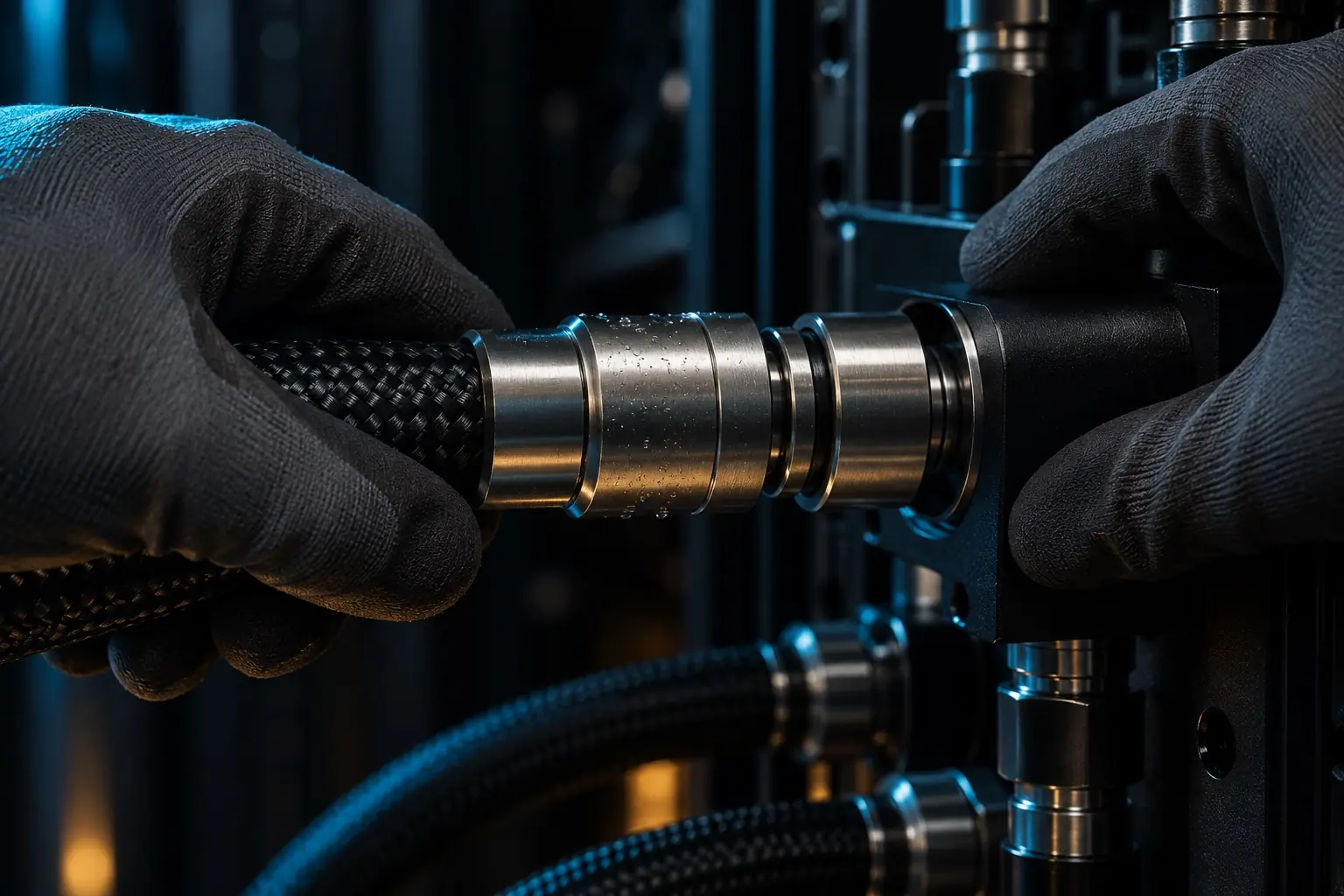

Both halves close as they separate, so a node can be removed while the rest of the row stays at pressure. Spill on disconnect is below 0.1 mL — small enough that it evaporates before it can run anywhere, which is the point.

Rated for repeated service cycles with the seal kit replaced on the schedule in the maintenance package, and keyed so that supply and return cannot be crossed by a tired hand at three in the morning.

Spill on disconnect

< 0.1 mL

Flow capacity

8 L/min

Pressure drop

11 kPa at 2 L/min

Working pressure

10 bar

Keying

Supply and return keyed separately

Materials

316L stainless, EPDM
