A copper microchannel cold plate lands on a glowing accelerator die

Direct-to-chip liquid cooling

We take the heatoff the die.

Copper microchannel cold plates, rack manifolds and CDUs for 1.6 kW-class accelerators. Engineered, qualified and supported as one loop.

Start an RFQ See the hardware
Die junction 91 °C — heat still on the silicon Die junction 58 °C — heat handed to the loop

Scroll to run the loop

Reference point: one CP-4000 on an OAM-class package, 25 °C facility water.

  • 1600W Heat removed per cold plate
  • 0.021°C/W Thermal resistance, die to fluid
  • 33kPa Pressure drop at 1.5 L/min
  • 132kW Per-rack capacity, sidecar CDU

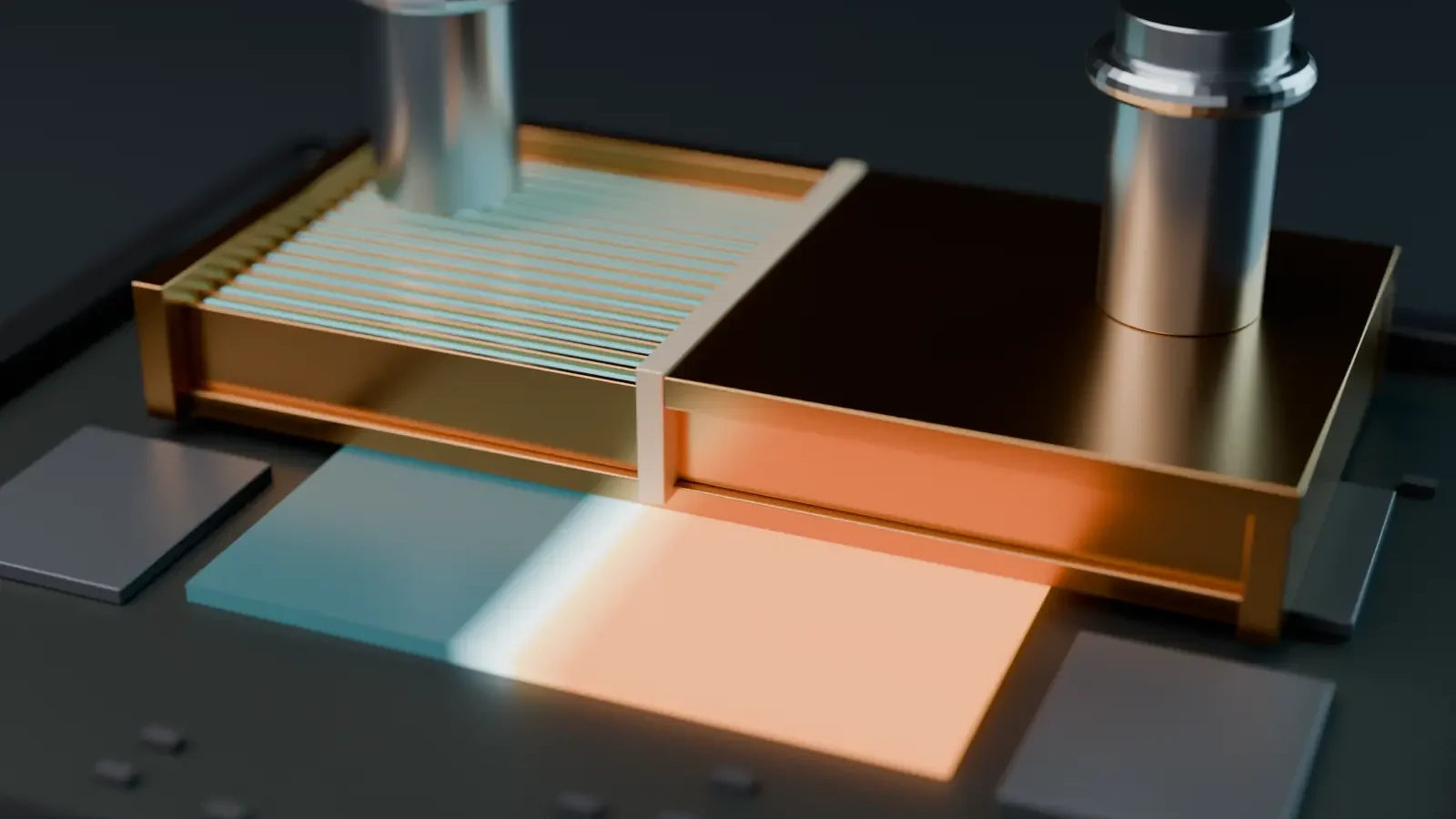

Half section of a CP-4000 cold plate over an accelerator package
CP-4000 half section: 17 copper fins, 0.5 mm wall, 1.5 mm pitch.

01The handoff

Air stops workingat 700 watts.

A 1.6 kW accelerator cannot reject its heat into moving air; the film of air against the lid becomes the whole thermal budget. A cold plate replaces that film with a copper wall 0.4 mm from the die and a fluid that carries 3,500 times more heat per unit volume.

Everything downstream — manifold, quick disconnect, CDU, facility water — exists to keep that wall cold and the pressure honest.

02One loop, five handovers

Follow the coolant

  1. 01

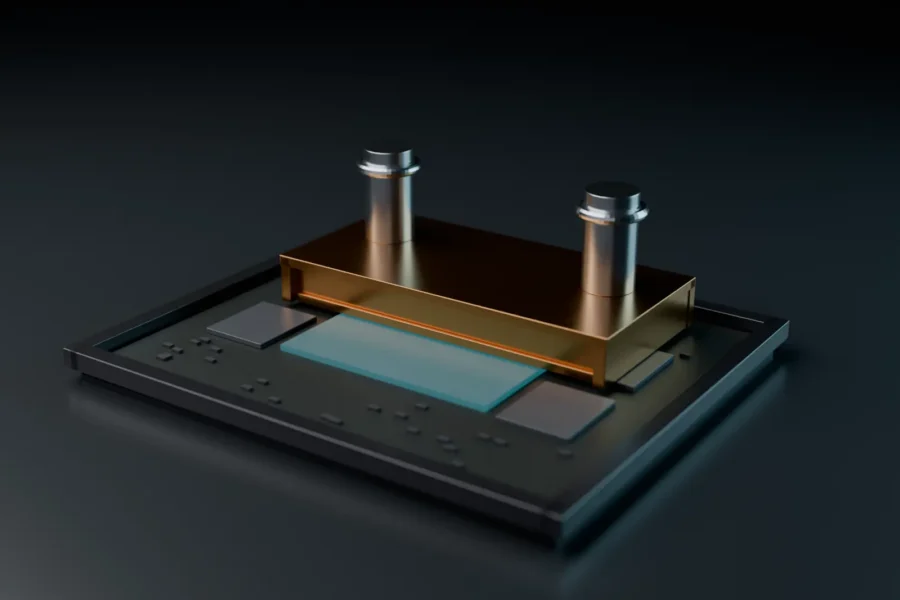

    Cold plate

    Cold plate

    0.021 °C/W

    Copper microchannels sit 0.4 mm from the die. Flow enters at 25 °C and leaves at 33 °C.

  2. 02

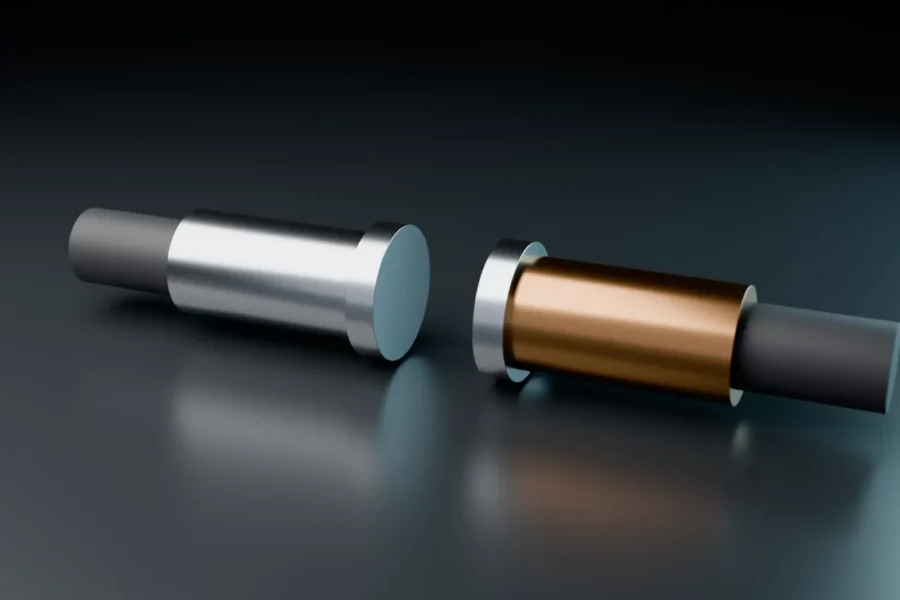

    Quick disconnect

    Quick disconnect

    < 0.1 mL spill

    Dry-break couplings let a sled be pulled under load without draining the rack.

  3. 03
    Rack manifold

    Rack manifold

    8–48 ports

    Vertical bar balances flow across sleds so the last node is not the hot one.

  4. 04

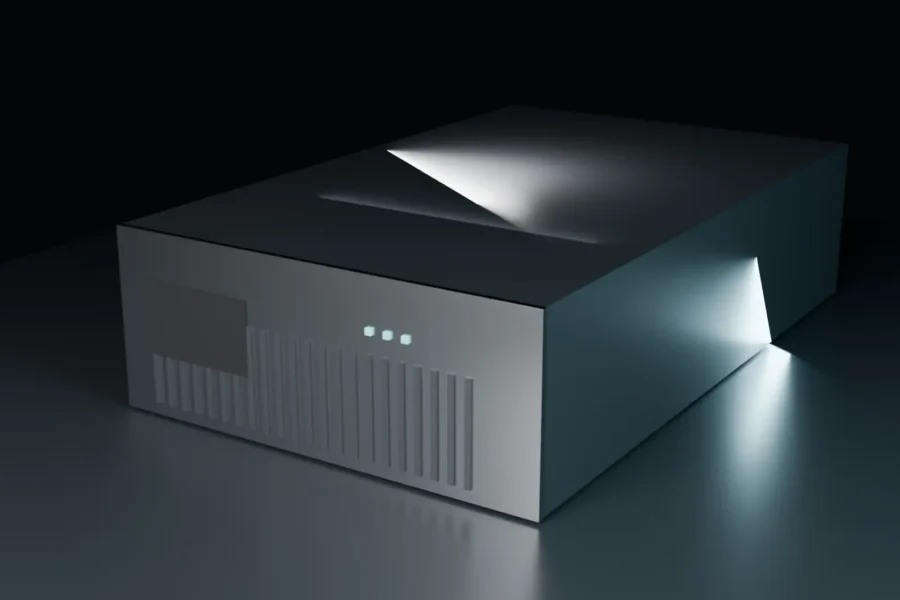

    CDU

    CDU

    132 kW

    Liquid-to-liquid heat exchange, redundant pumps, and the control loop that holds supply temperature.

  5. 05

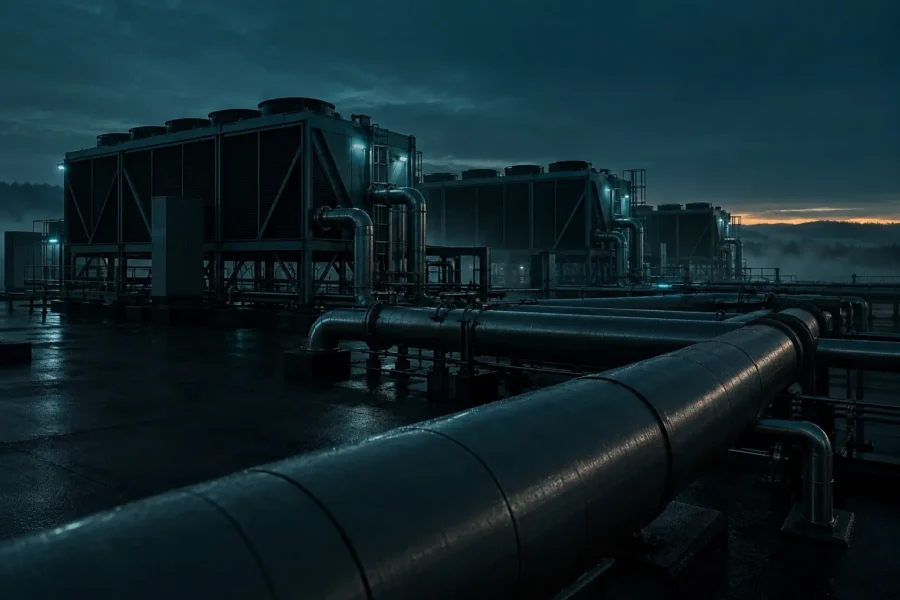

    Facility water

    Facility water

    W3 / W4

    Warm-water operation lets dry coolers do the work for most of the year.

03Hardware

Built to bespecified, not browsed.

Every line ships with a thermal datasheet, a pressure-drop curve and a CAD model. Pricing is quoted per deployment.

04Selection table

Pick by package, not by brochure

ModelPackageHeatR thFlowΔP

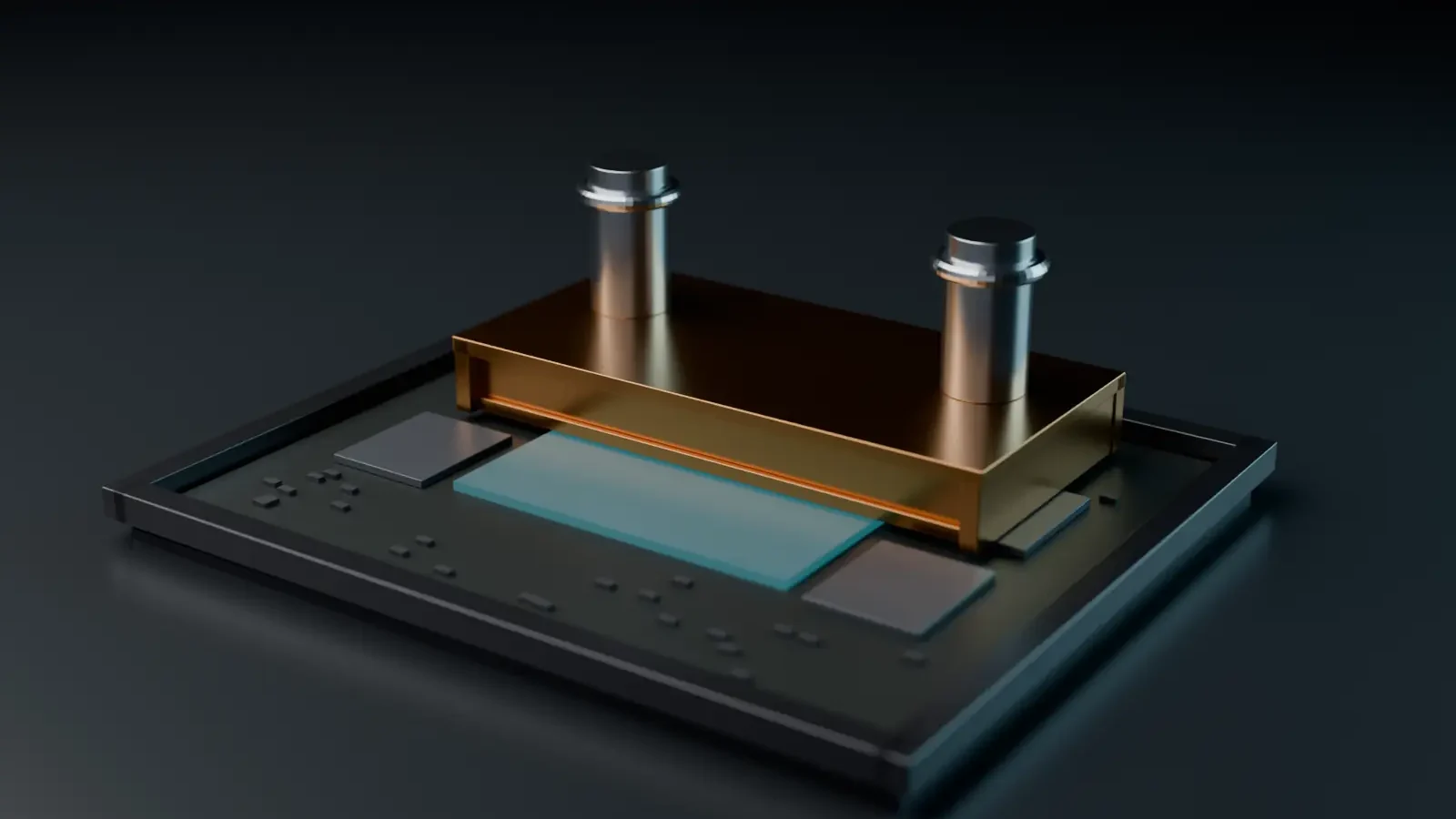

CP-4000 OAM / SXM-class 1600 W 0.021 °C/W 1.5 L/min 33 kPa

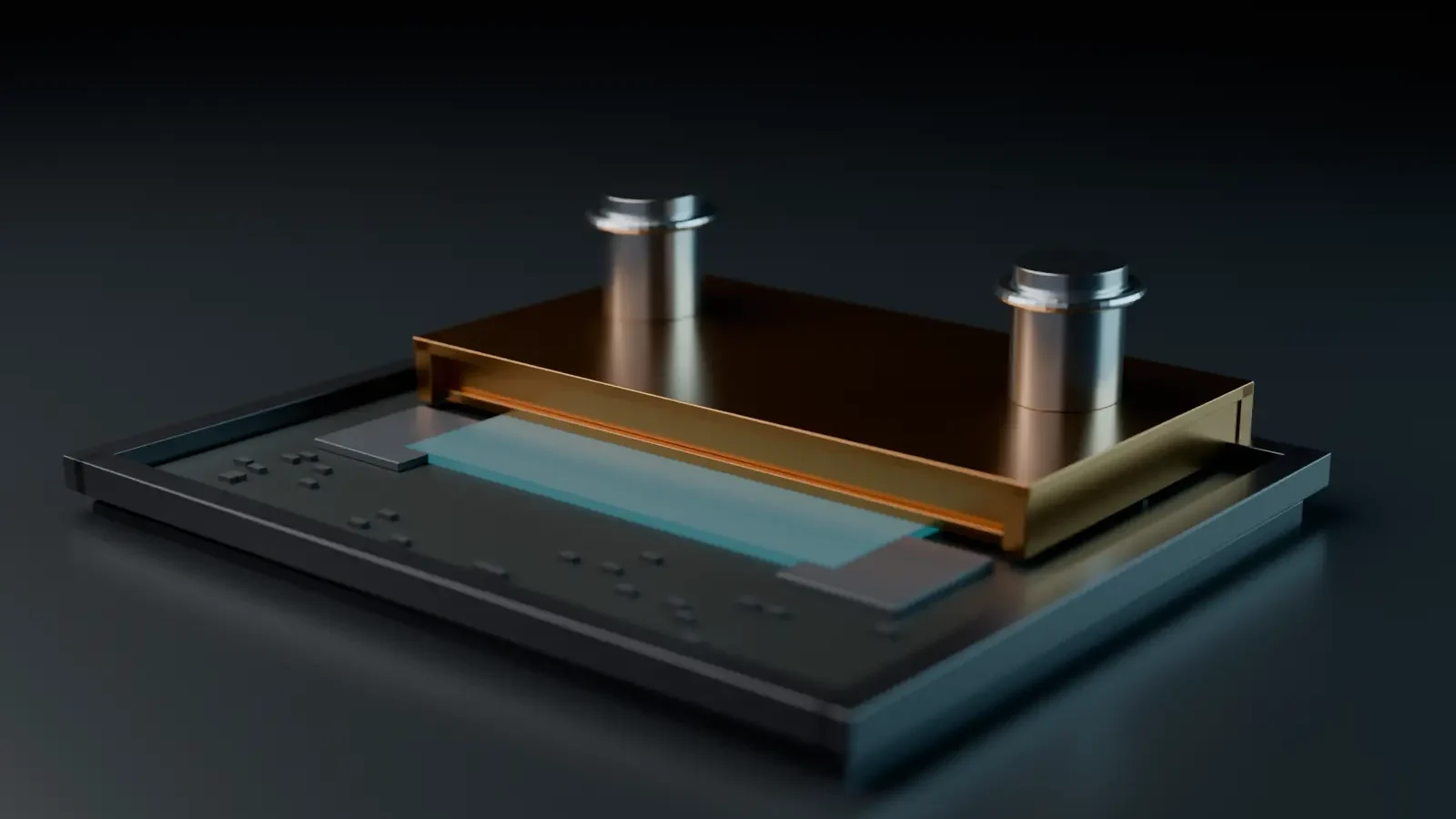

CP-2600 LGA 7529 CPU 900 W 0.028 °C/W 1.2 L/min 24 kPa

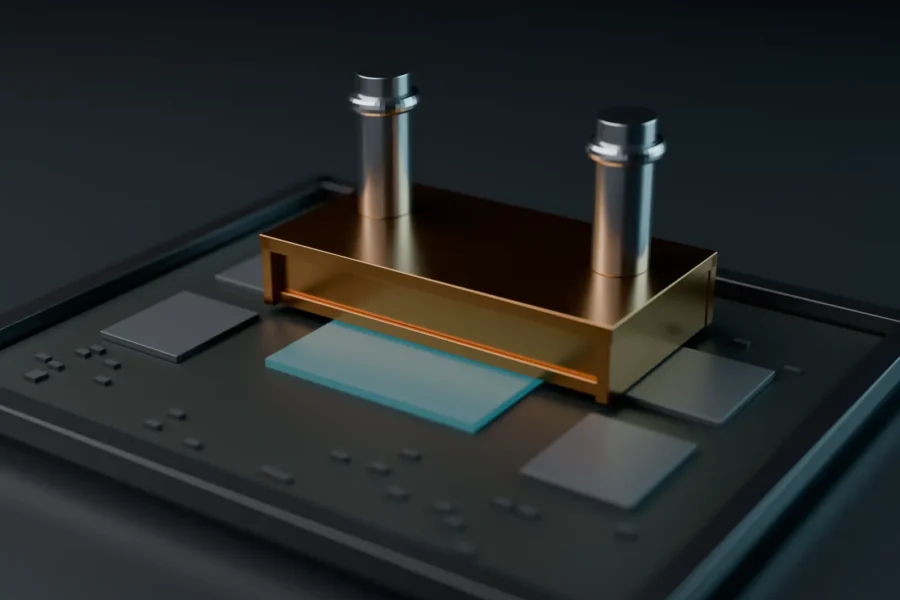

CP-1200 PCIe accelerator 600 W 0.035 °C/W 0.9 L/min 19 kPa
RM-800 8–48 port manifold 240 kW — 60 L/min 41 kPa
CDU-132 In-row / sidecar 132 kW — 320 L/min 180 kPa

Measured at 25 °C inlet, 50/50 PG25, single plate on a calibrated thermal test vehicle. Demonstration data for this template.

A megawatt of compute is a megawatt of heat looking for somewhere to go.

Aquilo field engineering

05How a deployment runs

From thermal model to signed-off rack

  1. 01

    Thermal review

    We model your package, flow budget and facility water before quoting anything.

  2. 02

    Qualification

    Cold plates run on a thermal test vehicle; you get the curve, not a claim.

  3. 03

    Integration

    Manifolds, hoses and CDU sized to the rack, with leak-path review and commissioning plan.

  4. 04

    Operation

    Fluid chemistry programme, spares, and a service window that matches your maintenance policy.

06Where it runs

Density isa thermal decision.

  • 120 kW/rack

    AI training halls

    Eight-way accelerator sleds at full utilisation, twenty-four hours a day.

  • 40 °C water

    HPC and research

    Warm-water loops that reject heat without mechanical cooling most of the year.

  • 0 raised floor

    Colocation retrofit

    Sidecar CDUs that take a liquid-cooled row into an air-cooled building.

07Resources

Notes from the loop

08Request for quotation

Tell us the packageand the water.

Send the accelerator or CPU package, the per-node power budget and your facility supply temperature. An engineer replies with a thermal assessment, not a brochure.
