Cleanroom Equipment

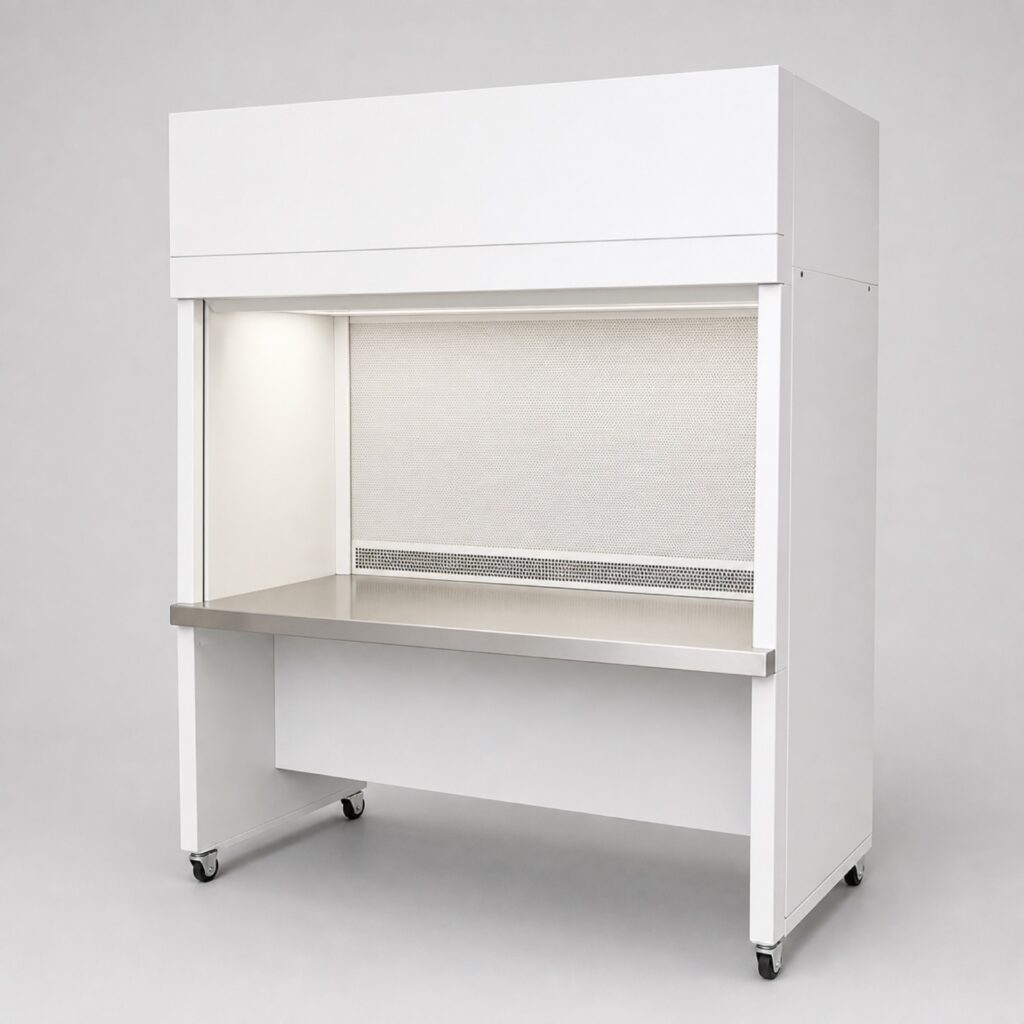

SP-CE110 Laminar Airflow Unit

Filtered air in a vertical column over a 316L top, with face velocity shown and an alarm band before it matters.

  • Dimensions1,250 × 780 × 2,050 mm (typical)
  • Output RangeWork zone 1,100 mm wide; face velocity 0.45 m/s ±20% (typical)
  • Power Supply230 V single-phase, 0.6 kW (typical)
  • Contact MaterialsStainless steel 316L work surface

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions 1,250 × 780 × 2,050 mm (typical)
Output Range Work zone 1,100 mm wide; face velocity 0.45 m/s ±20% (typical)
Power Supply 230 V single-phase, 0.6 kW (typical)
Contact Materials Stainless steel 316L work surface
Control Interface Fan speed control with velocity display and alarm band
Certification Designed to support common GMP practices; CE design basis
Warranty 24 months

Overview

The SP-CE110 delivers HEPA-filtered air in a smooth vertical column over a stainless work surface, protecting open handling steps — sampling, small-scale filling, component staging — from the surrounding room. Filter face velocity displays continuously, and the alarm band flags a loaded filter well before protection is at risk.

The cabinet body is powder-coated steel with a 316L work surface; lighting is even and shadow-free across the full width. Prefilters change from the front in minutes, and the HEPA filter replaces from inside the work zone with a documented procedure.

The unit is designed to support common GMP practices and arrives with its filter certificates and factory airflow test record.
