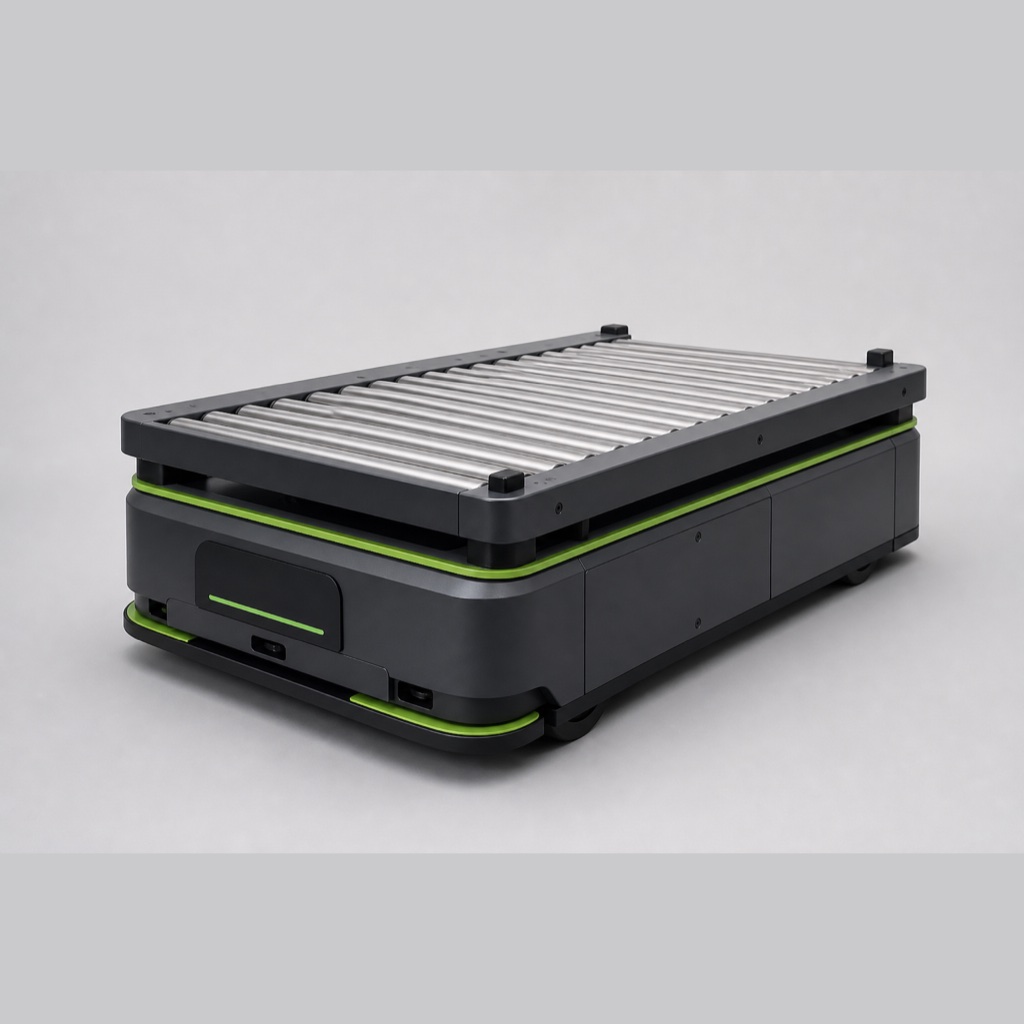

VF-HL700 Module Transport AGV

Laser-guided deck that hands loaded pallets to a station conveyor without a person touching the load.

  • Dimensions1,650 × 950 × 420 mm deck height (typical)
  • Compatible Cell FormatsPallets and carriers to 500 kg typical
  • Throughput RangeTravel speed up to 1.2 m/s typical, route-dependent
  • Power SupplyOn-board battery; opportunity charging at dock points

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions 1,650 × 950 × 420 mm deck height (typical)
Compatible Cell Formats Pallets and carriers to 500 kg typical
Throughput Range Travel speed up to 1.2 m/s typical, route-dependent
Power Supply On-board battery; opportunity charging at dock points
Control Interface Fleet software with station docking signals
Certification Designed with common safety practices in mind; certification scope agreed per project
Warranty 12 months

Overview

The VF-HL700 moves modules and packs between assembly stations on a low, stable chassis with a powered roller deck. It docks at conveyor stations, transfers its load under handshake signals, and navigates shared aisles with people-aware safety scanners.

Routes and station maps configure through the fleet software, and the roller deck height matches standard station conveyors so transfer is a straight pass, not a lift. Charging is opportunity-based at dock points along the route.

The vehicle is designed with common safety practices in mind, with certified-class safety scanners, warning lights and audible signals in the delivered configuration.
