An isolated stainless shaft and line-driver outputs keep the count honest down long cable runs.
Response within one business day. Include duty point or application details for a faster match.
| Resolution | 100 to 5000 ppr |
|---|---|
| Output | Line driver, 5–30 V |
| Speed | up to 6000 rpm |
| Sealing | IP65, sealed bearings |
| Shaft | Isolated stainless |
| Warranty | 2 years |

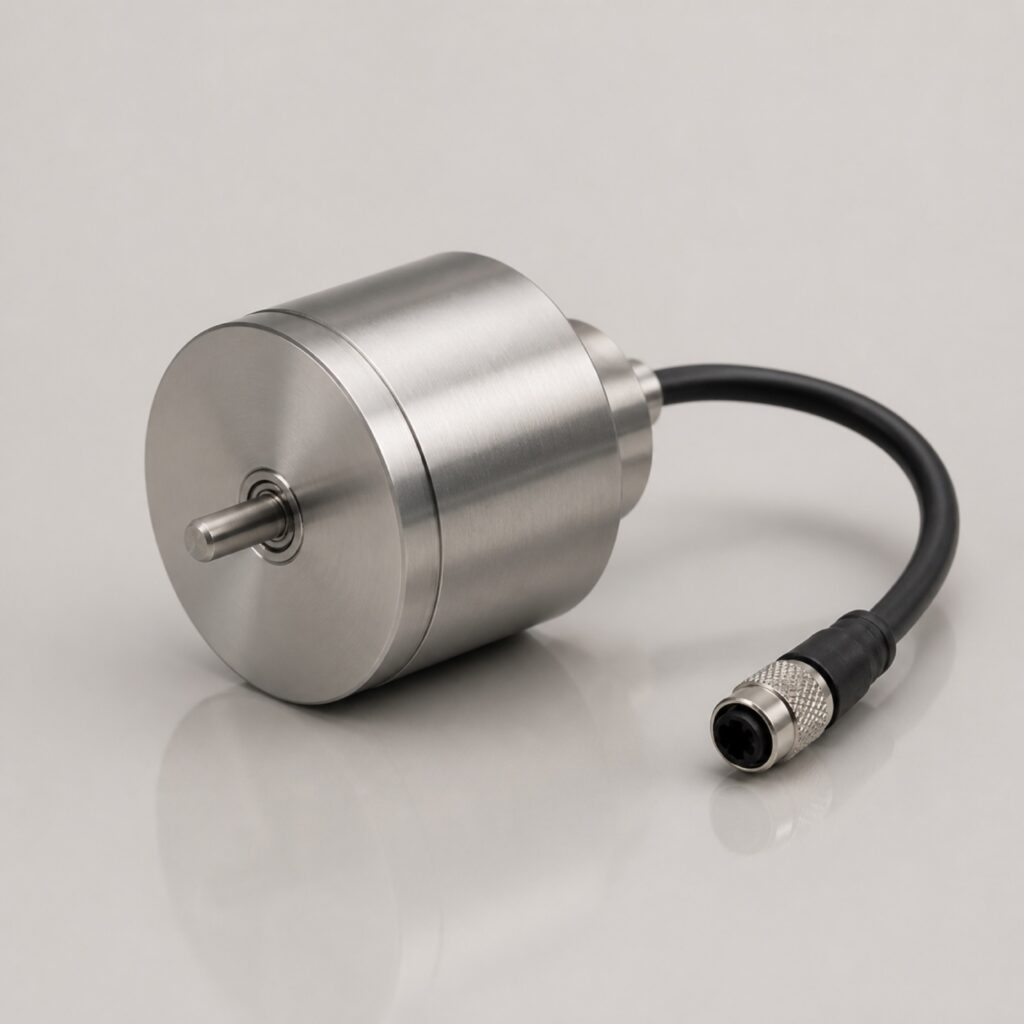

Speed feedback fails at the encoder more often than anywhere else in the loop. The TD-B860 fixes the usual causes with sealed bearings rated for real shaft loads, an electrically isolated stainless shaft and line-driver outputs that hold signal integrity over long cable runs.
Resolutions cover common drive and PLC requirements, and mounting kits adapt to most motor fan covers.
