Ferrite magnets, sintered bushings and a planetary head pressed into the same can. Two wires and go.
Response within one business day. Include duty point or application details for a faster match.
| Power range | 30 W to 2.2 kW |
|---|---|
| Speed | output 5 to 600 rpm |
| Torque | up to 220 Nm |
| Voltage | 12 / 24 / 48 / 96 V DC |
| Gearhead | Planetary or spur |
| Protection | IP54 |
| Warranty | 1 year |

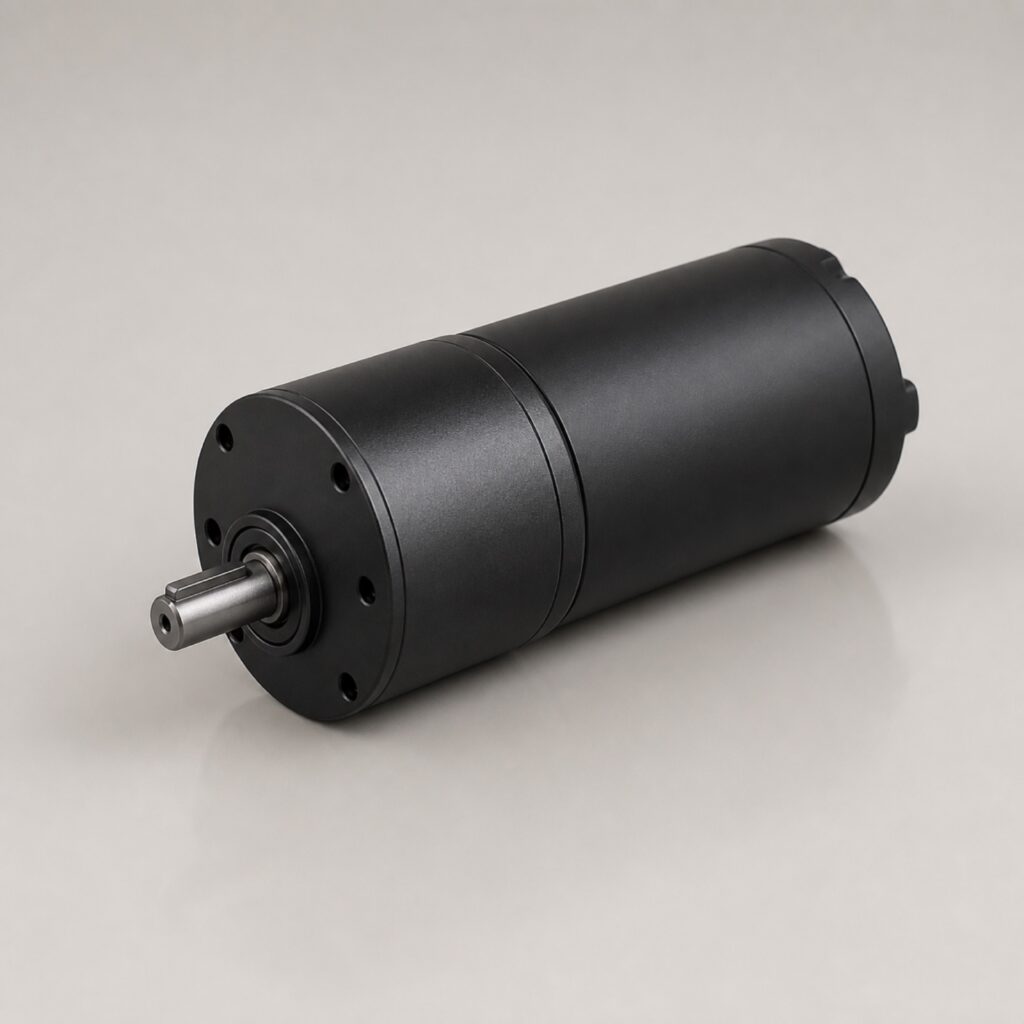

For mobile equipment, gates, small conveyors and battery-powered machines, the TD-D650 pairs a permanent-magnet DC motor with an integrated planetary or spur gearhead. Simple two-wire control, high starting torque, compact everything.
Low-voltage windings from 12 to 96 V cover common battery buses, and reversing duty is standard rather than an option.
Laminated yoke for quick field response, commutators turned and film-run before assembly closes.
