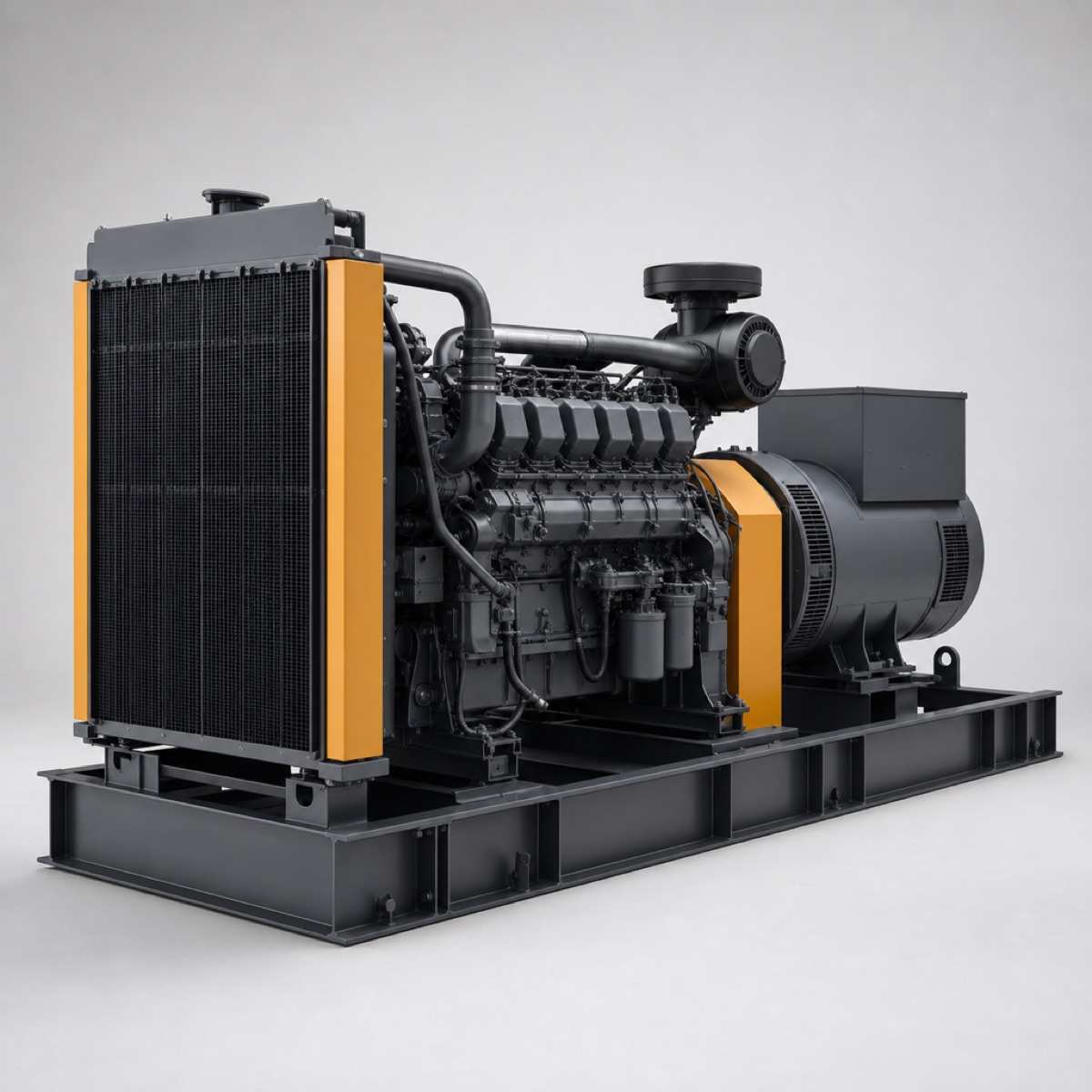

Open frame diesel generating set on a bunded baseframe

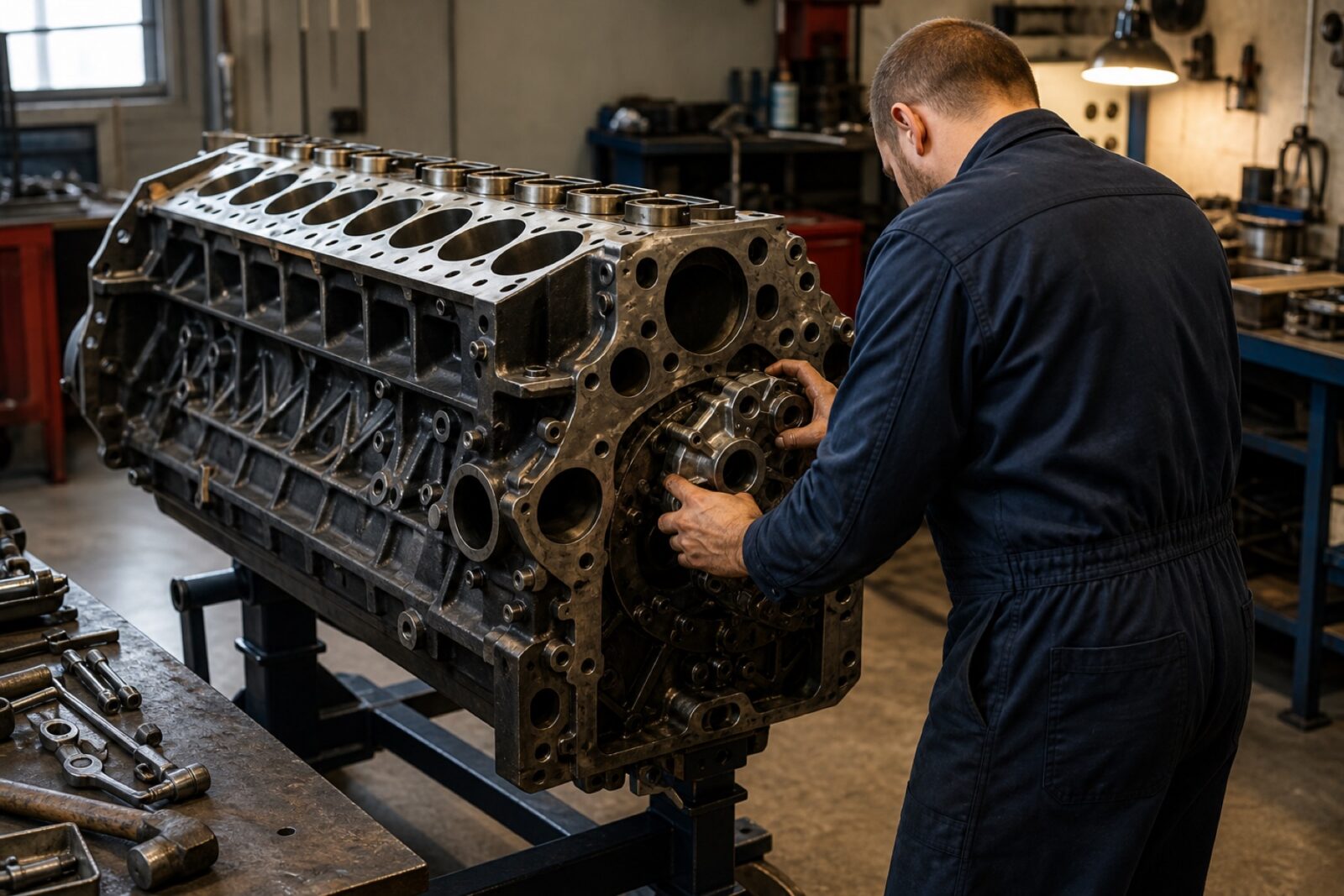

Mechanic assembling a large industrial diesel engine block on a workshop stand

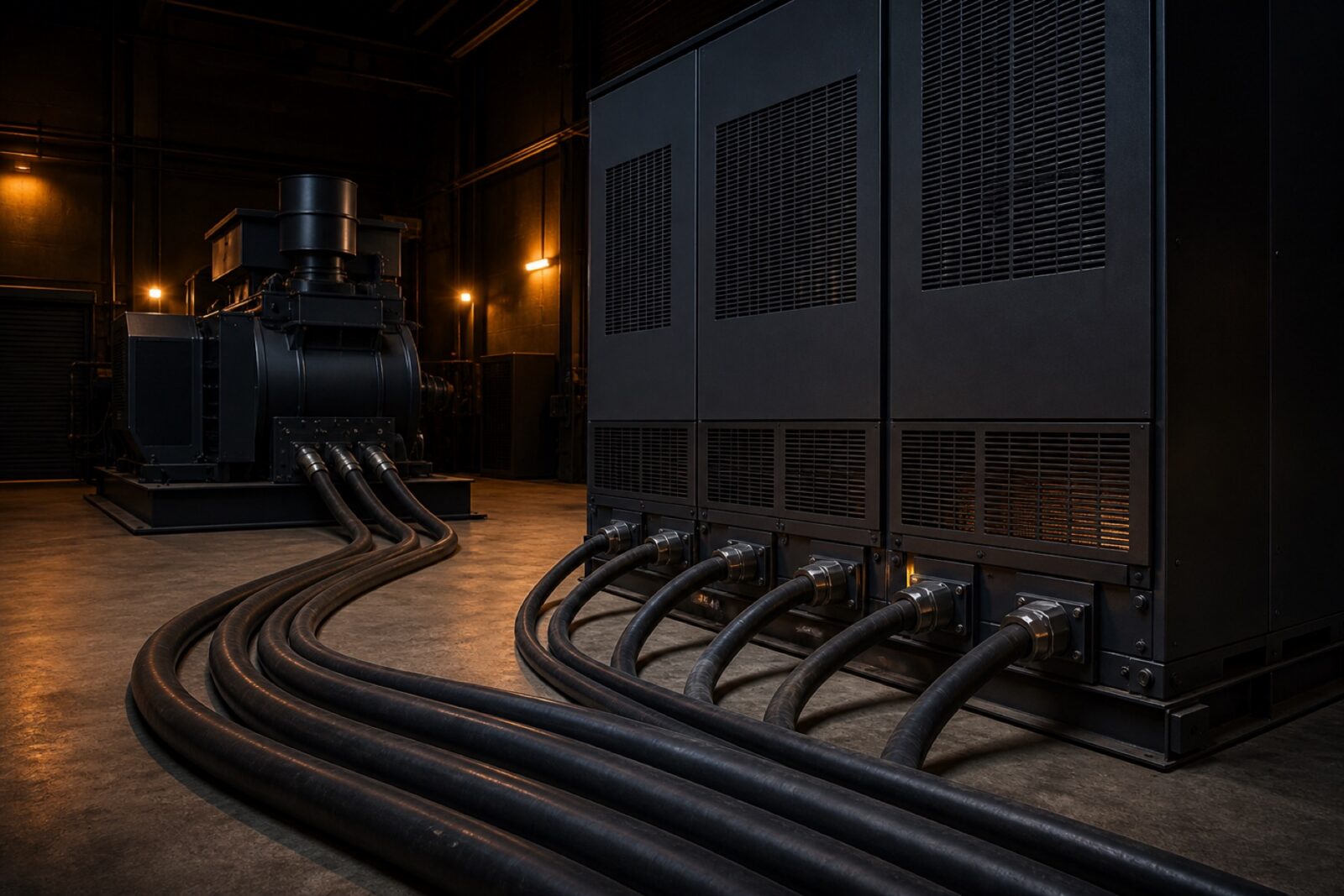

Generator load-bank testing bay with heavy cables and a resistive load bank

PC-D110

PC-D110 Open Frame Diesel Generating Set

A 110 kVA standby set on a bunded baseframe, sized for a single plant room and a small block load.

  • 230 L bunded base tank, roughly 13 hours of running at 75% of prime rating
  • Single-bearing alternator, directly coupled, with anti-vibration mounts on the baseframe
  • Mains-failure control panel with three-attempt start sequence and full alarm annunciation
  • Lifting points and forklift pockets on the baseframe for installation without a spreader beam
Talk to an engineer

Specifications

Standby rating (ESP)
110 kVA / 88 kW
Prime rating (PRP)
100 kVA / 80 kW
Voltage / frequency
400 / 230 V, 3-phase, 50 Hz
Engine
4-cylinder in-line, 4.5 L, turbocharged diesel
Alternator
Brushless, self-excited, AVR regulated, Class H, IP23
Fuel at 75% load
17.6 L/h
Sound pressure at 7 m
84 dB(A), open frame
Dimensions / dry weight
2450 x 1000 x 1520 mm / 1180 kg

Product detail

The PC-D110 is the size most single-building standby installations settle on: enough capacity for lighting, small power, a lift and one fire pump, without the cooling and exhaust load of a larger frame. It is supplied open, on a bunded baseframe, for installation inside a plant room or an acoustic switch house that has already been built.

Rating basis

Ratings follow the ISO 8528 definitions. The standby rating (ESP) is a variable load with no overload capability, intended for use when the mains supply fails. The prime rating (PRP) is a variable load for unlimited hours with a permitted overload. Both figures on this page are quoted at 25 degrees C and 100 m altitude; above that, derating applies and we calculate it against the actual site conditions before confirming a rating.

Engine and cooling

A four-cylinder turbocharged engine driving through a direct-coupled single-bearing alternator. The radiator is sized for 50 degrees C ambient with the standard fan, and the set is supplied with a flexible exhaust bellows and a residential-grade silencer as standard. Exhaust back pressure limits are stated on the drawing so the installing contractor can size the run.

Control

The standard panel is a mains-failure controller with three start attempts, engine protection shutdowns, and volt-free contacts for a building management system. Remote monitoring over Modbus is available on the same panel.

Emissions

[Client to confirm the emissions stage or tier required in the destination market and which engine variant is being supplied against it. Powercore does not hold a type approval or emissions certificate for this page.]

Enquire about this model

PC-D110 Open Frame Diesel Generating Set

Send the connected load, the starting profile and the duty class, and we will confirm the rating, the build and the shipping option.

Include the load schedule and the site conditions. The reply comes from the engineer who sizes the set.
