Wear Parts

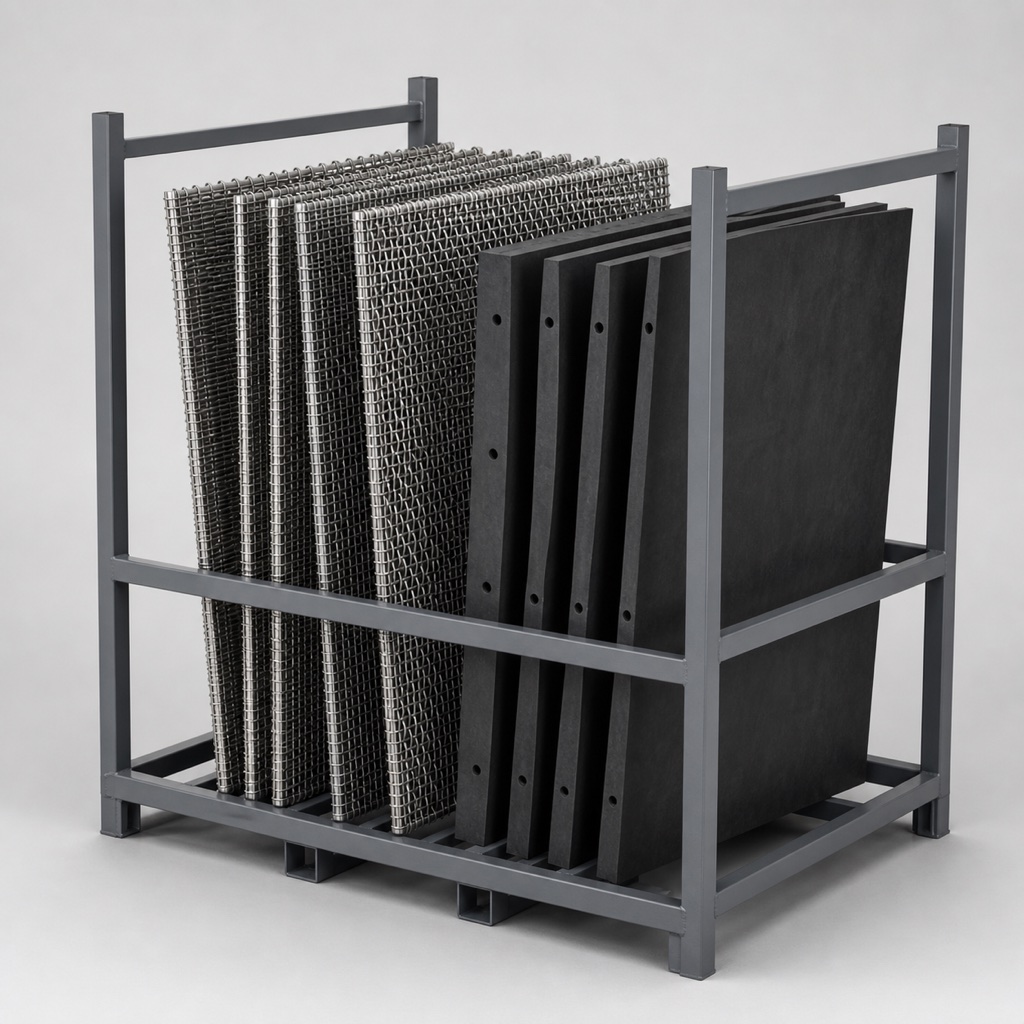

RS-SM08 Screen Media Set

Woven wire, polyurethane and rubber media cut to deck.

  • DimensionsPanels cut to deck, typical 305 × 610 mm modules
  • Feed OpeningApertures 0.5–100 mm per specification
  • Capacity RangeOne full deck change per set
  • Motor PowerNot applicable — replacement parts

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions Panels cut to deck, typical 305 × 610 mm modules
Feed Opening Apertures 0.5–100 mm per specification
Capacity Range One full deck change per set
Motor Power Not applicable — replacement parts
Weight From 120 kg per set
Certification Manufactured to original equipment specification
Warranty 12 months against manufacturing defects

Overview

The RS-SM08 set supplies a full deck change: woven wire cloth, polyurethane panels or rubber blankets cut and hooked for the specific screen model, plus the tensioning hardware and channel rubber the change-out consumes.

Media choice follows the cut: wire for open area and sharp cuts, polyurethane for wear life on abrasive feeds, rubber for impact zones under the feed box. The set can mix media by deck so each cut point gets the right surface, and every panel is marked on the packing list by deck and position.

Request a Quote

Tell us about your application and required quantity. Our engineers reply within one business day.
