Absorption

Aerocloud C60 Ceiling Absorber

A suspended ceiling cloud that works far harder than a flat panel.

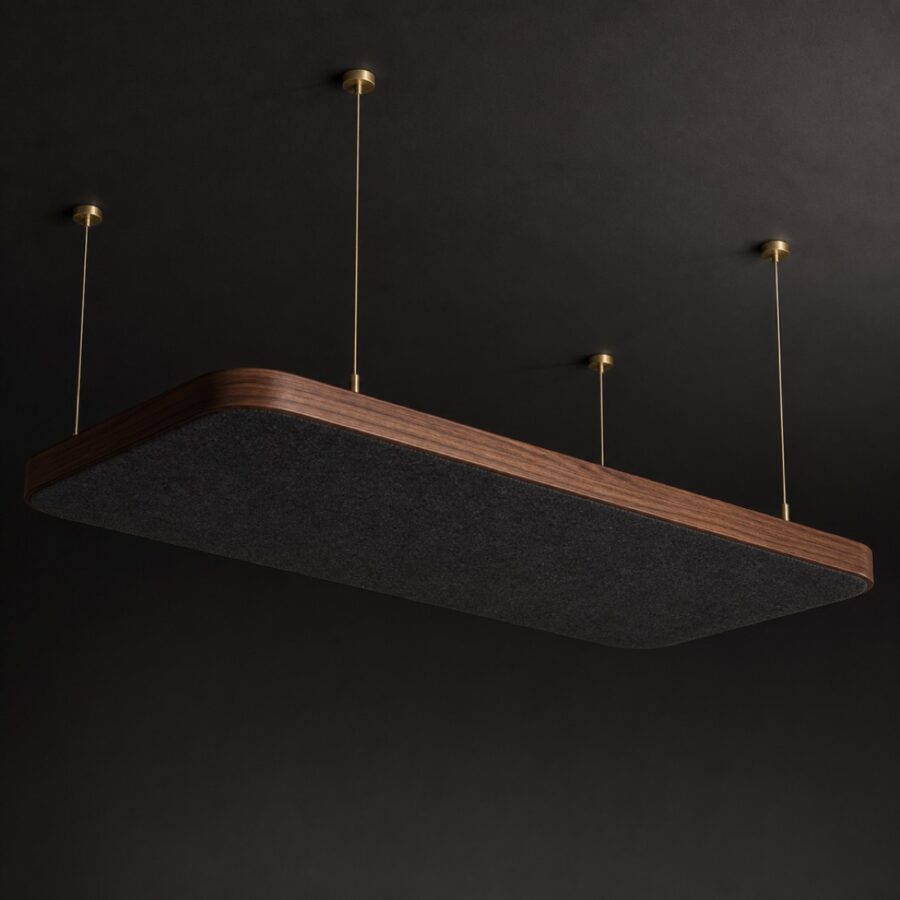

Aerocloud C60 Ceiling Absorber acoustic product photograph
Absorption Podcast Booth Recording Studio

A 120 mm suspended cloud hung on brass aircraft cable. The air volume behind it does as much work as the fill itself, which is why it reaches down to 100 Hz.

Ask a Technical Question
Acoustic Specification
Model Reference QF-C60-1212
Absorption Rating (NRC) 0.95
Absorption Average (SAA) 0.94
Absorption Class Class A
Effective Frequency Range 100 Hz – 8 kHz
Nominal Dimensions 1200 × 1200 mm
Depth 120 mm
Core Material Mineral wool, 45 kg/m³
Facing / Frame Recycled PET felt, walnut edge banding
Mounting Type Suspended below ceiling
Unit Weight 9.8 kg
Fire Rating Class A
Standard Lead Time 4 weeks
Minimum Order 2 units

Why a cloud instead of a flat ceiling panel

Hanging a panel below the ceiling, rather than fixing it flat against it, roughly doubles what the same panel can do. The air gap lets it catch sound a flush-mounted panel simply misses.

Construction

  • Aluminium frame with hardwood edge banding.
  • Four-point suspension on slim cables with locking adjusters.
  • Fine level adjustment at each corner.
  • Optional built-in cable channel for lighting runs.

Layout

Above a desk or mixing position, one cloud centred overhead covers the ceiling reflection for both speakers. In larger rooms, hanging clouds at two different heights keeps the ceiling looking layered and the sound even.
