Bass Control

Vertical Baffle Array VB-90

Hanging felt baffles that work from both faces at once.

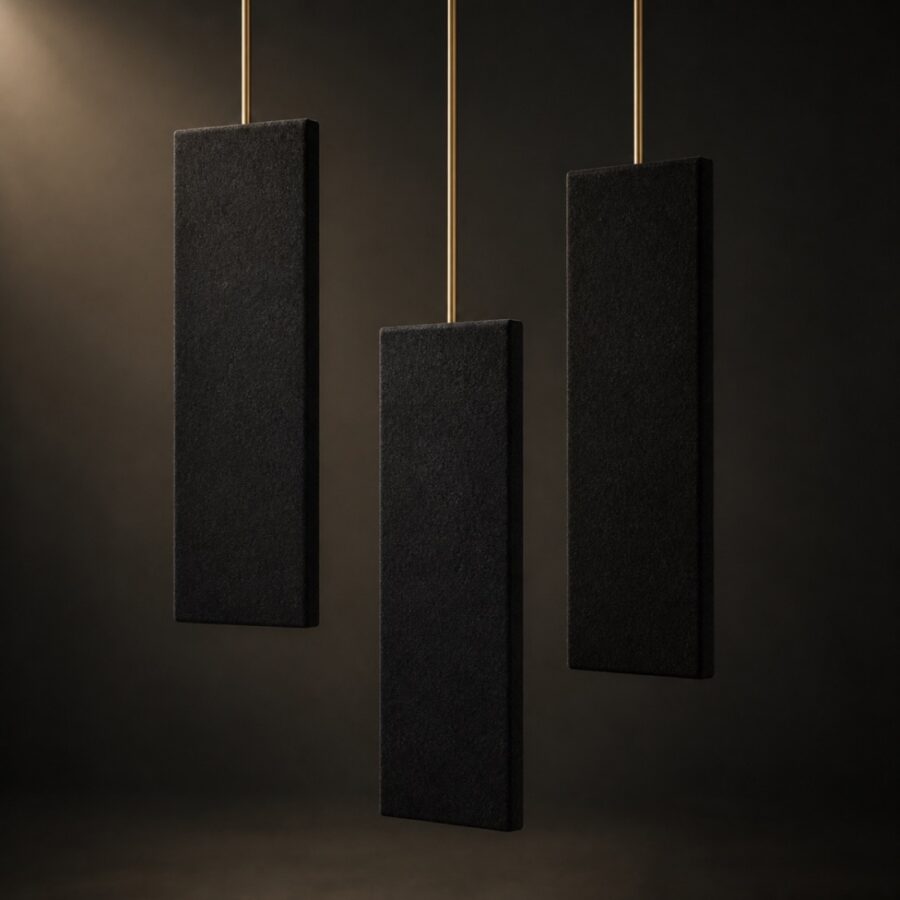

Vertical Baffle Array VB-90 acoustic product photograph
Bass Control Conference Room Recording Studio

Free-hanging baffles on brass rods, absorbing from both sides. Twice the exposed surface per square metre of ceiling, and useful energy removal down to 125 Hz.

Ask a Technical Question
Acoustic Specification
Model Reference QF-VB90-1200
Absorption Rating (NRC) 0.85
Absorption Average (SAA) 0.83
Absorption Class Class A
Effective Frequency Range 125 Hz – 8 kHz
Nominal Dimensions 1200 × 400 mm per baffle
Depth 45 mm
Core Material Compressed recycled PET, 90 mm effective
Facing / Frame Self-finished felt, both faces
Mounting Type Suspended, brass rod and ceiling anchor
Unit Weight 2.1 kg per baffle
Fire Rating Class A
Standard Lead Time 3 weeks
Minimum Order 6 baffles

Twice the working surface

A baffle hangs free, so both faces work on the sound. For a given ceiling area you get roughly double the effect of a flat tile, and the vertical orientation catches sound bouncing between the walls — something a flat ceiling panel misses entirely.

Configuration

  • Supplied in sets of six with staggered drop lengths.
  • Metal rod suspension, adjustable in height.
  • Ten colours, mixable within a single array.
  • Fully demountable when the ceiling needs access.

Best applications

Workshops, open-plan offices, live rooms and anywhere the ceiling has to stay accessible. In studios we hang them over the recording area where a solid ceiling panel would make the room too quiet.

Same Product Line

Often specified together

Product Inquiry

Quote Vertical Baffle Array VB-90

Tell us the quantity, the room it is going into and any finish requirements. Volume pricing, custom sizes and bespoke veneer are all available on request.
