Cutting & Slicing

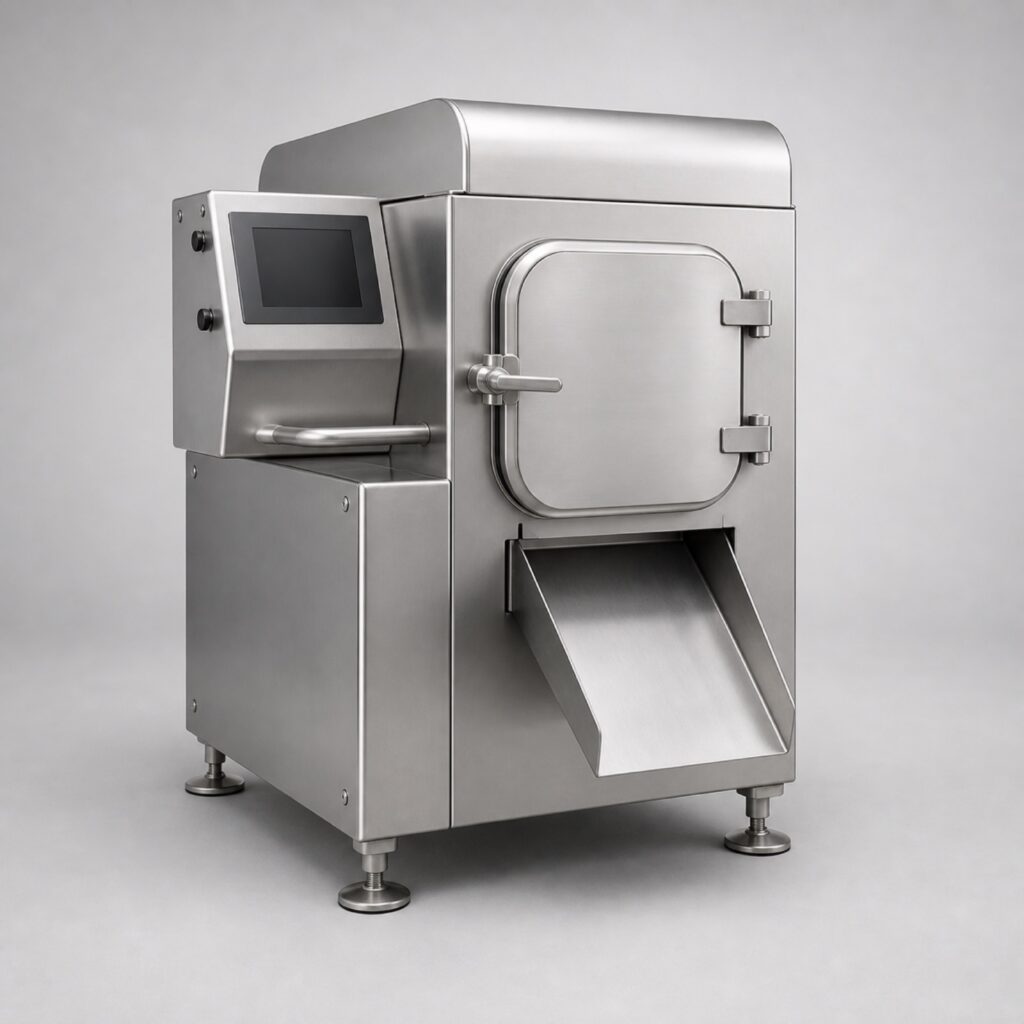

CX-CS140 Industrial Dicer

Compact dicer that cuts uniform cubes and strips for ready-meal lines.

  • Dimensions1,720 × 880 × 1,480 mm
  • Throughput RangeUp to 1,500 kg/h (typical, cut dependent)
  • Power Supply400 V three-phase, 3 kW
  • Contact MaterialsAISI 304 stainless steel

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions 1,720 × 880 × 1,480 mm
Throughput Range Up to 1,500 kg/h (typical, cut dependent)
Power Supply 400 V three-phase, 3 kW
Contact Materials AISI 304 stainless steel
Cleaning Method Washdown; grid sets on wash rack
Certification CE machinery directive design basis
Warranty 24 months

Overview

The CX-CS140 produces cubes, strips and flat cuts through an enclosed cutting chamber with interchangeable grid sets. Cut geometry stays uniform because feed pressure, blade speed and grid position are mechanically linked — the dice from hour eight matches the dice from hour one.

Grid sets swap in minutes through the rounded front access door, and every cutting component fits the supplied wash rack so the sanitation crew cleans a complete set, not a loose pile of parts. The chamber floor slopes to a single drain point for fast rinse-down.

The discharge chute matches standard 200-series conveyor infeeds, and a soft-start drive protects delicate products from smearing at startup.
