Freezing & Cooling

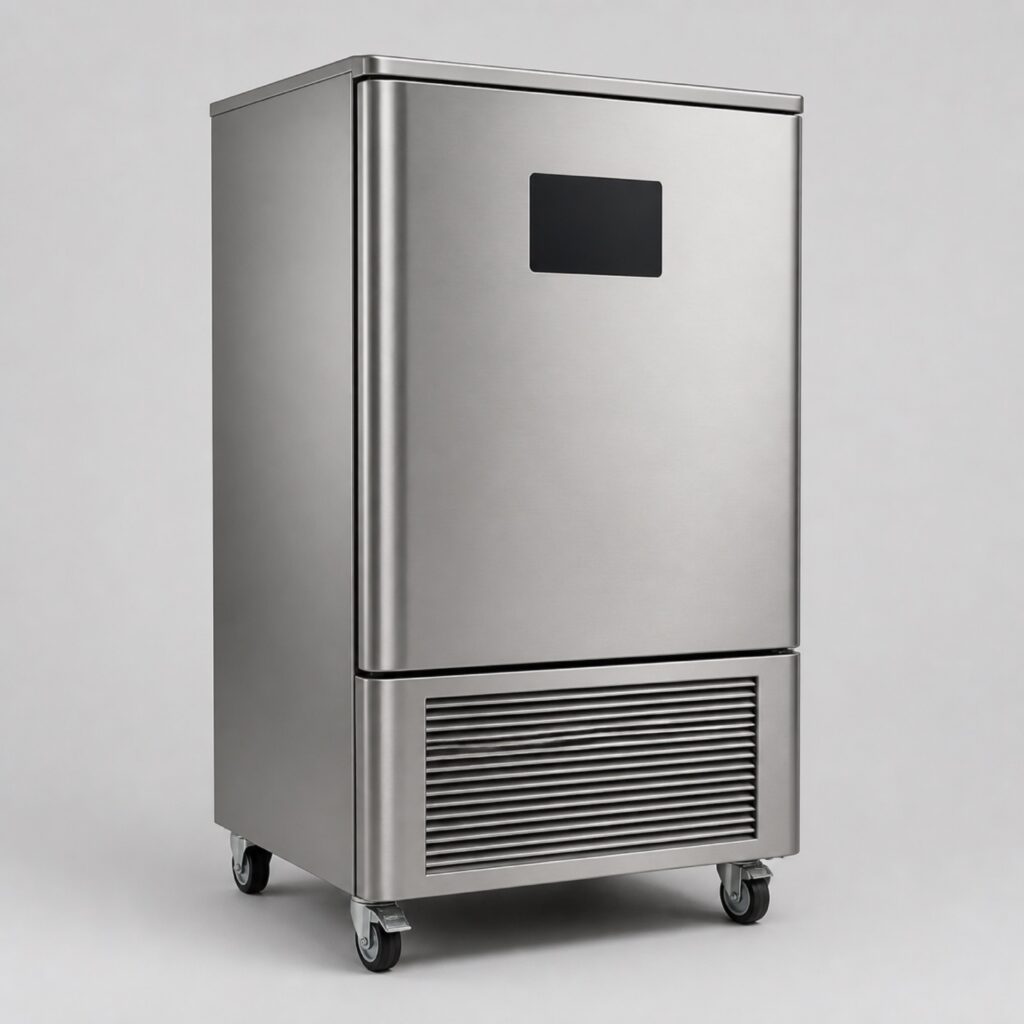

CX-FZ150 Blast Chiller Cabinet

Blast chiller that takes cooked batches through the danger zone on schedule.

  • Dimensions900 × 1,050 × 1,950 mm
  • Throughput RangeBatches up to 150 kg (typical)
  • Power Supply400 V three-phase, 4.5 kW; integral refrigeration
  • Contact MaterialsAISI 304 stainless steel

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions 900 × 1,050 × 1,950 mm
Throughput Range Batches up to 150 kg (typical)
Power Supply 400 V three-phase, 4.5 kW; integral refrigeration
Contact Materials AISI 304 stainless steel
Cleaning Method Washdown interior; tool-free evaporator cover
Certification CE machinery directive design basis
Warranty 24 months

Overview

The CX-FZ150 pulls cooked product temperature down in a controlled airflow cabinet, moving batches through the critical cooling range on a repeatable schedule. A core probe ends the cycle on measured temperature rather than elapsed time, so dense loads are chilled through, not just surface-cold.

The cabinet interior is one-piece stainless with coved corners and a front drain, and the rounded insulated door closes on a heated frame that resists icing. Rack guides fit standard gastronorm and bakery formats without adapters.

Cycle records export for production documentation, and the evaporator cover opens without tools for coil rinsing during the cleaning round.
