Mixing & Blending

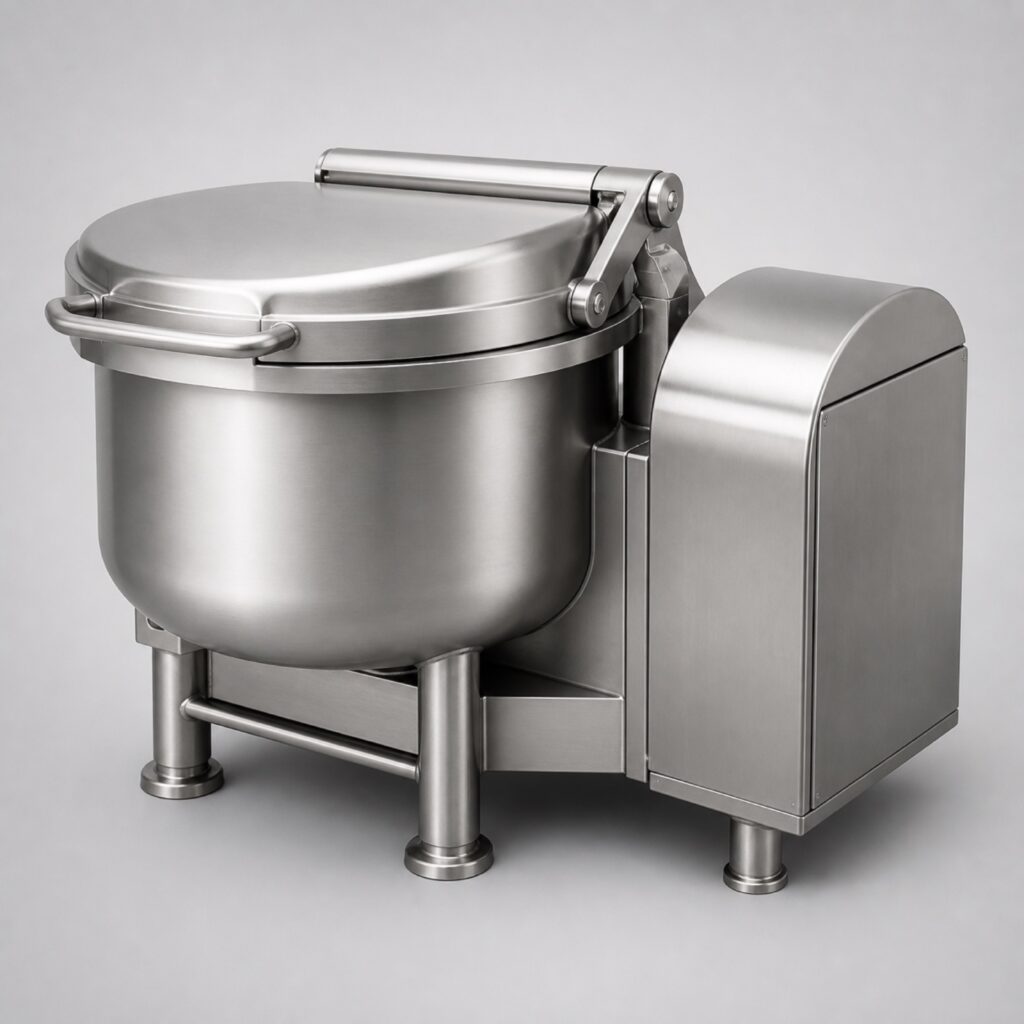

CX-MB300 Vacuum Paddle Mixer

Vacuum paddle mixer that blends delicate recipes without smearing texture.

  • Dimensions2,150 × 1,380 × 1,720 mm
  • Throughput RangeBatches 120–300 L (typical)
  • Power Supply400 V three-phase, 7.5 kW
  • Contact MaterialsAISI 304 stainless steel, food-grade seals

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions 2,150 × 1,380 × 1,720 mm
Throughput Range Batches 120–300 L (typical)
Power Supply 400 V three-phase, 7.5 kW
Contact Materials AISI 304 stainless steel, food-grade seals
Cleaning Method Washdown; CIP-ready bowl and lid
Certification CE machinery directive design basis
Warranty 24 months

Overview

The CX-MB300 mixes under vacuum in a rounded stainless bowl, folding ingredients with interchangeable paddle profiles instead of tearing them. Removing air during mixing keeps colour stable and texture intact — the difference is visible on marinated proteins and delicate salads alike.

The bowl interior is polished with fully radiused corners, and the paddle shaft seal is a food-grade cartridge that replaces from the front without dismantling the drive. Mixing programs store speed, direction changes and vacuum level, so a recipe runs the same on every shift.

The hinged lid opens on gas struts to standing height, and the discharge tilts the bowl fully forward for clean, complete emptying between batches. The frame is designed for hygienic operation with open, washdown-friendly clearances underneath.
