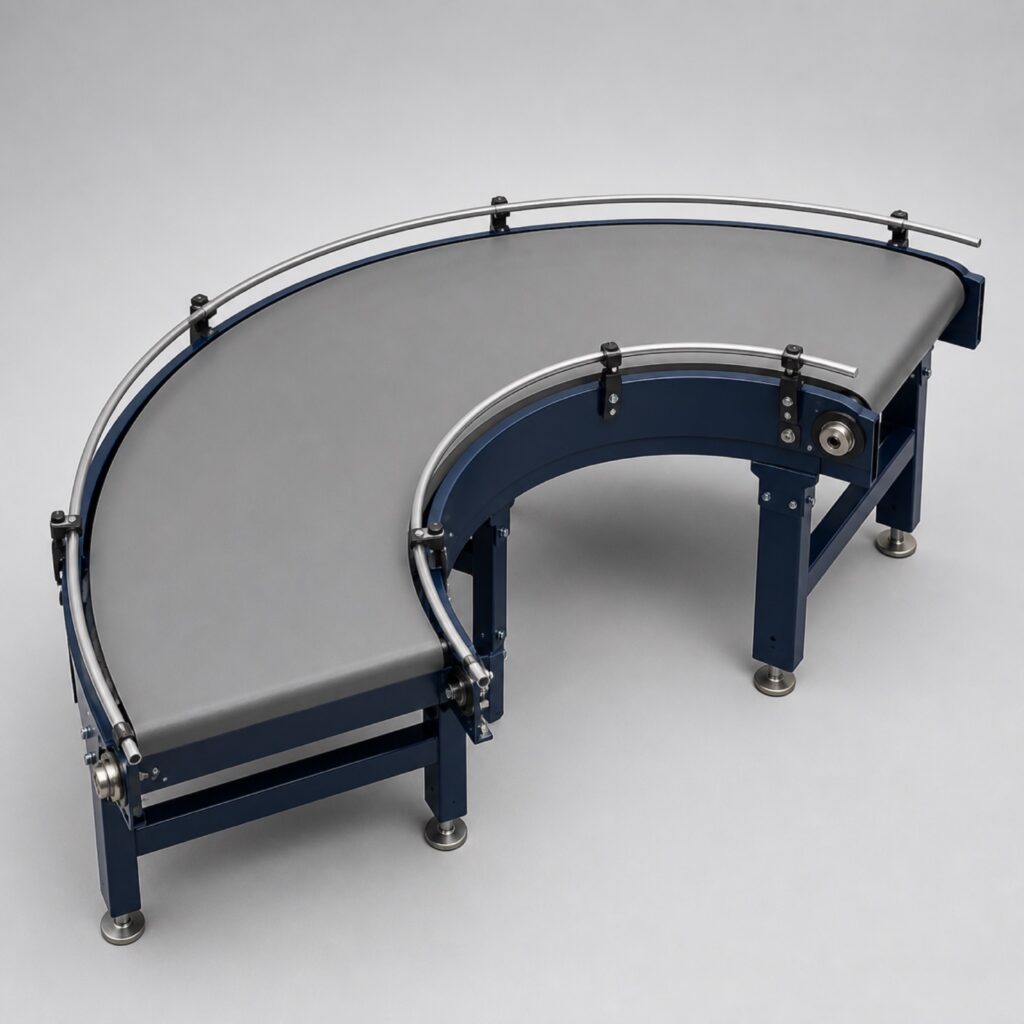

A true friction-driven belt curve that holds orientation and spacing through 90 degrees.
Response within one business day. Include duty point or application details for a faster match.
| Throughput | matches line, up to 2.0 m/s |
|---|---|
| Belt width | 500 to 900 mm |
| Speed range | 0.3 to 2.0 m/s |
| Load capacity | 35 kg per package |
| Frame | Powder-coated steel, 90 degrees |
| Power | 0.75 to 1.5 kW |
| Warranty | 2 years |
Rollers fan packages out in a bend; a belt curve carries them through it unchanged. The CVC-90 keeps labels facing the scanner and gaps intact for downstream induction, which is why sorter infeeds specify belt curves and not roller ones.
The tapered belt rides on guided bearings at the outer edge — no chains, no drums to re-lag.
Joins two lanes into one clean stream with zoned control that never lets cartons…
