Moves product between floors on a continuous spiral belt — one drive, no reciprocating lift to queue behind.
Response within one business day. Include duty point or application details for a faster match.
| Throughput | up to 2,000 units/h |
|---|---|
| Usable width | 300 / 400 / 600 mm |
| Speed range | 0.3 to 1.0 m/s |
| Load capacity | 50 kg/m of belt |
| Frame | Steel mast, powder-coated |
| Power | 2.2 to 4.0 kW single drive |
| Warranty | 2 years |

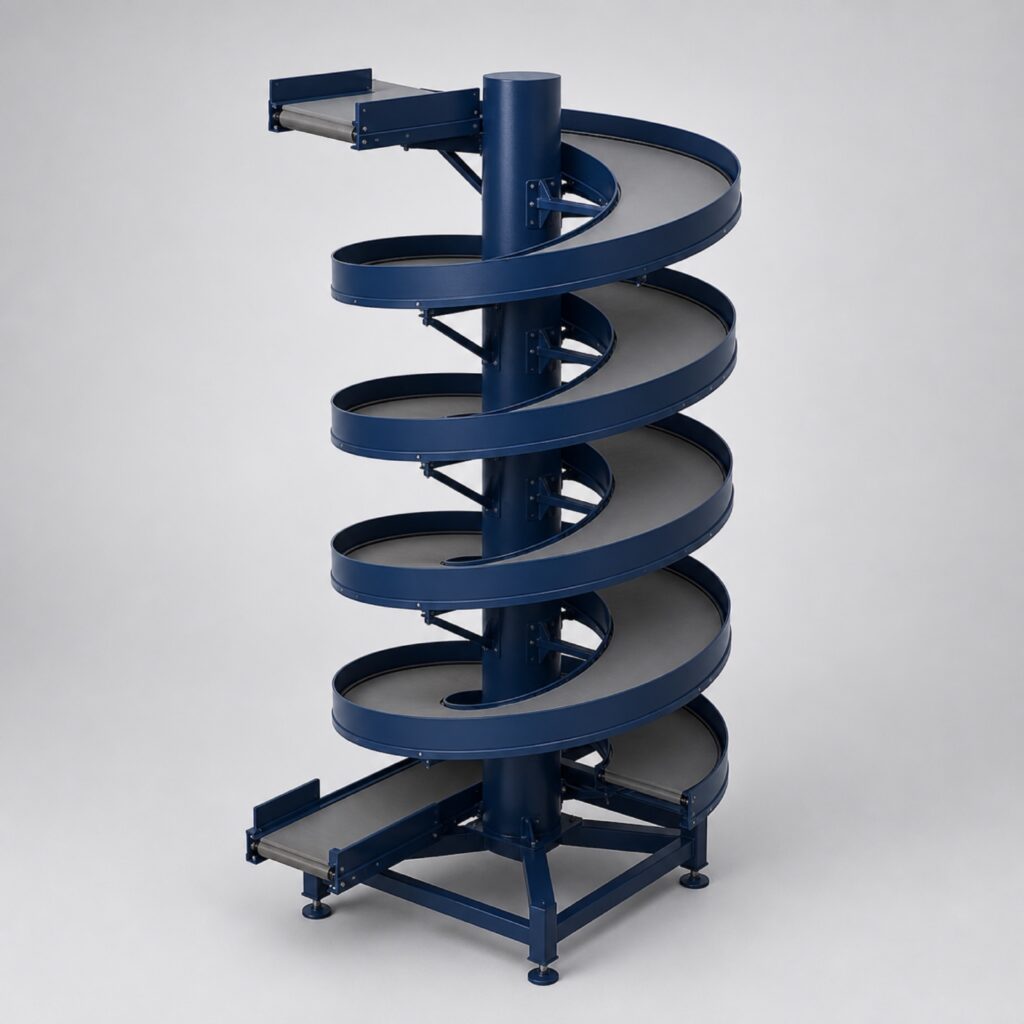

The CVS-V climbs or descends up to eight metres on a continuous helix around a single mast, moving product between mezzanine levels in a footprint barely wider than the belt itself. Flow never stops to wait for a platform, which is why spirals replace vertical lifts on any line that values rate.
The slat belt grips product on the climb without cleats, so cartons, totes and shrink-wrapped trays ride the same spiral.
Two independent lanes share one mast — up and down traffic in a single…
