Spare Parts

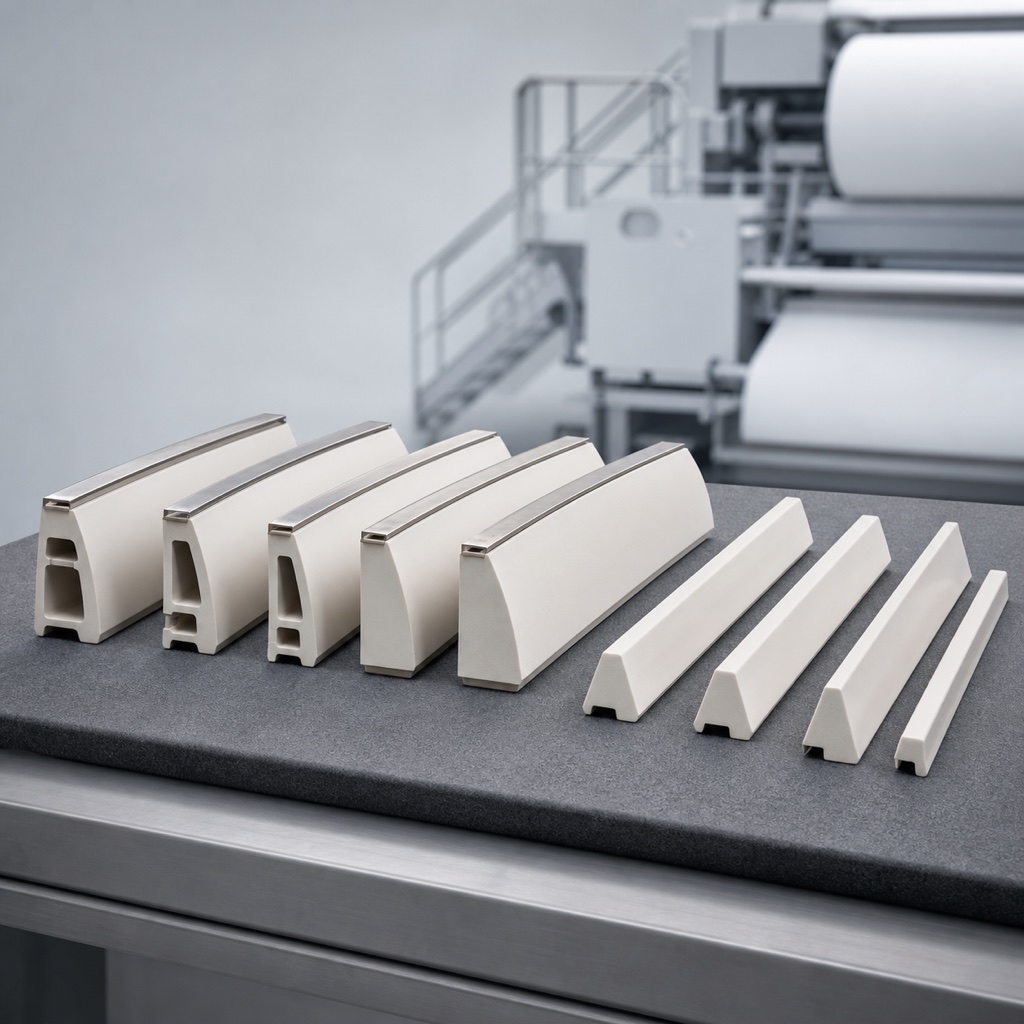

FL-SP220 Dewatering Elements Set

Suction covers, foils and forming board tops ground flat as one set, edges radiused at the factory.

  • DimensionsSegments to machine width, crated in position order
  • Working WidthUp to 3,200 mm per set
  • Design SpeedRated for wire speeds up to 1,600 m/min
  • Power SupplyNot applicable — replacement parts

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions Segments to machine width, crated in position order
Working Width Up to 3,200 mm per set
Design Speed Rated for wire speeds up to 1,600 m/min
Power Supply Not applicable — replacement parts
Basis Weight Range Position-specific ceramic grade
Certification Flatness protocol per set
Warranty 12 months against manufacturing defects

Overview

The FL-SP220 set supplies the ceramic surfaces the wire runs on: suction box covers, foil blades and forming board tops, ground flat as a set so the wire meets one continuous plane instead of a staircase of part-worn edges.

Segments are alumina or zirconia to position, bonded to stainless holders that drop into the existing T-slots. Edges arrive radiused and polished — the finish that decides wire life is done at the factory, not with a stone on the machine.

Each set ships in position order with a laminated placement drawing. Old segments return in the same crate for wear mapping, and the wear report arrives with the next quotation so replacement intervals track reality.
