Purified Water Systems

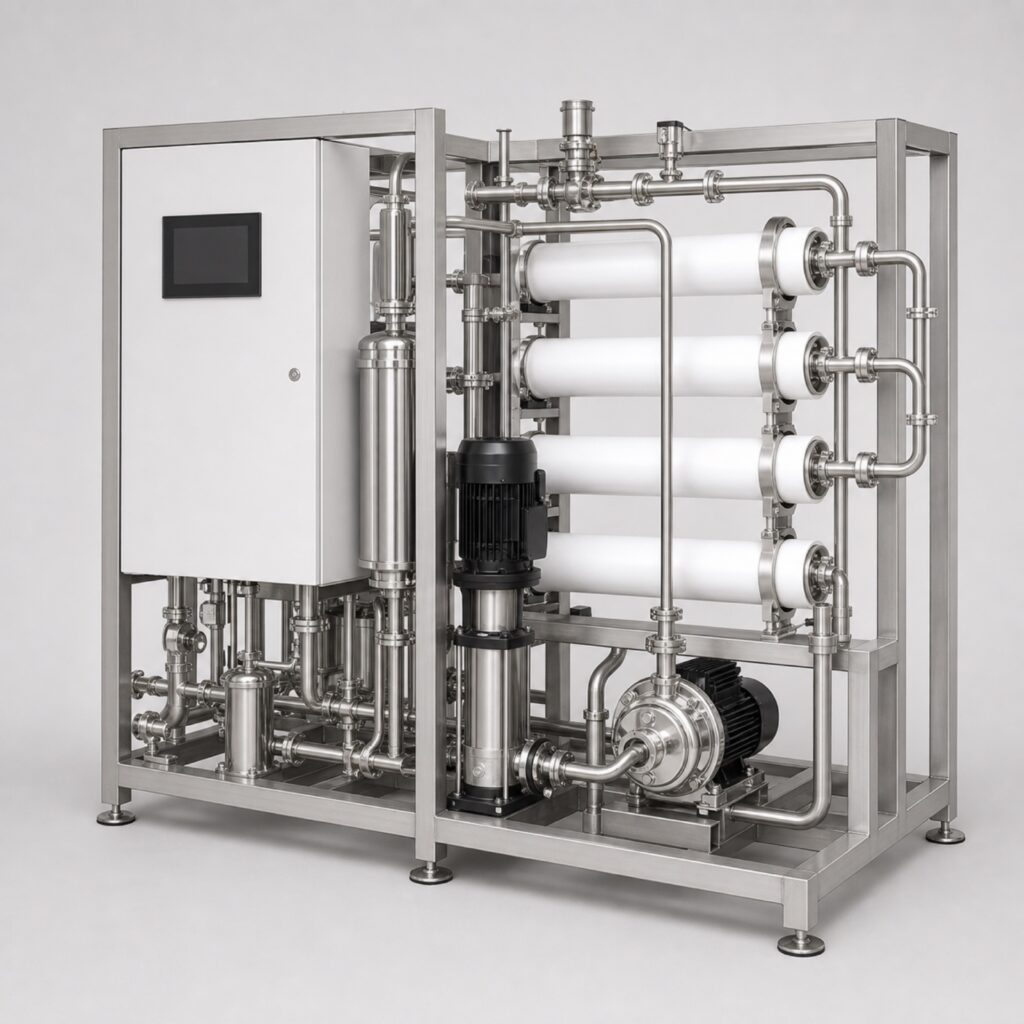

SP-PW2000 Purified Water Skid

Softening, RO and EDI on one pre-piped skid that sends water to drain by itself when quality drifts.

  • Dimensions2,150 × 950 × 1,850 mm (typical)
  • Output RangeUp to 2,000 L/hour permeate (typical, feed dependent)
  • Power Supply400 V three-phase, 7.5 kW (typical)
  • Contact MaterialsStainless steel 316L and sanitary polymer membrane housings

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions 2,150 × 950 × 1,850 mm (typical)
Output Range Up to 2,000 L/hour permeate (typical, feed dependent)
Power Supply 400 V three-phase, 7.5 kW (typical)
Contact Materials Stainless steel 316L and sanitary polymer membrane housings
Control Interface Panel control with conductivity and TOC trending
Certification Designed to support common GMP practices; CE design basis
Warranty 24 months

Overview

The SP-PW2000 generates purified water through softening, reverse osmosis and electrodeionisation on one pre-piped skid. Conductivity and TOC monitor continuously at the outlet, and the skid recirculates to drain automatically whenever quality drifts out of the set band — off-spec water never reaches the loop.

Membranes and EDI stacks mount for front access, sampling valves sit at every stage boundary, and the skid arrives factory wet-tested with its piping documentation, weld logs and instrument certificates in one dossier — the paperwork that qualification teams actually ask for.

The system is designed to support common GMP practices and common pharmacopoeia water quality expectations; final qualification remains with the operating site.
