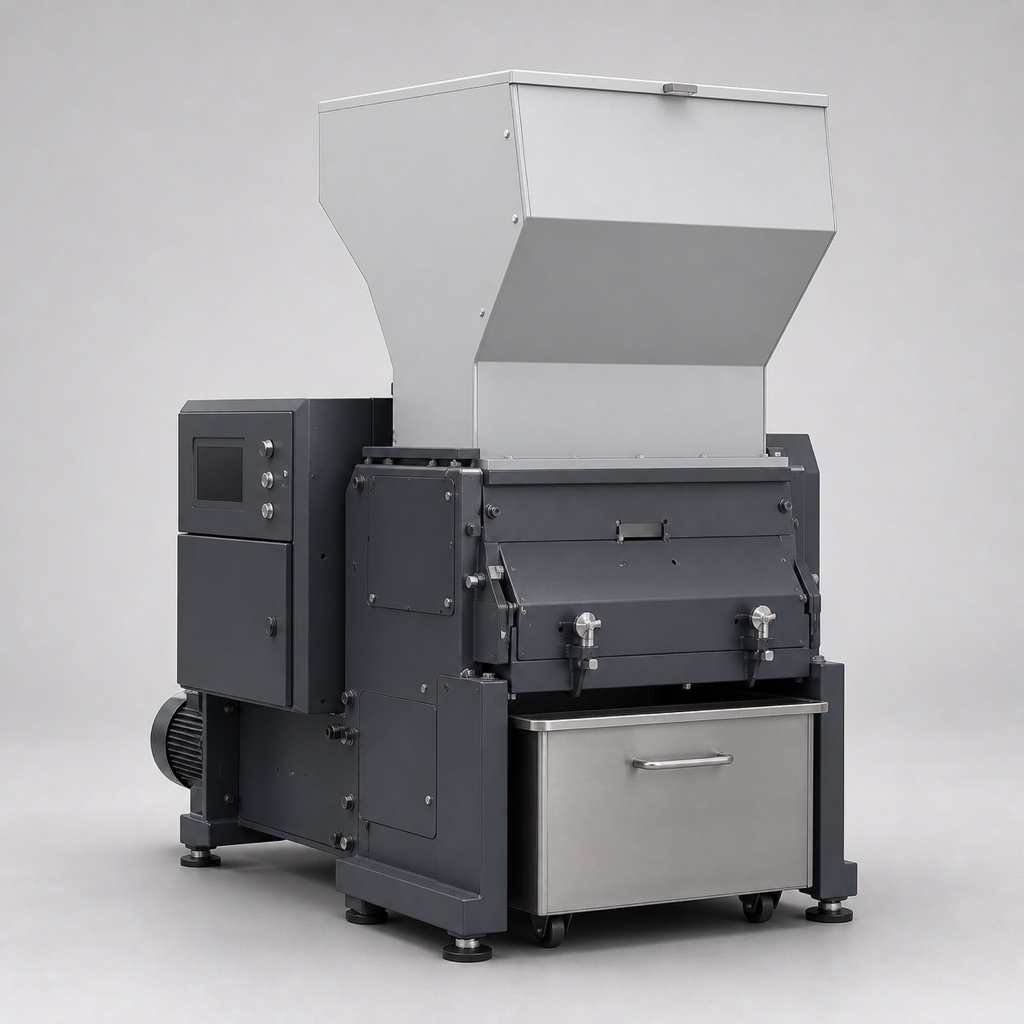

MS-GR300 Central Granulator

Sound-insulated central granulator for sprues, rejects and start-up lumps.

  • Dimensions1,650 × 1,250 × 2,050 mm (typical)
  • Rotor Width300 mm staggered rotor
  • Typical ThroughputMaterial- and screen-dependent; sized at quotation
  • Power Supply400 V three-phase, 50/60 Hz

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions 1,650 × 1,250 × 2,050 mm (typical)
Rotor Width 300 mm staggered rotor
Typical Throughput Material- and screen-dependent; sized at quotation
Power Supply 400 V three-phase, 50/60 Hz
Noise Control Sound-insulated hopper and chamber housing
Certification CE machinery directive design basis
Warranty 24 months

Overview

The MS-GR300 handles the mixed reality of a molding shop’s scrap stream — sprues, rejected parts and start-up lumps — in a staggered-rotor cutting chamber that pulls material in aggressively and produces a uniform regrind with a low fines share.

The cutting chamber opens with lifting gear points and hinged housings, so knife changes and cleanouts are a documented routine, not an improvisation. Knives adjust in a fixture outside the machine, keeping gap-setting accurate and hands away from edges.

Screen sizes swap to match the regrind spec, and the discharge bin couples directly to a conveying line for closed-loop reuse at the press.
