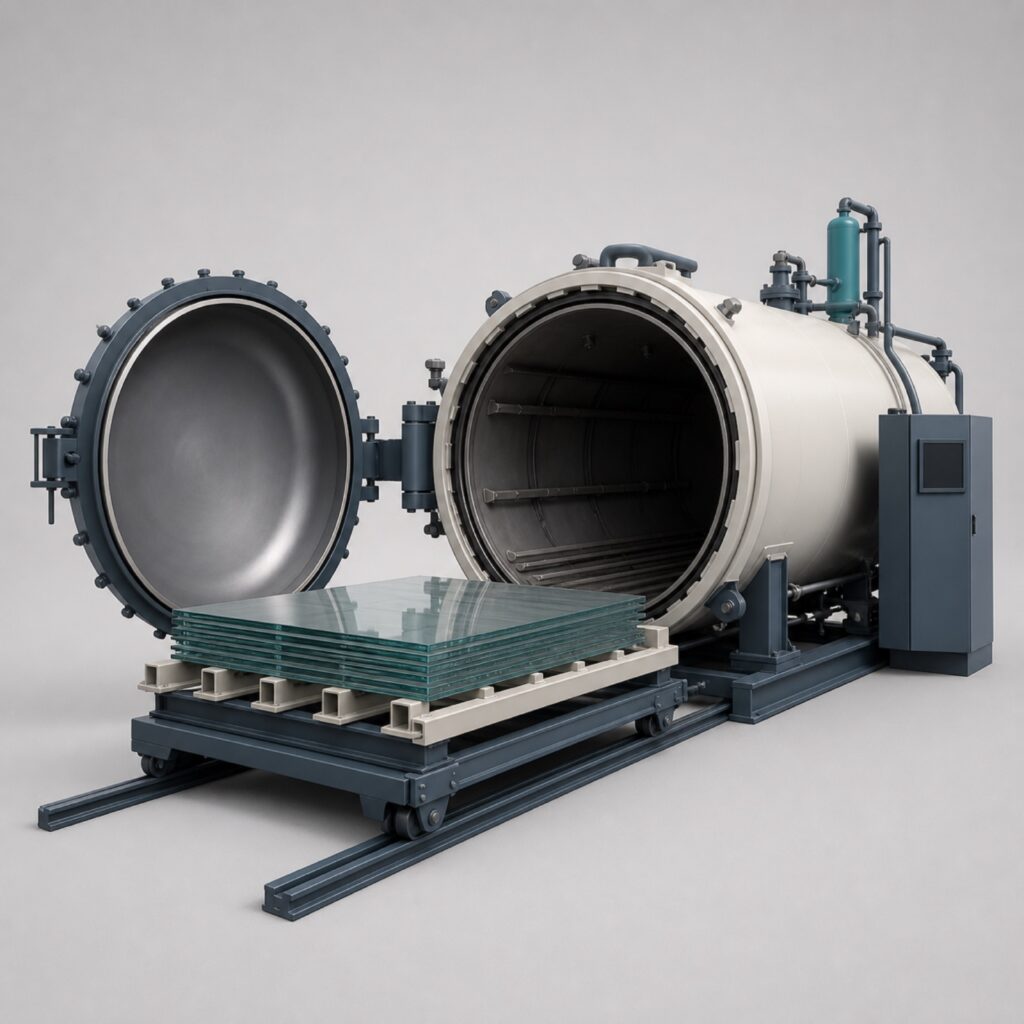

VG-AC3280 Laminating Autoclave

PVB laminating autoclave with recorded pressure-temperature cycles.

  • DimensionsVessel 3,200 × 8,000 mm; installed 10,500 × 4,200 × 4,000 mm (typical)
  • Max Glass Size2,600 × 6,000 mm panels
  • Glass Thickness RangeLaminate builds up to 100 mm
  • Power Supply400 V three-phase, 210 kW connected (typical)

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions Vessel 3,200 × 8,000 mm; installed 10,500 × 4,200 × 4,000 mm (typical)
Max Glass Size 2,600 × 6,000 mm panels
Glass Thickness Range Laminate builds up to 100 mm
Power Supply 400 V three-phase, 210 kW connected (typical)
Processing Speed Full cycle 3.5–5 h per batch (typical)
Certification CE pressure equipment design basis
Warranty 24 months

Overview

The VG-AC3280 finishes PVB laminate under the controlled heat and pressure that turn a tacked sandwich into a permanently bonded safety panel. The vessel circulates air through a ducted fan wall for even temperature at every rack position, and cycles run from stored recipes with full pressure-temperature recording per batch.

The quick-acting door interlocks against pressure, and loading racks roll in on floor rails with capacity for mixed sizes in one cycle. Cycle records export for quality documentation, batch by batch, serial by serial.
