Tempering Furnaces

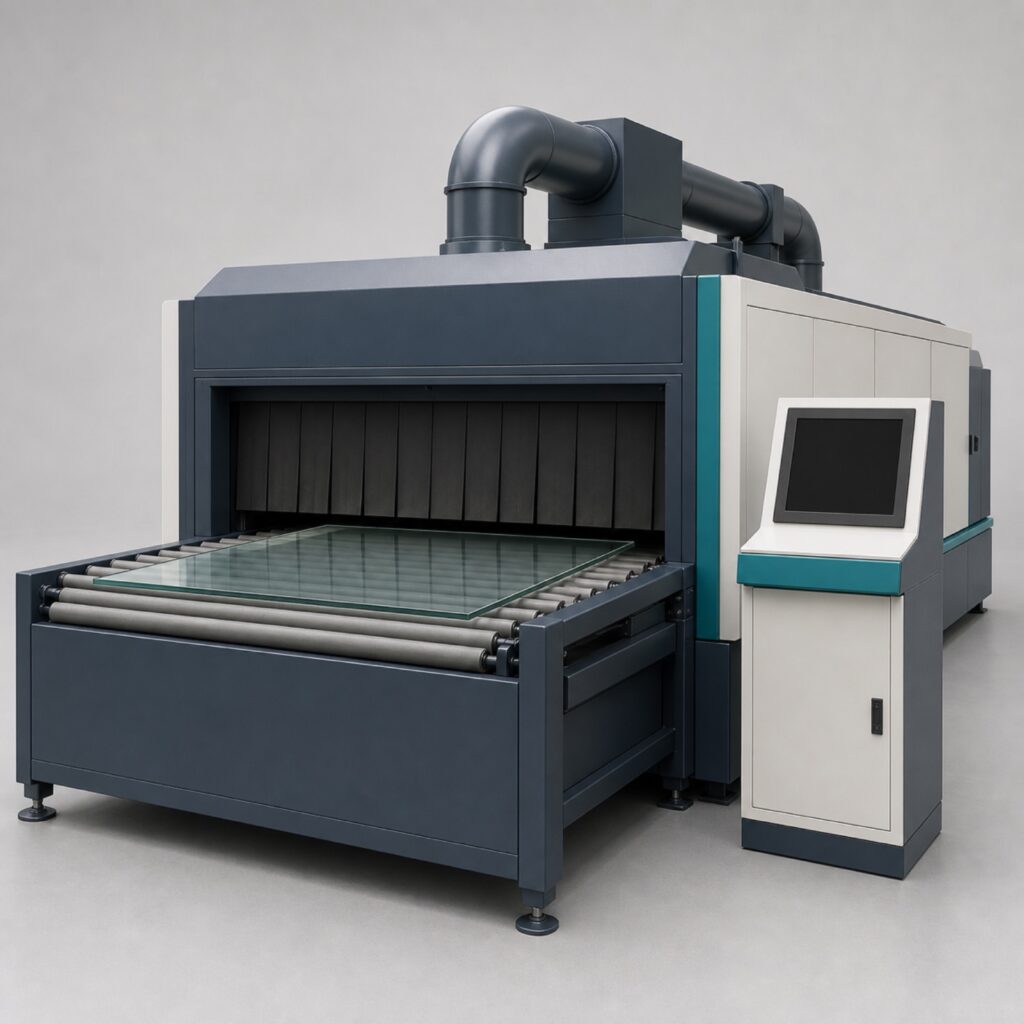

VG-TF1225 Compact Tempering Furnace

Compact tempering furnace sized for shower doors, shelves and appliance glass.

  • Dimensions16,800 × 3,600 × 2,900 mm (typical installed)
  • Max Glass Size1,200 × 2,500 mm
  • Glass Thickness Range4–15 mm
  • Power Supply400 V three-phase, 320 kW connected (typical)

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions 16,800 × 3,600 × 2,900 mm (typical installed)
Max Glass Size 1,200 × 2,500 mm
Glass Thickness Range 4–15 mm
Power Supply 400 V three-phase, 320 kW connected (typical)
Processing Speed Cycle from 200 s at 4 mm (typical)
Certification CE machinery directive design basis
Warranty 24 months

Overview

The VG-TF1225 brings tempering in-house for processors whose daily mix is furniture, shower and appliance glass rather than facade jumbos. The shorter chamber heats efficiently at small batch sizes, and the quench recovers quickly between loads, so short runs do not pay a long-line energy penalty.

The operator panel guides loading with a live bed map, warns when spacing is too tight for the selected thickness, and logs each batch against its recipe. Installation needs a standard workshop floor, not a foundation pit, and commissioning typically completes within a week on site.

Request a Quote

Tell us about your application and required quantity. Our engineers reply within one business day.
