A needle applicator lays the formed-in-place gasket bead, and the press closes the lid inside the material open time.
Response within one business day. Include duty point or application details for a faster match.
| Dimensions | 2,600 × 1,850 × 2,200 mm (typical) |
|---|---|
| Compatible Cell Formats | Pack housings per fixture plate; sizes reviewed per project |
| Throughput Range | Typical cycle 90–240 s, depends on bead length |
| Power Supply | 400 V three-phase, 6 kW typical; compressed air 6 bar |
| Control Interface | PLC with touch panel; bead and press recipes |
| Certification | Designed with common safety practices in mind; certification scope agreed per project |
| Warranty | 12 months |

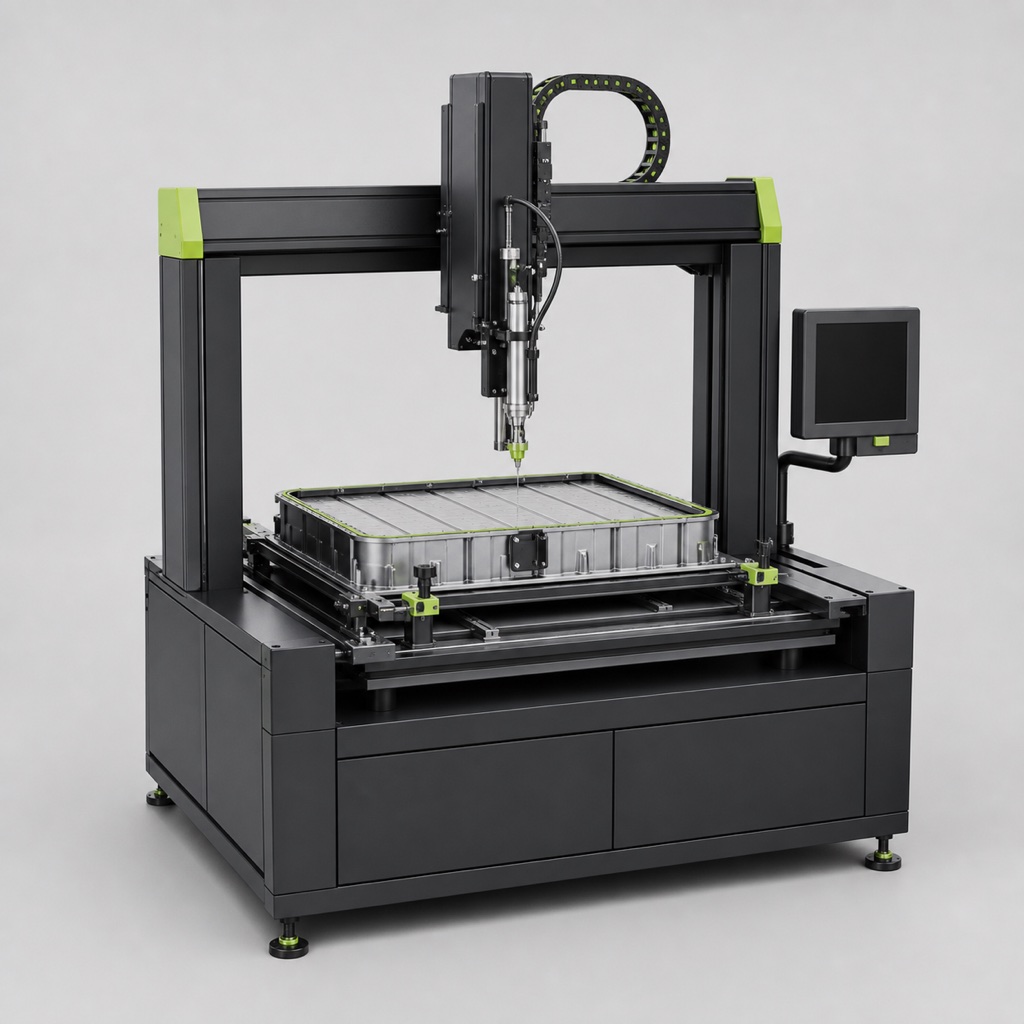

The VF-ES400 dispenses formed-in-place gasket material along the housing flange with a gantry-mounted head, then presses the lid to the programmed closure force. Bead geometry and press profile live in the same recipe, because a seal is one process, not two.
The dispensing head monitors material flow against the programmed path, flagging gaps as they happen rather than at leak test. Press force applies through a self-levelling platen so closure pressure distributes evenly around the flange.
Lid clamp and pressure-decay test head share one carrier, so the housing is never…
