VF-PA360 Automated Fastening Station
Pack Assembly

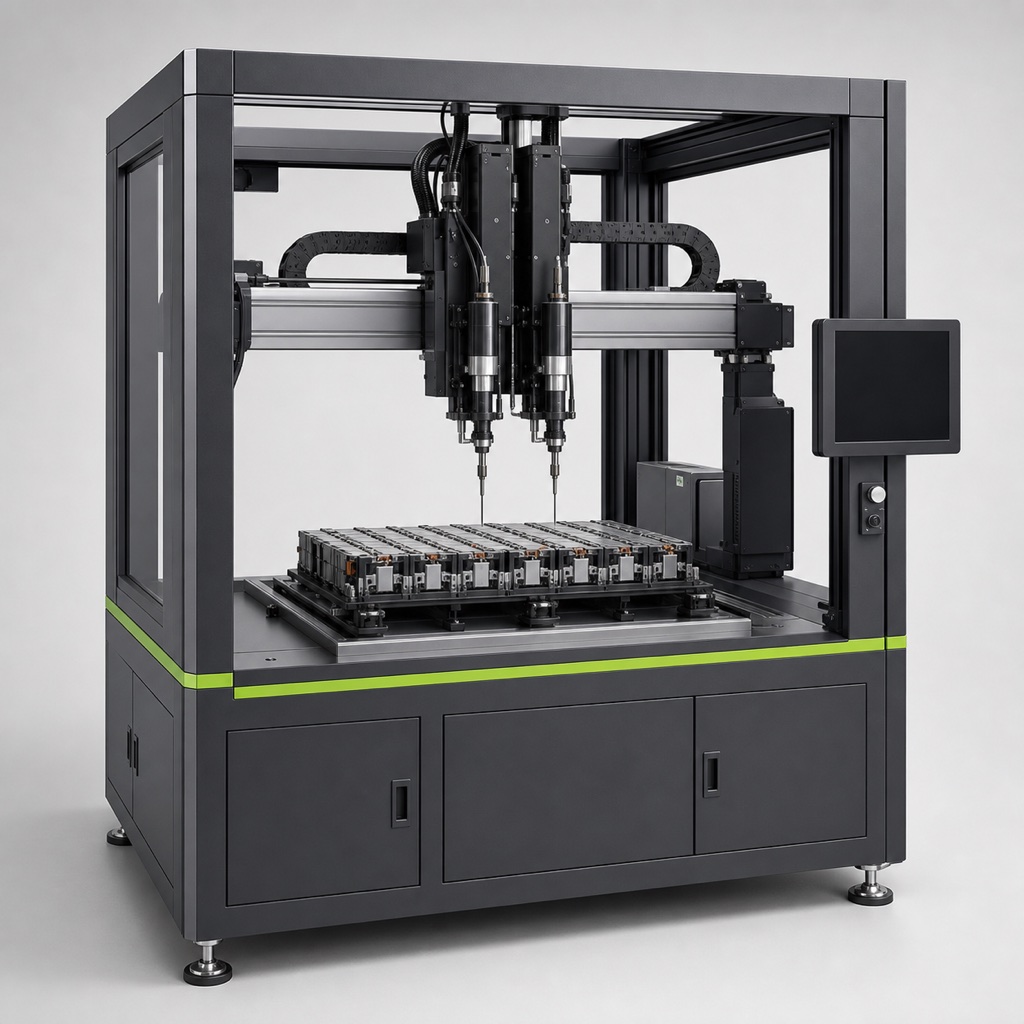

VF-PA360 Automated Fastening Station

Two servo spindles run angle-controlled tightening, and every joint result is stamped against the pack serial.

  • Dimensions2,200 × 1,600 × 2,100 mm (typical)
  • Compatible Cell FormatsPack and module fastening; fixtures per project
  • Throughput RangeTypical 8–20 joints/min, depends on joint spacing
  • Power Supply400 V three-phase, 4 kW typical; compressed air 6 bar
Request a Quote Full Specifications

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions 2,200 × 1,600 × 2,100 mm (typical)
Compatible Cell Formats Pack and module fastening; fixtures per project
Throughput Range Typical 8–20 joints/min, depends on joint spacing
Power Supply 400 V three-phase, 4 kW typical; compressed air 6 bar
Control Interface PLC with touch panel; per-joint torque and angle logging
Certification Designed with common safety practices in mind; certification scope agreed per project
Warranty 12 months

Overview

The VF-PA360 runs programmed fastening sequences with two servo screwdriving spindles on a linear gantry. Every joint gets the torque and angle the sequence defines, and every result is logged against the pack identifier — fastening data becomes part of the pack record, not a hope.

Sequences are edited on the panel: joint positions, torque programs and retry rules per joint class. Bit changes use quick-change chucks, and the feed system presents fasteners oriented and counted so missing-screw states are detected at the source.
