Fixed misting masts for transfer points and plant perimeters.
Response within one business day. Include duty point or application details for a faster match.
| Dimensions | Masts 6,000 mm standard, zones to site layout |
|---|---|
| Feed Opening | Water inlet 1.5 inch, filtered |
| Capacity Range | Typical 8–12 nozzles per mast, coverage per site design |
| Motor Power | 7.5 kW pump skid |
| Weight | From 320 kg per mast |
| Certification | CE machinery directive design basis |
| Warranty | 24 months |

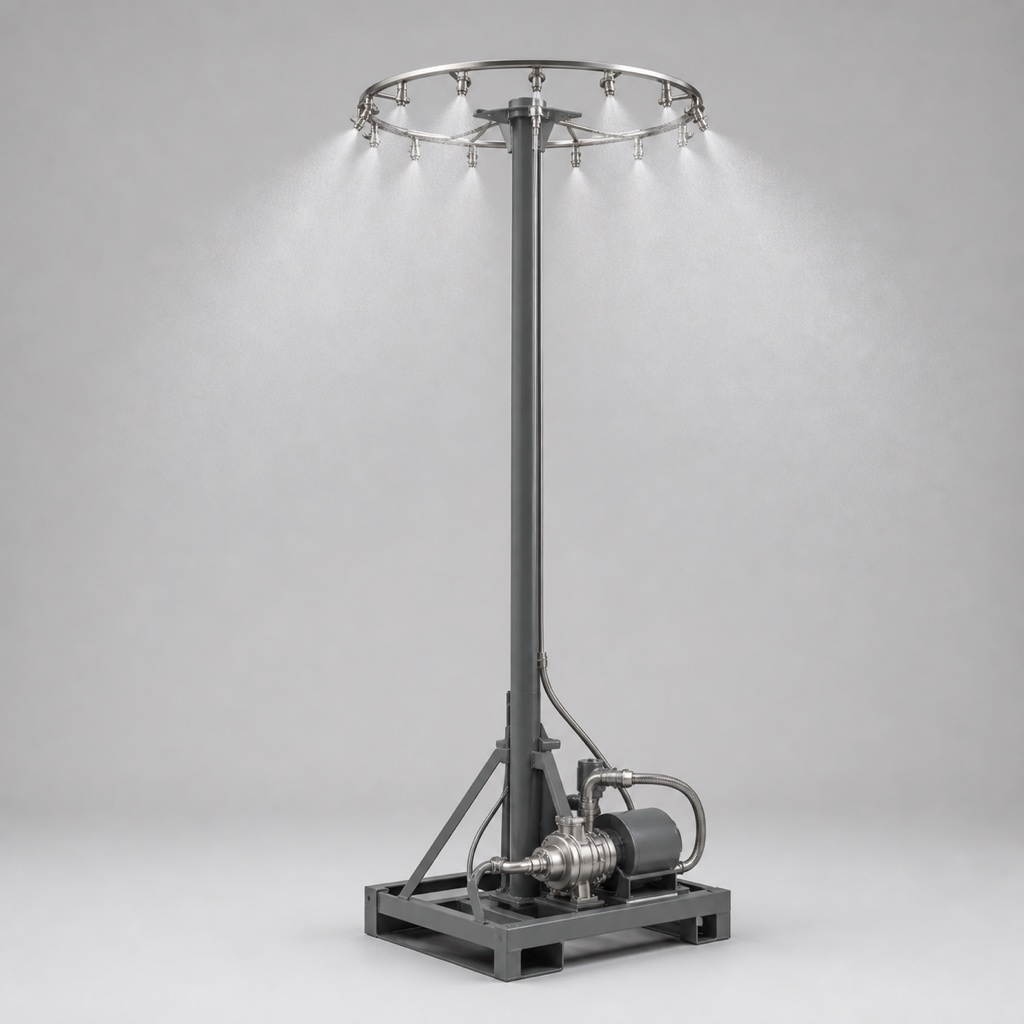

The RS-MS12 is the always-on half of a dust plan: fixed masts with rings of misting nozzles, placed at conveyor transfer points, screen feed boxes and along the plant perimeter. The pump skid holds line pressure so every nozzle atomises properly, and zones switch individually so water goes only where dust is being made.
Nozzles are stainless with ceramic inserts and clean in place with a hand valve sequence described on the skid itself. Winterisation is a drain-down valve per zone.
Mobile fog cannon that knocks down airborne dust over stockpiles and tips.
